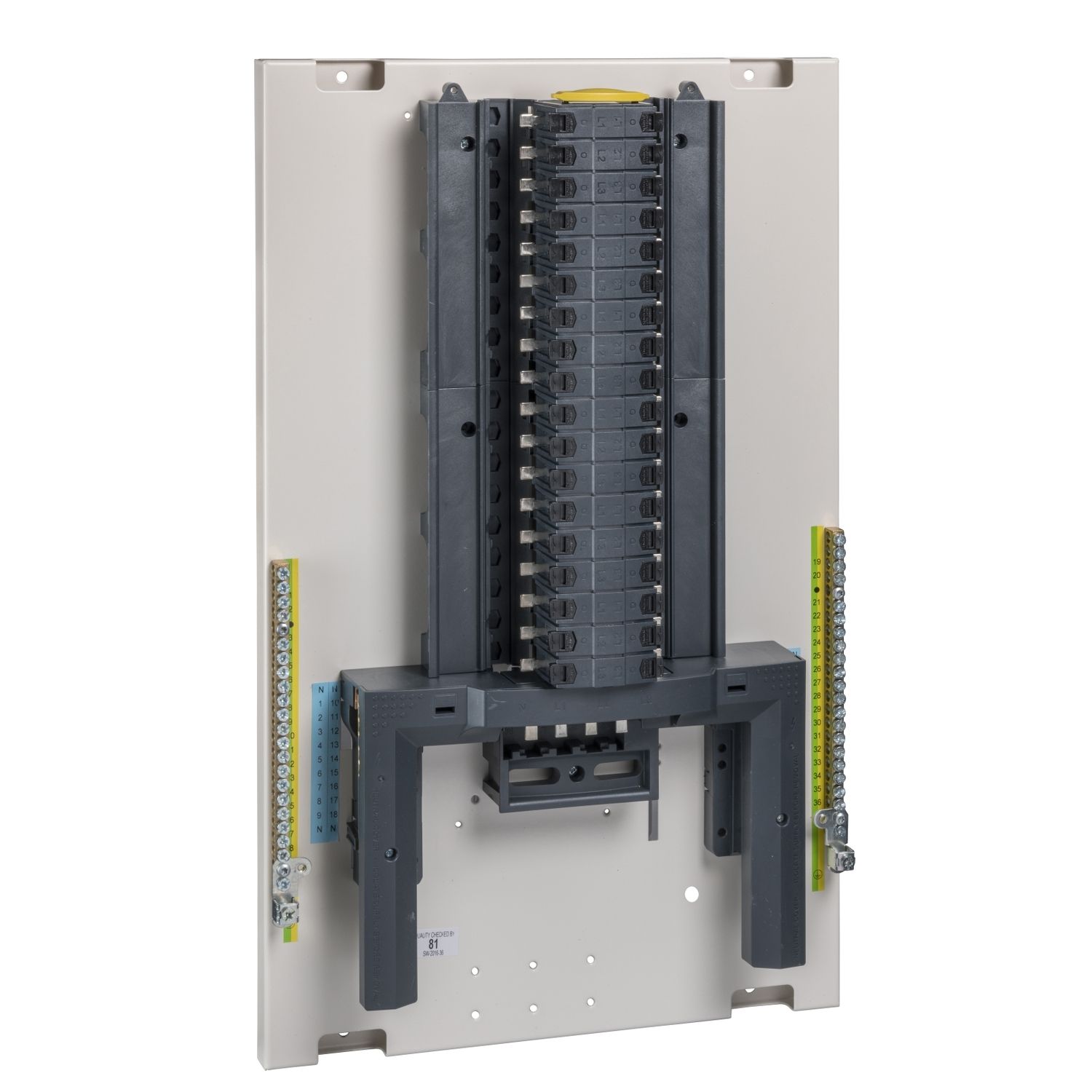

This Acti9 Isobar B product is a pan assembly which can be installed in Acti9 Isobar B distribution board. Distribution board provides 12 outgoing ways. Incomer device options 4P switch disconnector, 3P+N RCCB, 3P+N MCCB and 4P contactor. Protection device options at outgoer residual current circuit breaker with overcurrent protection (RCBO) up to 45A and miniature circuit breaker up to 63A.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Range | Acti9 |
| Product or component type | pan assembly |
| Complementary | |
| Protection device type | miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max |
| Depth | 105 mm |
| Width | 350 mm |
| Incomer device | 4P contactor, 3P + N MCCB, 3P + N RCCB, 4P terminal block, 4P switch disconnector |
| [In] rated current | 250 A |
| Provided equipment | DIN rail, mounting plate, neutral bar, grounding bar |
| Length | 571 mm |
| Range compatibility | Acti 9 Acti9 Isobar B distribution board |
| Number of ways | 1 way (incomer) - 3P + N + E, 12 ways (outgoer) |
