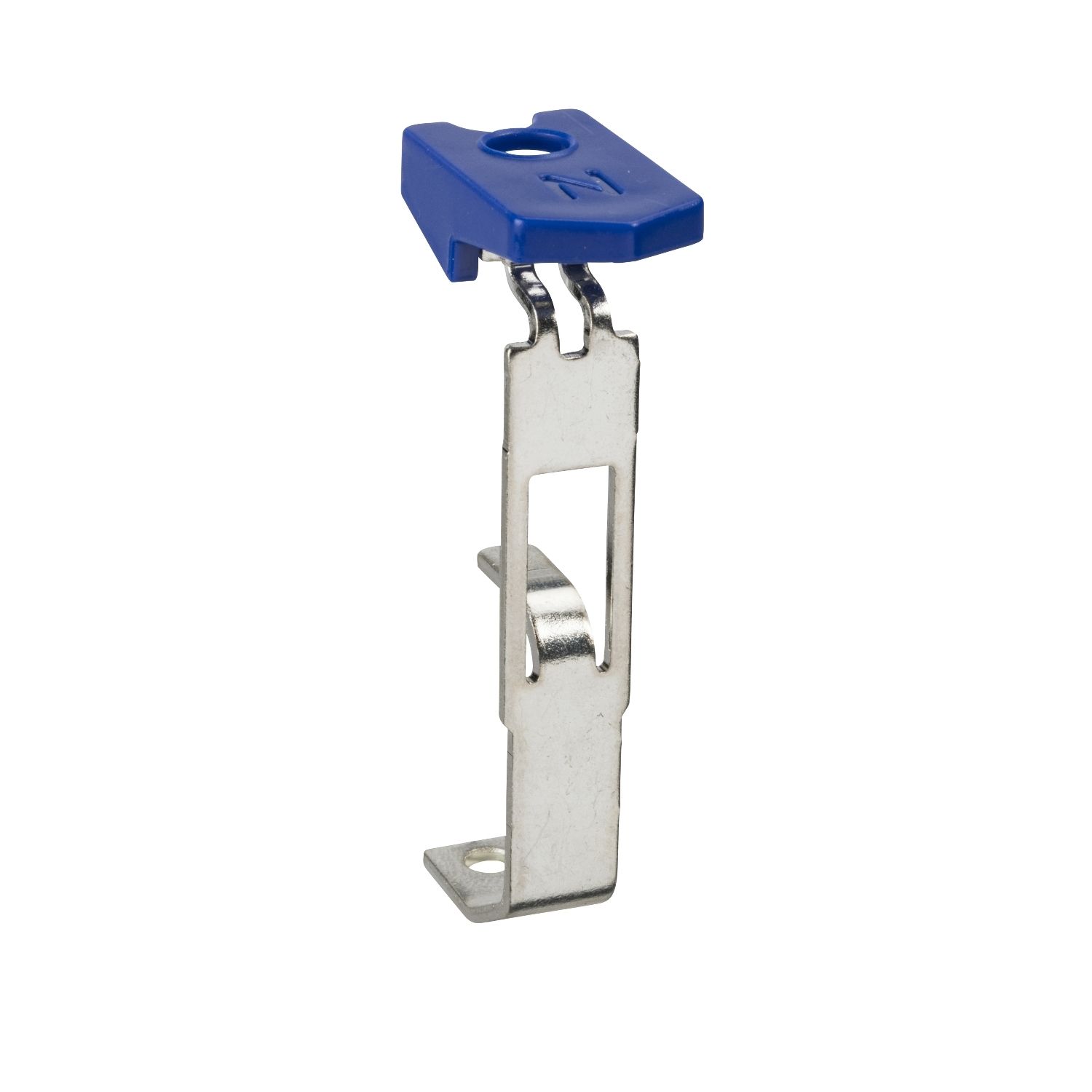

This Acti9 Isobar A accessory is a neutral bar. This neutral bar is dedicated for Acti9 Isobar A distribution board with 4 ways.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Door type | overall |
| Poles description | 3P + N |
| Enclosure material | steel |
| Enclosure mounting | wall mounted |
| Enclosure type | standard |
| Product or component type | neutral bar |
| Surface treatment | epoxy |
| Surface finish | powder paint |
| Range of product | Acti9 |
| Complementary | |
| Colour | white (RAL 9001) |
| [Ie] rated operational current | 250 A at 110 V AC, 250 A at 230/240 V AC |
| Protection device name | iC60H |
| IP degree of protection | IP2X internal conforming to BS EN 60529 |
| Number of ways | 4 ways outgoer |
| Breaking capacity | 25 kA |
| Provided equipment | cover, busbar link 4 , neutral bar |
| Product destination | distribution board |
| IK degree of protection | IK05 conforming to BS EN 60529 |
| Environment | |
| Ambient air temperature for storage | -40-80 °C |
| Standards | BS EN 60439-3 |
| Ambient air temperature for operation | -35-70 °C |
