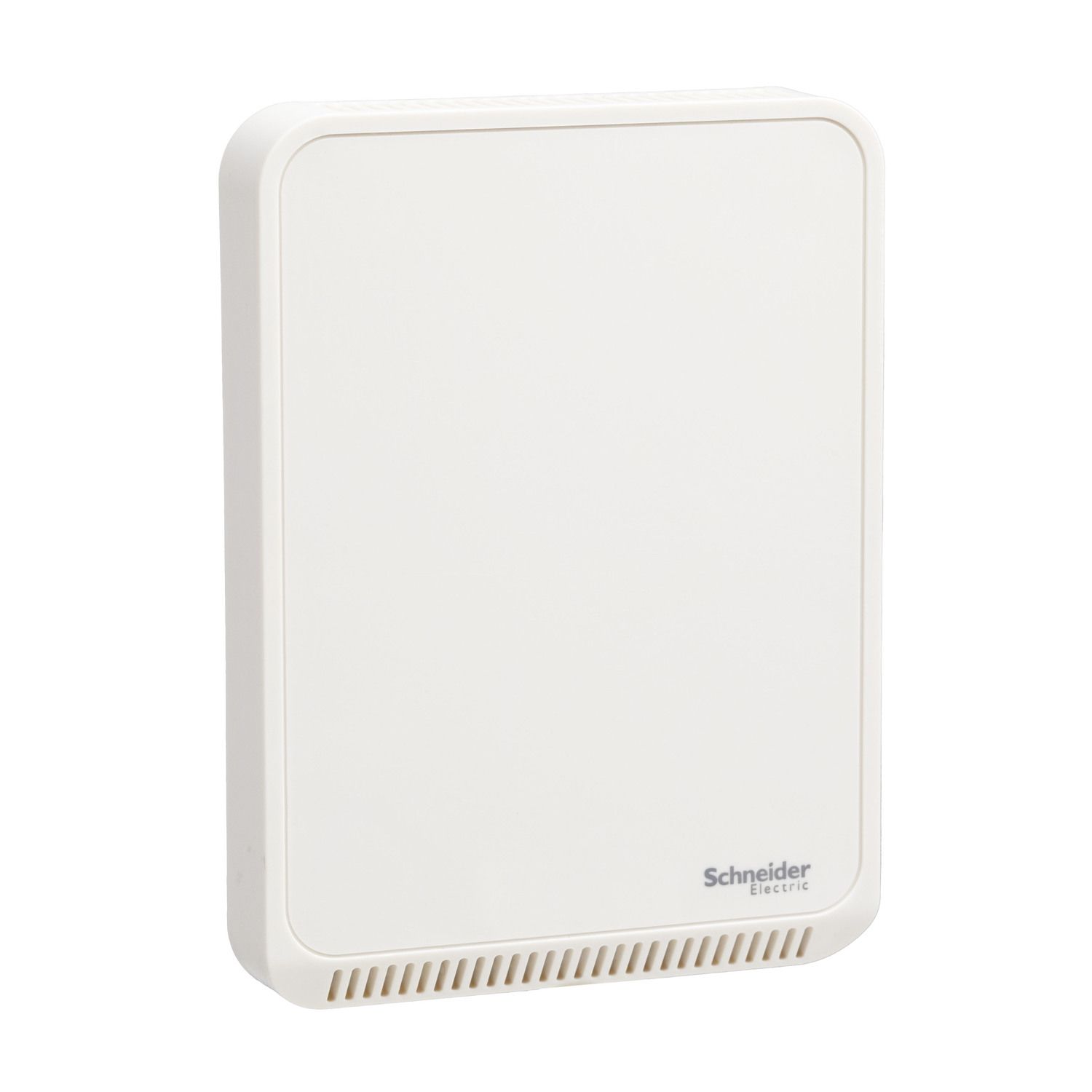

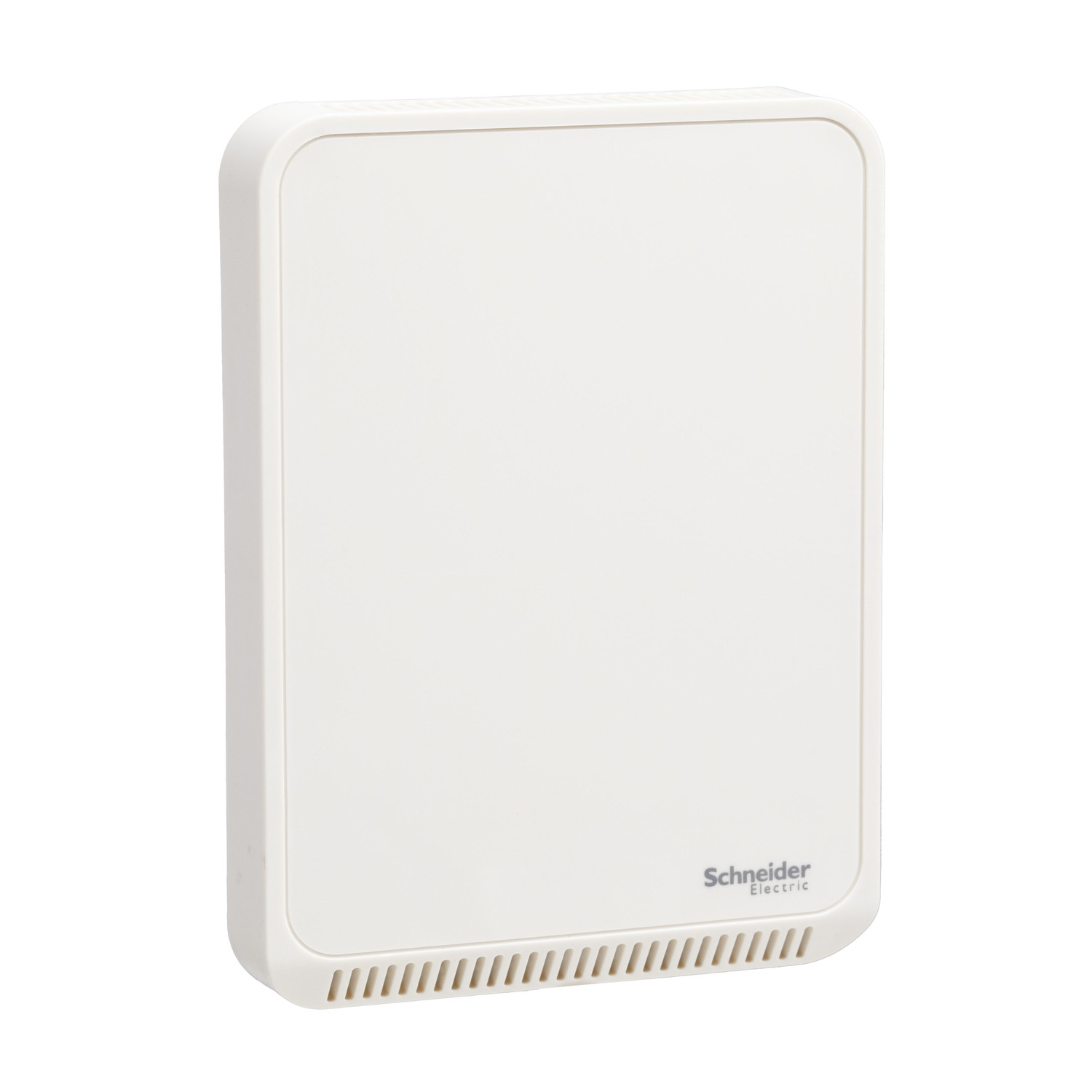

The SpaceLogic SLP Series of air quality wall sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | fan speed controller, temperature control, HVAC |
| Depth | 24 mm |
| Colour | white |
| Display type | without display |
| Width | 115 mm |
| Sensor type | NDIR (non-dispersive infrared), transmitter |
| Communication port protocol | Modbus, BACnet |
| Device presentation | complete product |
| Range | SpaceLogic |
| Location | living space |
| Product name | SpaceLogic Room Unit |
| Product or component type | sensor |
| Type of measurement | temperature, carbon dioxide (CO2) |
| Surface finish | matt |
| Product certifications | cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2 |
| Standards | FCC part 15 class B, UL 916 |
| Mounting support | wall-mount |
| Ambient air temperature for operation | 0-50 °C |
| Height | 85 mm |
| [Us] rated supply voltage | 20...30 V DC, 24 V AC |
| Network frequency | 60 Hz, 50 Hz |
| Complementary | |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Function available | with CO2 sensor, with temperature sensor |
| Connections - terminals | screw terminal - 2 cable(s) (AWG 24...AWG 18) |
| Range compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
| Repeat accuracy | +/- 20 ppm |
| Environment | |
| Temperature setting range | 0-50 °C, 10-35 °C |
