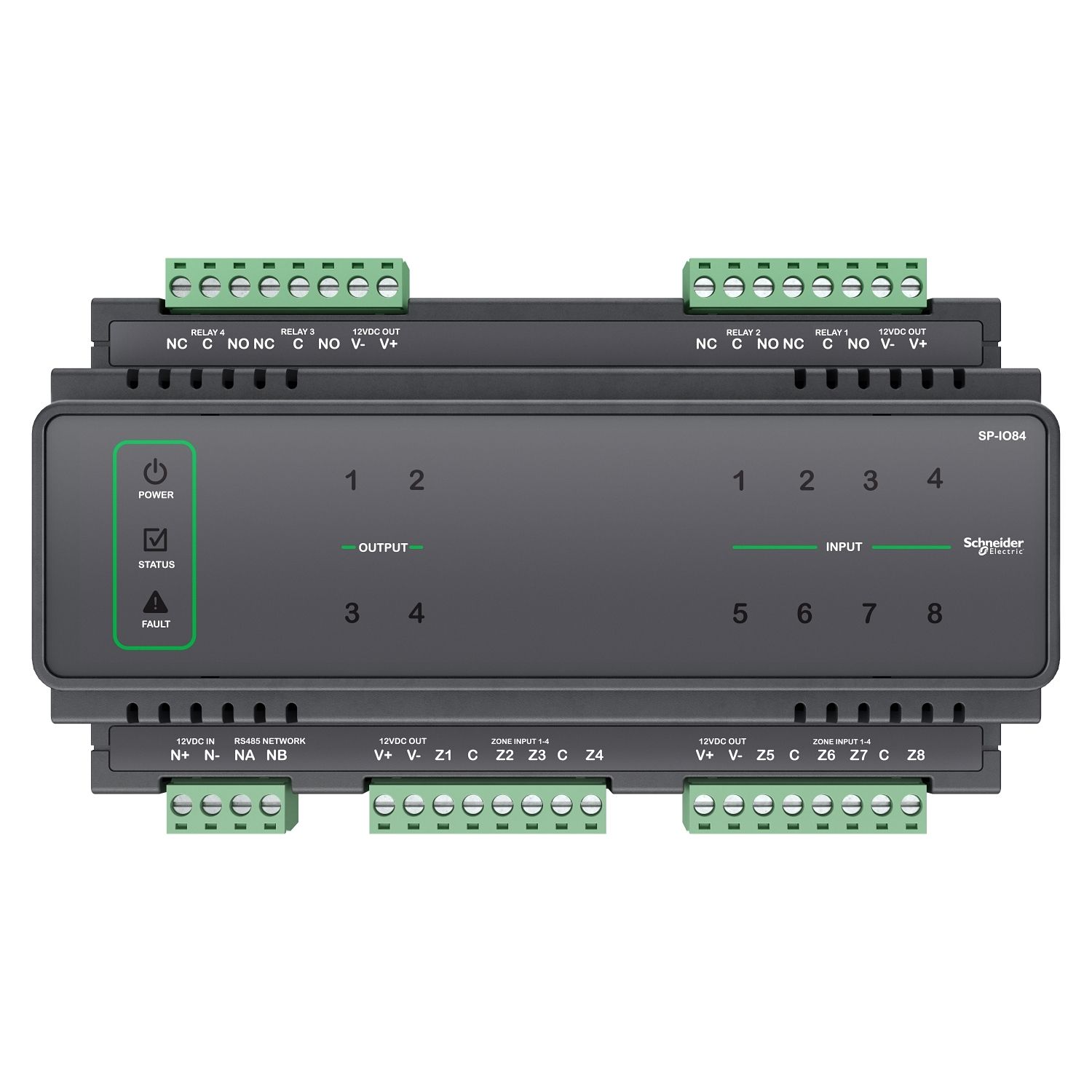

Controller, EcoStruxure Security Expert, security purpose controller
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of port | 2 RS485/Wiegand |
| Device application | air-conditioning, lighting, control |
| Width | 90 mm |
| [In] rated current | 120 mA |
| Product weight | 330 g |
| Relative humidity | 0-93 % non-condensing |
| Output current | <= 50 mA open collector output, <= 7 A form C relay, 1500 mA alarm (inrush), 1.1 A alarm (continuous), 0.7 A auxiliary output |
| Ambient air temperature for storage | -10-85 °C |
| Colour | black |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Function available | firmware update |
| Height | 60 mm |
| Range | EcoStruxure Security Expert |
| Number of inputs | 18 discrete |
| Product or component type | controller |
| Ambient air temperature for operation | 0-50 °C |
| Number of outputs | 1 alarm output, 2 auxiliary output, 4 open collector NPN output, 2 form C relay output |
| [Us] rated supply voltage | 11...14 V DC |
| Product certifications | RCM, ACMA, CE |
| Complementary | |
| Supply | power supply |
| Load type | resistive load for relay output, inductive load for relay output |
| Integrated connection type | Ethernet, modem, RS485 |
| Processor name | CPU RISC 32-bit 2 GB |
| Length | 156 mm |
| Maximum output current | 1.6 A, alarm output, 1.1 A, auxiliary output |
| Local signalling | 8 green/red LED, input status, 2 red LED, relay ON, 1 green LED, buzzer, 2 red LED, reader data, 1 green LED, modem, 1 green LED, ethernet connection, 1 red LED, fault, 1 green LED, status, 1 green LED, power |
| Number of alarms | 100 alarm areas |
| Communication port protocol | UDP/IP 10/100 Mbit/s |
| Standards | CAN/ULC-S319-05, FCC CFR 47 part 15: class A, CAN/ULC-S559-04, CAN/ULC-S304-06, UL 1610, UL 294, ICES-003: class A, EN 50131-6:2008, EN 50131-3:2009, EN 50131-1:2006 |
| Mounting support | DIN rail |
| Encryption protocol | AES (Advanced Encryption Standard) conforming to NIST |
| Discrete input type | reader input, high security monitored input |
| Product brand | Schneider Electric |
| Environment | |
| Environmental characteristic | indoor use |
| Output voltage | 9 V DC |
