Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | external |
| Device short name | BA |

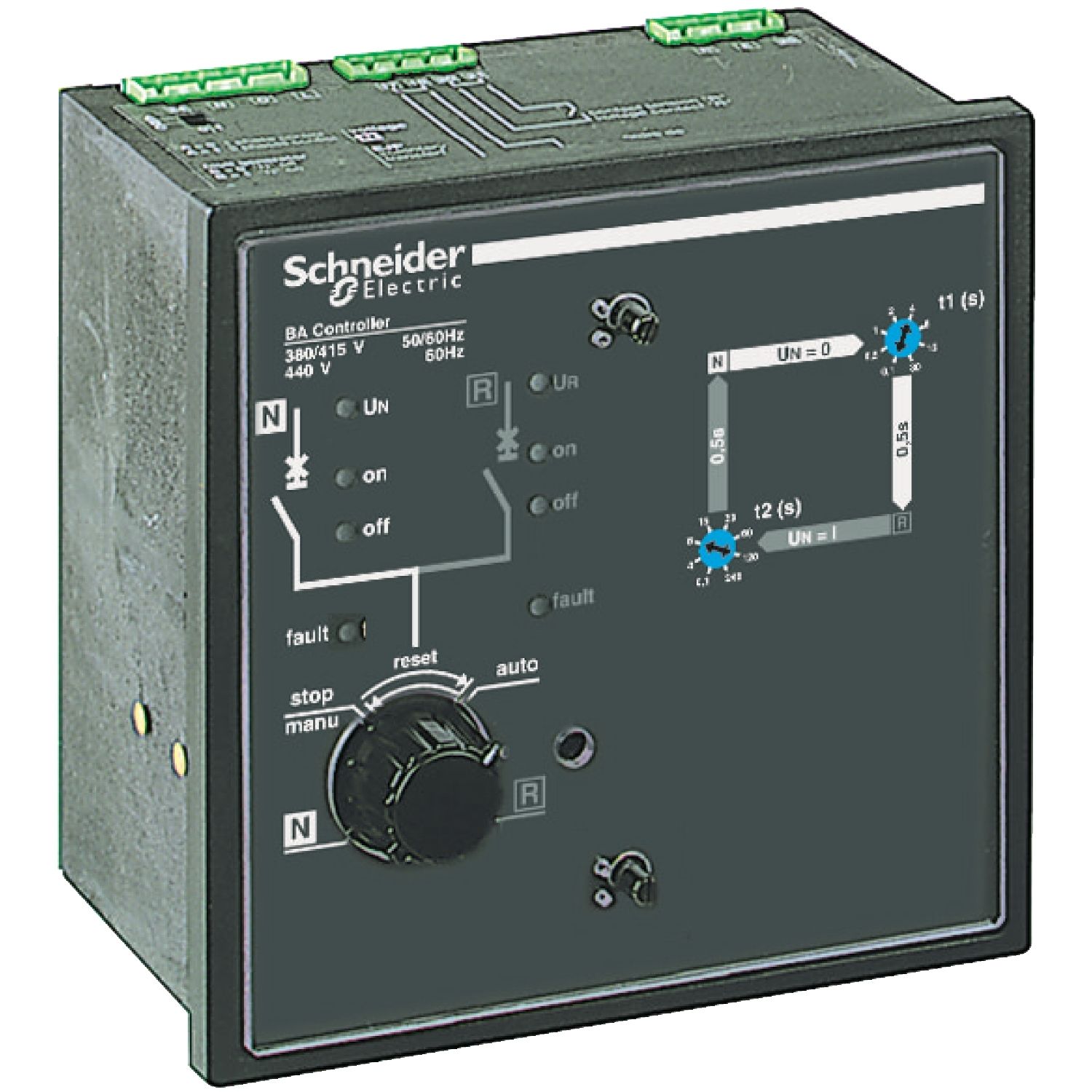

| Product name | BA |
| Product or component type | automatic controller |
| Range compatibility | MasterPact NT |
| Range of product | MasterPact NW |
| Complementary | |
| [Us] rated supply voltage | 380...415 V AC at 50/60 Hz |
| Local signalling | off, fault trip, on |
| Test function | by opening the P25M circuit breaker supplying the controller |
| Input type | contacts customer voluntary order to transfer to source R |
| Compatibility code | BA |
| [Ie] rated operational current | DC-13: 2 A 24 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V |
| Complementary function | voluntary transfer to replacement source (e.g. energy management commands), additional contact: transfer to replacement source only if contact is closed |
| [Ith] conventional free air thermal current | 8 A |
| Selection modes | circuit breaker on R, circuit breaker on N |
| Output type | contacts customer: indication of operation in automatic or stop mode |
| Interlocked device | MasterPact NT, MasterPact NW |
| Environment | |
| Net weight | 1.25 kg |
| IP degree of protection | IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529 |
| Standards | IEC 947-5-1 |
| IK degree of protection | front: IK07 conforming to EN 50102 |
