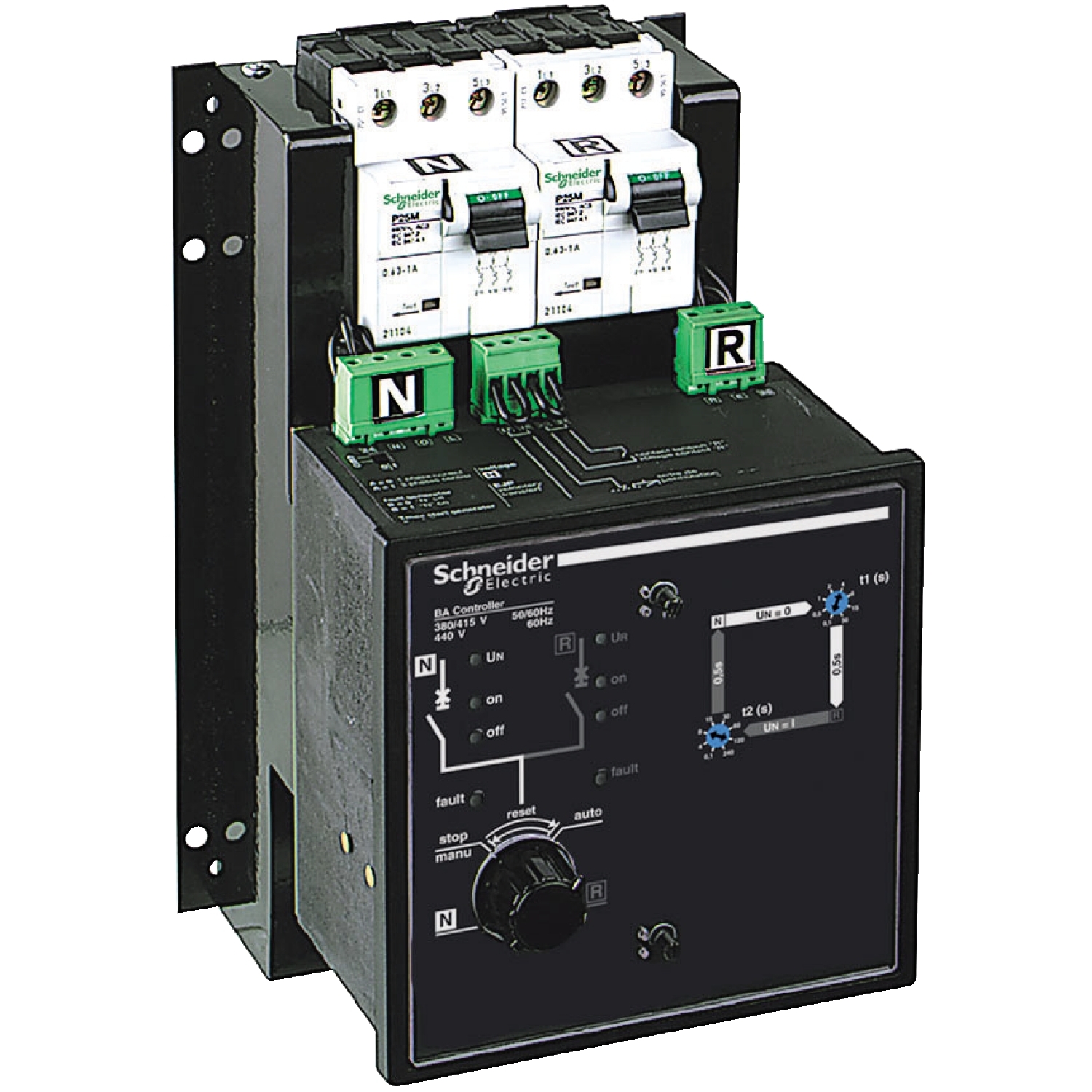

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 110...127 V AC at 50/60 Hz |
| Device short name | ACP + UA |
| Range compatibility | MasterPact NT |
| Mounting location | external |
| Net weight | 2.01 kg |
| Product or component type | automatic controller |
| Accessory / separate part category | interlocking accessory |
| Range of product | MasterPact NW |
| Complementary | |
| Local signalling | on, fault trip, off |
| Test function | by pressing the test button on the front of the controller |
| Input type | contacts customer voluntary order to transfer to source R |
| [Ie] rated operational current | DC-12: 8 A DC 24 V, DC-12: 0.6 A DC 110 V, DC-12: 0.4 A DC 250 V, AC-15: 5 A AC 24 V, AC-14: 5 A AC 48 V, AC-13: 7 A AC 48 V, AC-13: 6 A AC 220/240 V, AC-12: 8 A AC 48 V, AC-12: 8 A AC 24 V, AC-12: 4 A AC 440 V, DC-12: 2 A DC 48 V, AC-15: 5 A AC 48 V, AC-14: 5 A AC 24 V, AC-14: 4 A AC 220/240 V, AC-13: 6 A AC 110 V, DC-13: 2 A 24 V, AC-15: 4 A AC 110 V, AC-15: 3 A AC 220/240 V, AC-14: 4 A AC 110 V, AC-13: 7 A AC 24 V, AC-12: 8 A AC 220/240 V, AC-12: 8 A AC 110 V, AC-12: 5 A AC 380/415 V |
| Selection modes | circuit breaker on R, circuit breaker on N |
| Output type | contacts customer: indication of operation in automatic or stop mode |
| Operating mode | automatic operation, forced operation on replacement source, forced operation on normal source, stop (both normal and replacement source off) |
| Complementary function | voluntary transfer to replacement source (e.g. energy management commands), selection of type of normal source (single-phase or three-phase), forced normal source if replacement source not operational during peak-tariff, setting of maximum startup time for the replacement source, additional contact: transfer to replacement source only if contact is closed |
| [Ith] conventional free air thermal current | 8 A |
| Interlocked device | MasterPact NT, MasterPact NW |
| Environment | |
| IP degree of protection | IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529 |
| Standards | IEC 947-5-1 |
| IK degree of protection | front: IK07 conforming to EN 50102 |
