Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | frame |
| Trip unit technology | electronic |
| Device application | distribution |
| Product name | MicroLogic |
| Product or component type | protection components |
| Range compatibility | MasterPact NT |
| Protected poles description | 3t + N/2, 3t, 4t |
| Poles description | 3P, 4P |
| Offer type | spare part |
| Network type | AC |
| Trip unit protection functions | basic protection |
| Range of product | MasterPact NW |
| Mounting mode | drawout, fixed |

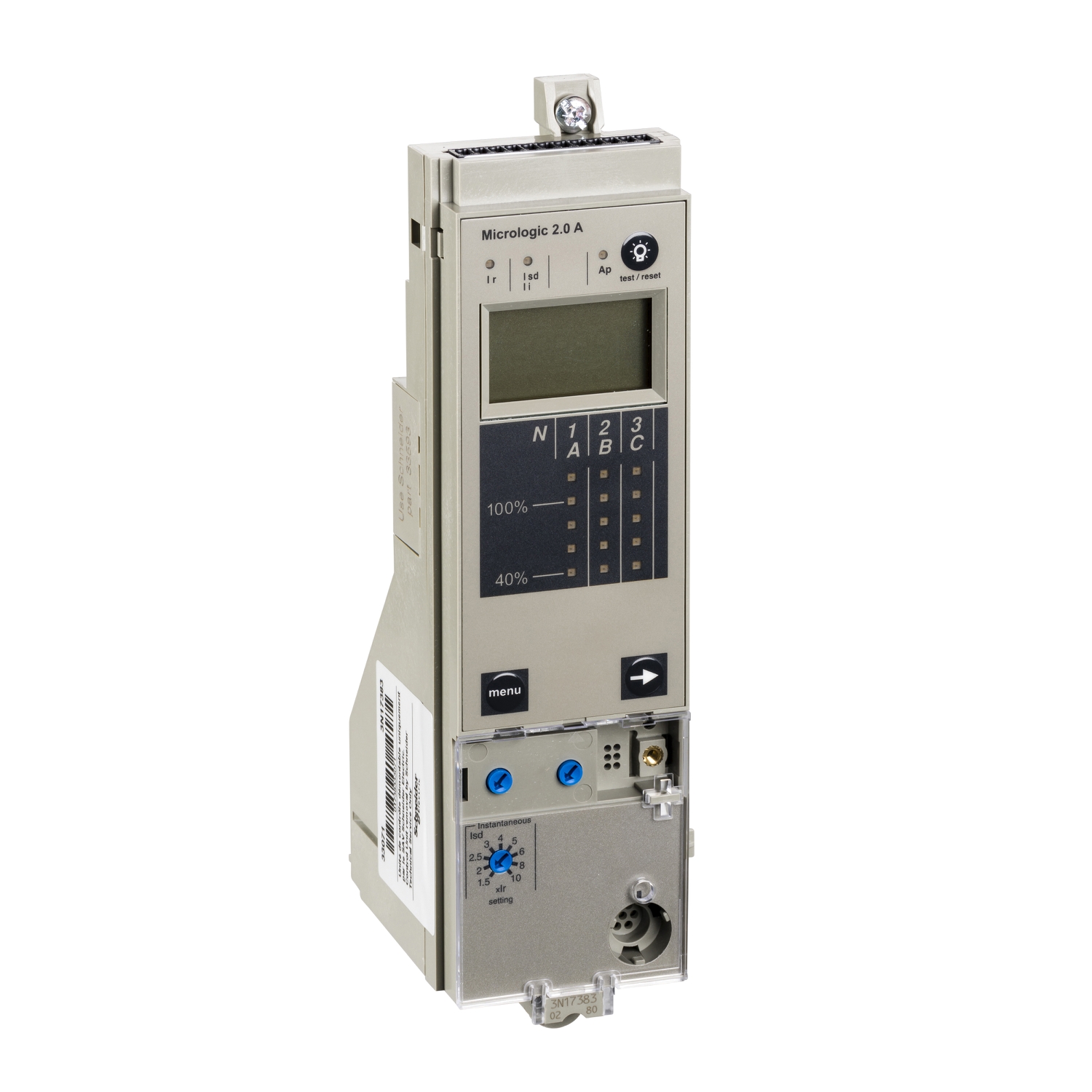

| Trip unit name | MicroLogic 2.0 A |
| Network frequency | 50/60 Hz |
| Complementary | |
| Zone selective interlocking ZSI | without |
| Instantaneous pick-up adjustment type Ii | adjustable 9 settings |
| Long time delay adjustment type | adjustable 9 settings |
| Communication of data | protection and alarm settings, measurement readout |
| Display type | digital display |
| Type of measurement | ammeter |
| Earth-leakage protection | without |
| Thermal memory | 20 mn |
| Long time pick-up adjustment type Ir | adjustable 9 settings |
| Long time pick-up adjustment range | 0.4...1 x In |
| [tr] long-time delay adjustment range | 12.5-600 s at 1.5 x Ir, 0.7-24 s at 6 x Ir, 0.7-16.6 s at 7.2 x Ir |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-70 °C |
