Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | operating mechanism |

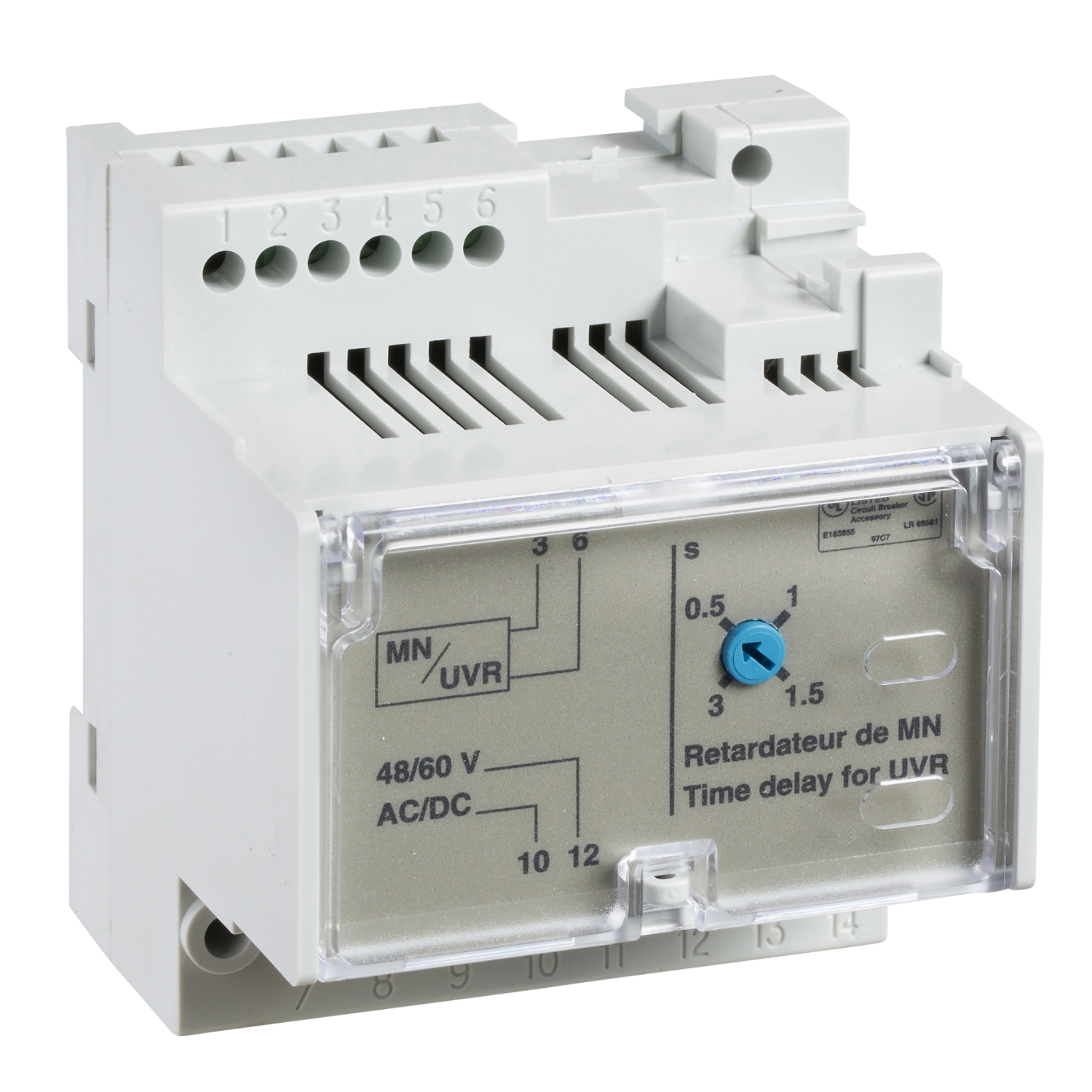

| Device short name | MN delay unit |
| Net weight | 0.2 kg |
| Device application | control |
| Product or component type | time delay |
| Range compatibility | MasterPact NT |
| Voltage release type | undervoltage release |
| Range of product | MasterPact NW |
| [Uc] control circuit voltage | 48...60 V DC, 48...60 V AC 50/60 Hz |
| Complementary | |
| Supply inrush power | 200 VA |
| Threshold tripping voltage | 0.85 Un close, 0.35...0.7 Un open |
| Response time | 3 s, 1.5 s, 1 s, 0.5 s |
| Supply holding power | 4.5 VA |
| Mounting mode | external mounting |
| Time delay range | 0.5...3 s |
| Impulse duration | 200 ms |
