Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | frame |
| Trip unit technology | electronic |
| Device application | distribution |
| Product name | MicroLogic |
| Product or component type | protection components |
| Range compatibility | MasterPact NT |
| Protected poles description | 3t + N/2, 3t, 4t |
| Poles description | 4P, 3P |
| Offer type | spare part |
| Network type | AC |
| Trip unit protection functions | selective + earth-fault protection |
| Range of product | MasterPact NW |
| Mounting mode | drawout, fixed |

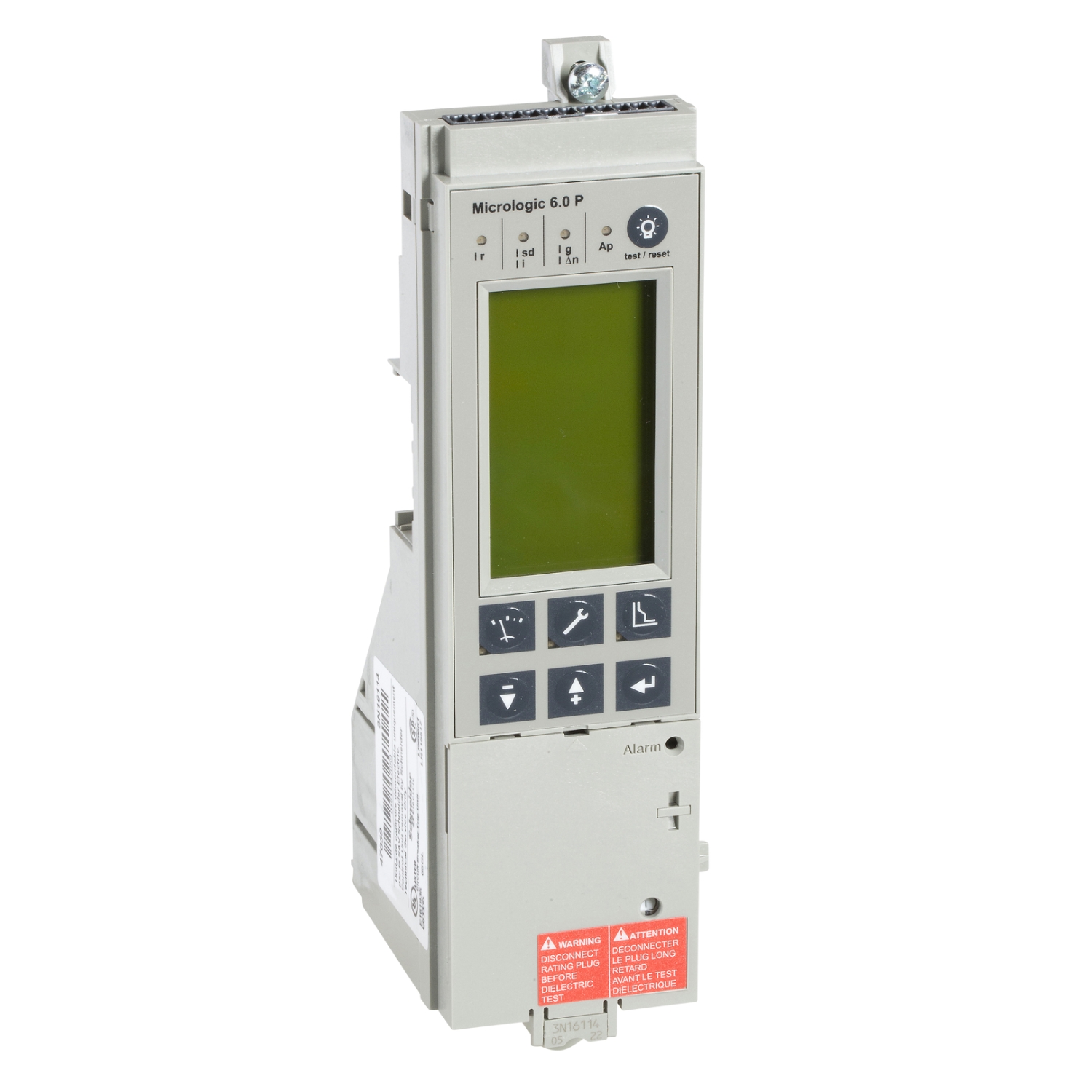

| Trip unit name | MicroLogic 6.0 P |
| Network frequency | 50/60 Hz |
| Complementary | |
| Short-time pick-up adjustment type Isd | adjustable 9 settings |
| Zone selective interlocking ZSI | with |
| Instantaneous pick-up adjustment type Ii | adjustable 9 settings |
| Long time delay adjustment type | adjustable 9 settings |
| Communication of data | maintenance indicators, protection and alarm settings, measurement readout |
| Display type | digital display |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir |
| Type of measurement | power meter |
| Ground-fault pick-up adjustment type | adjustable 9 settings |
| Ground-fault time delay adjustment type -tg | adjustable |
| Earth-leakage protection | without |
| Thermal memory | 20 mn |
| [tsd] short-time delay adjustment range | 0.1-0.4 s I²t=on, 0-0.4 s I²t=off |
| [Ig] ground-fault pick-up adjustment range | 500...1200 A for In >= 1250 A, 0.3...1 x In for In <= 400 A, 0.2...1 x In for 400 A < In < 1250 A |
| Long time pick-up adjustment type Ir | adjustable 9 settings |
| Long time pick-up adjustment range | 0.4...1 x In |
| Short-time delay adjustment type | adjustable |
| [tg] Ground-fault time delay adjustment range | 0.1-0.4 s I²t=on, 0-0.4 s I²t=off |
| [tr] long-time delay adjustment range | 12.5-600 s at 1.5 x Ir, 0.7-24 s at 6 x Ir, 0.7-16.6 s at 7.2 x Ir |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-70 °C |
