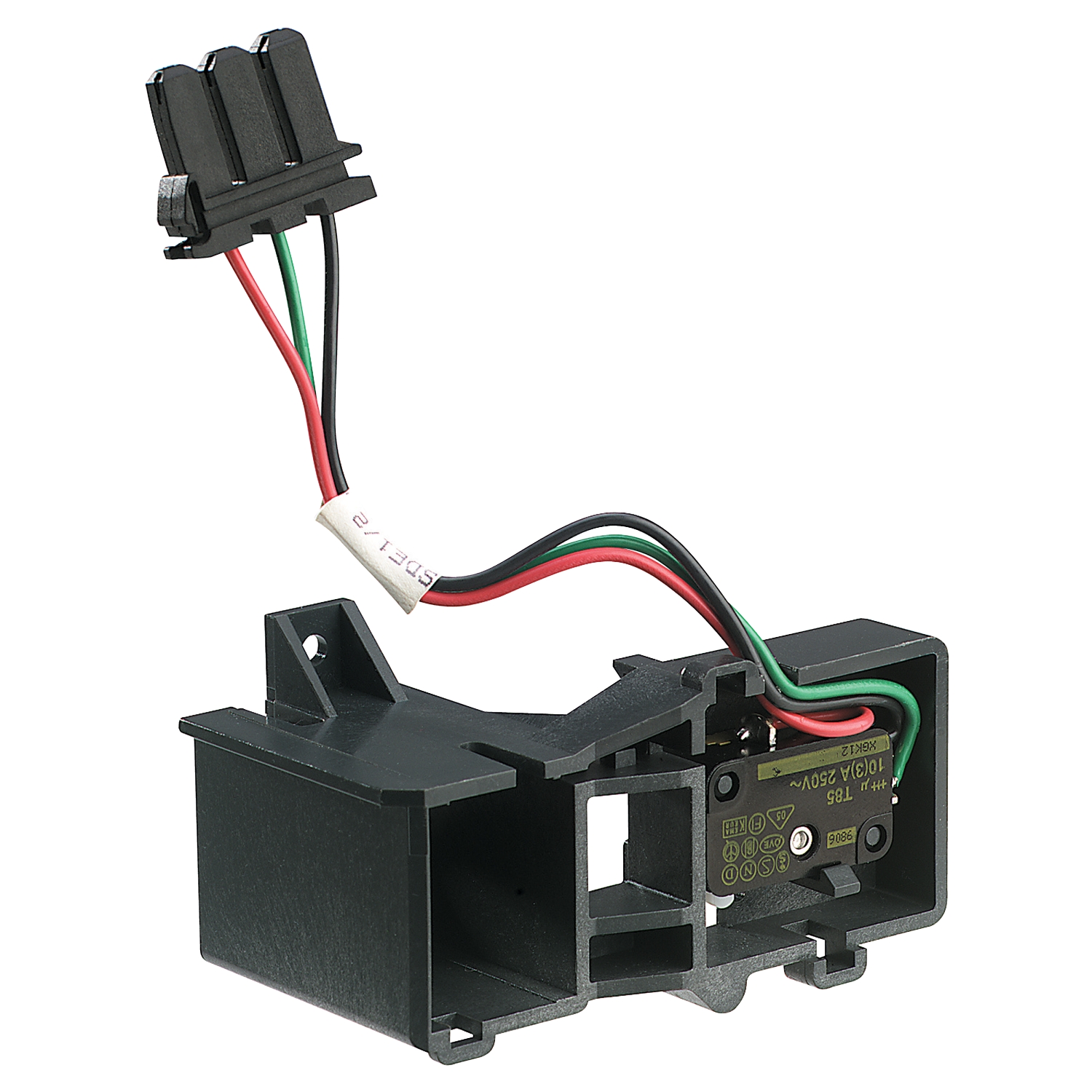

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Signal contacts composition | 1 NO/NC |
| Mounting location | operating mechanism |
| Device short name | SDE |
| Device application | connection |
| Product or component type | auxiliary contact |
| Range compatibility | MasterPact NW |
| Range of product | MasterPact NW |
| Complementary | |
| Minimum load | 100 mA at 24 V |
| [Ith] conventional free air thermal current | 6 A |
| [Ie] rated operational current | DC-12: 0.3 A at 125 V DC, DC-12: 0.15 A at 250 V DC, AC-12: 5 A at 480 V AC 50/60 Hz, AC-12: 5 A at 240/380 V AC 50/60 Hz, DC-12: 3 A at 24/48 V DC, AC-12: 3 A at 690 V AC 50/60 Hz |
| Auxiliary contacts type | standard |
