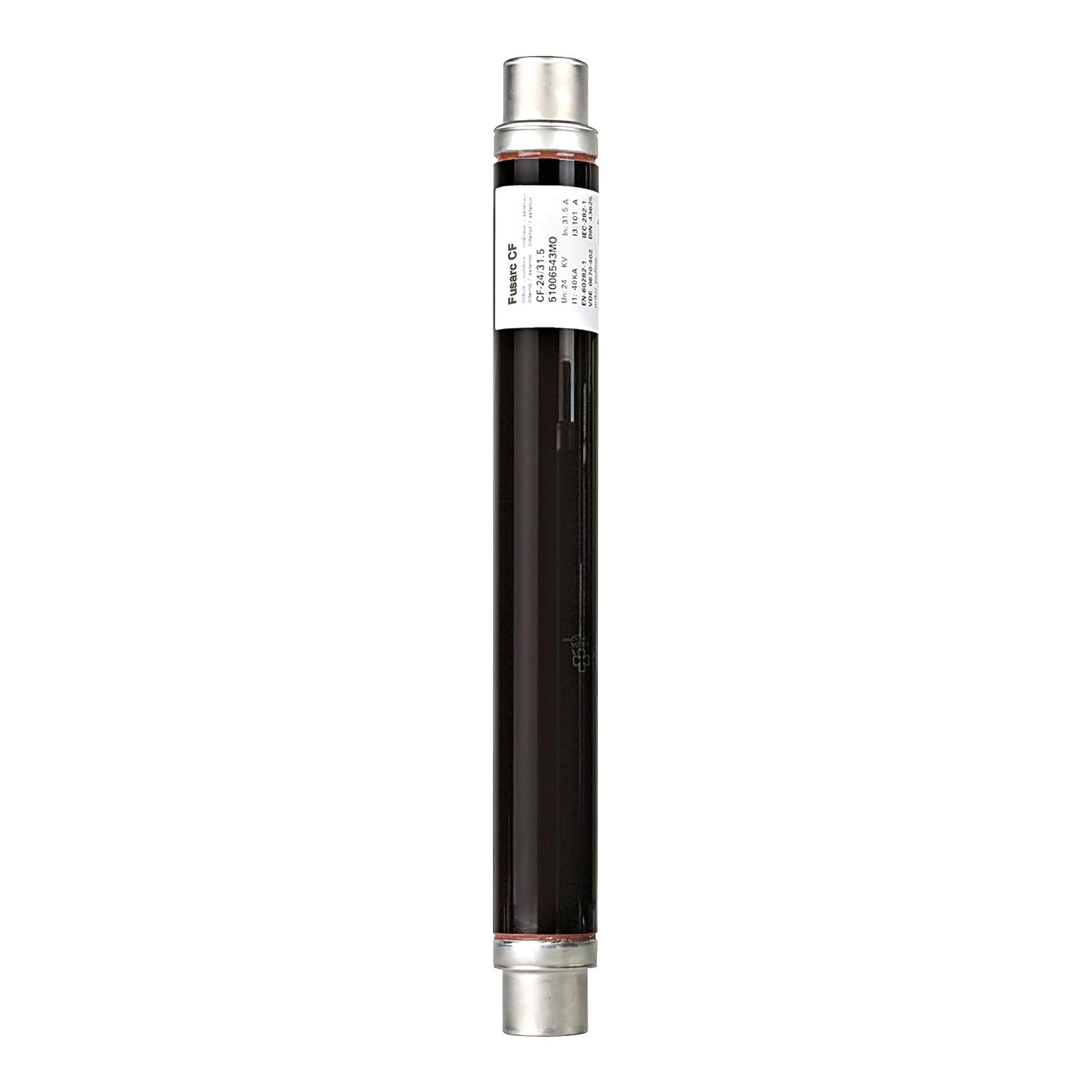

This product is a spare part for your SM6-24. This 6.3A, 24kV fuse is the original part designed for your cubicle. Usage of a certified spare part for your SM6-24 extends the lifetime of your product and prevents it from unexpected failures.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | RM6 cubicle, SM6-24 cubicle |
| Range compatibility | RM6, SM6-24 |
| Local signalling | striker |
| Mounting location | MV connection compartment |
| Product or component type | fuse |
| Range of product | Fusarc CF |
| Complementary | |
| [Ue] rated operational voltage | 10...24 kV |
| Maximum discharge current | 40 kA |
| [In] rated current | 6.3 A |
| Rated voltage (Ur) | 24-24 kV, 24 kV |
| Power dissipation in W | 25 W |
| Mounting mode | by clips |
| Braking current | 36 A |
| Average resistance | 455 Ohm at 20 °C +/- 10 % |
| Type of installation | indoor/outdoor |
| Net weight | 1.7 kg |
| Material | porcelain |
| Length | 442 mm |
| Protection technology | thermal limiter, current limiter |
| Rated breaking capacity | 6.3 A |
| Condition of use | fuse chamber, in open air, cubicle |
| Diameter | 50.5 mm |
| Product destination | capacitor, power transformer, motor |
| Environment | |
| Standards | VDE 0670-402, DIN 43625, IEC 60787, IEC 60282-1 |
