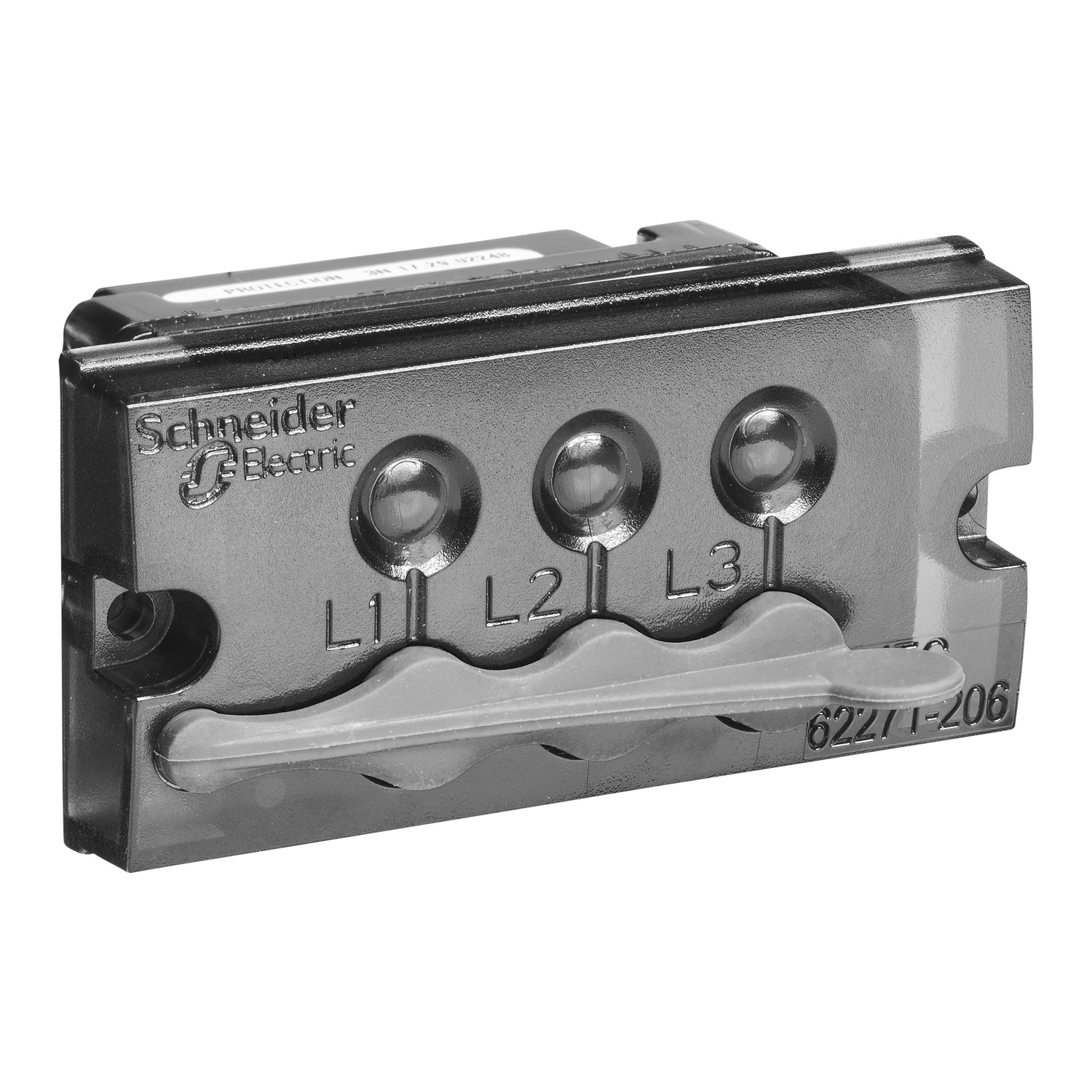

This product is a spare part for your SM6-24. This 32.5muA voltage presence indicator is the original part designed for your cubicle. Usage of a certified spare part for your SM6-24 extends the lifetime of your product and prevents it from unexpected failures.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | operating mechanism |
| Device short name | VPIS V2 |
| Product or component type | voltage presence indicator |
| Range compatibility | Easergy, SM6-24 |
| Standards | IEC 62271-206 |
| Range of product | SM6-24 |
| Mounting mode | flush-mounted |
| Screw type | M3 |
| Complementary | |
| Net weight | 0.08 kg |
| Product compatibility | VPI62421 |
| Depth | 40 mm |
| Width | 70 mm |
| Cut-out dimensions | 32 x 53 mm |
| Height | 35 mm |
| Bulb type | LED |
| Mechanical robustness | impacts de-energized - 3 impacts in the weakest places conforming to IEC 60068-2-75, impacts de-energized - 2 joules conforming to IEC 61958-1 |
| Environment | |
| Electromagnetic compatibility | immunity to voltage dips: (immunity tests-conducted disturbances), criteria B, 1, conforming to IEC 61000-4-11, magnetic field at power frequency: (immunity tests-radiated disturbances), criteria B, 100 A/m, conforming to IEC 61000-4-8, damped oscillatory wave: (immunity tests-conducted disturbances), criteria B, 1 kV, conforming to IEC 61000-4-18, fast transient bursts: (immunity tests-conducted disturbances), criteria B, 2 kV, conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test: (immunity tests-conducted disturbances), criteria A, 10 V/m, 80 MHz...3 GHz, conforming to IEC 61000-4-3, electrostatic discharge: (immunity tests-radiated disturbances), criteria B, 8 kV air, 6 kV contact, conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-85 °C |
