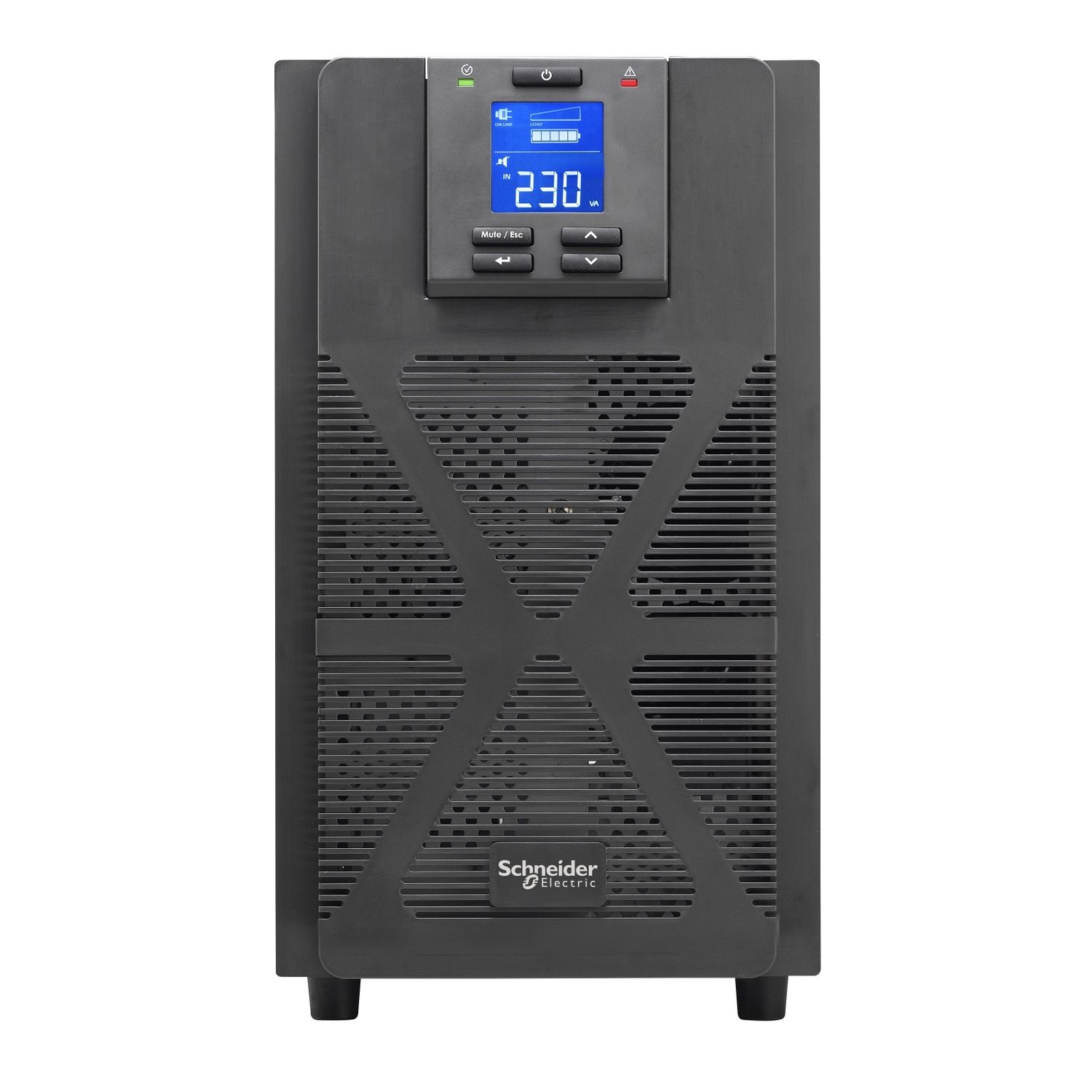

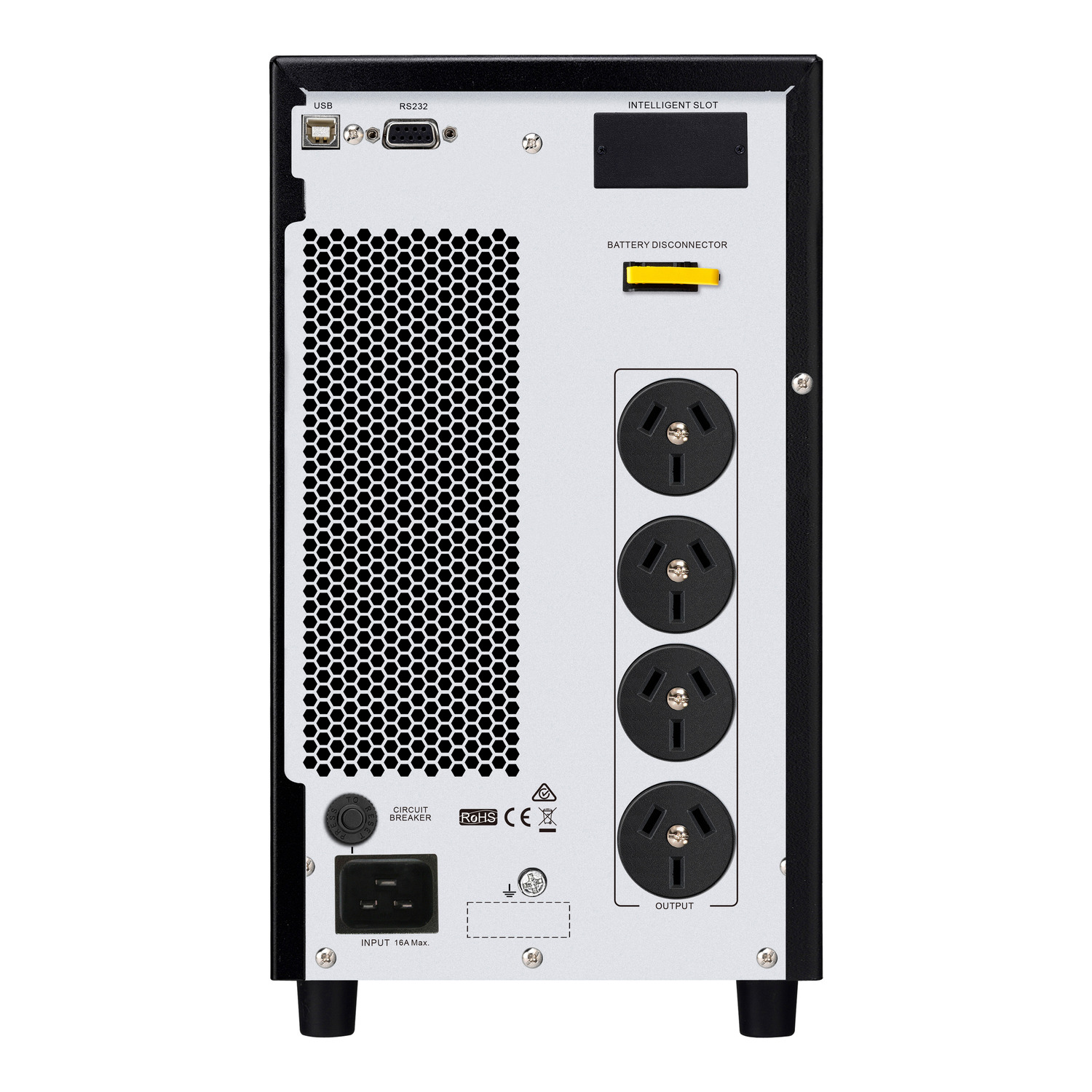

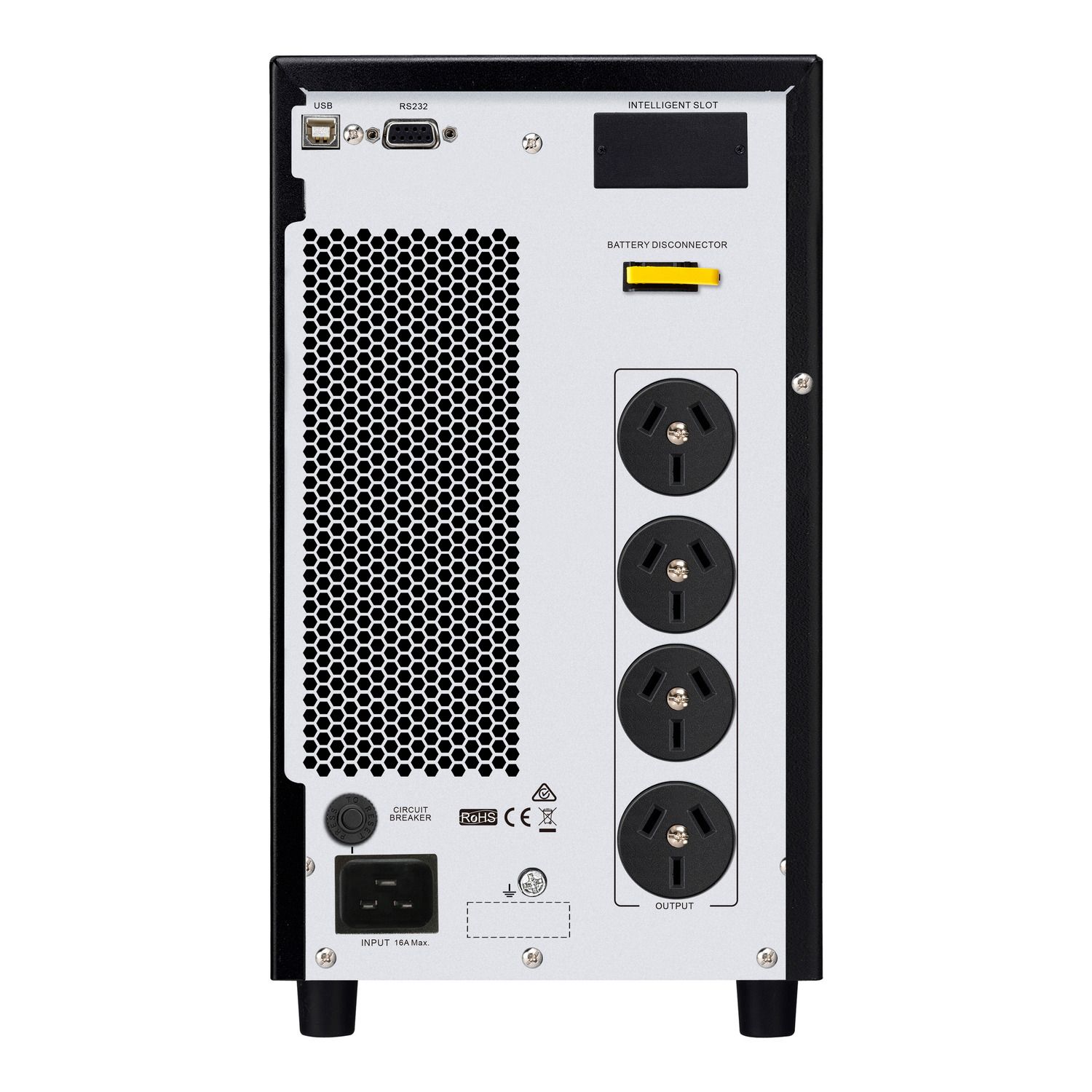

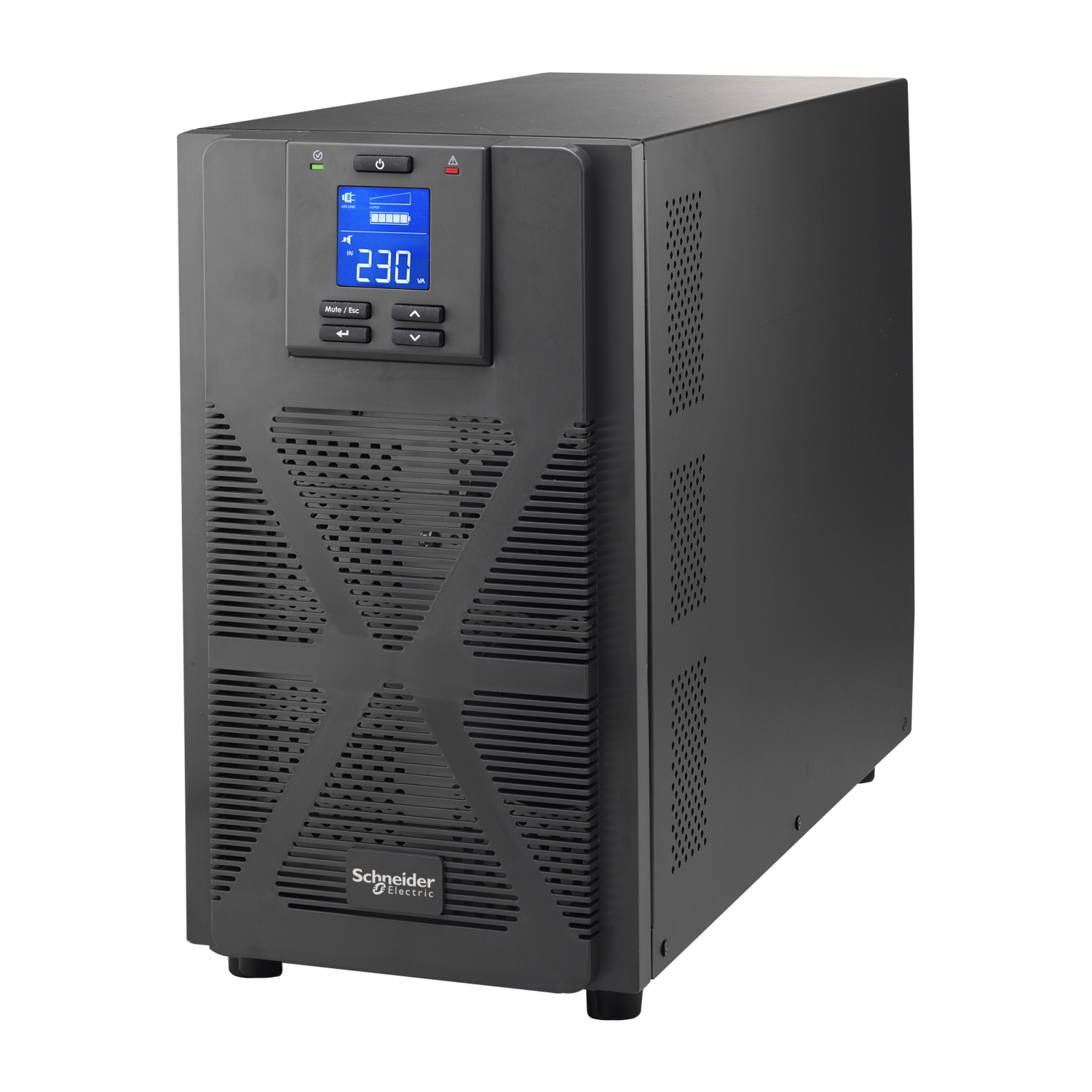

For small to medium businesses, Schneider Electric offers this single phase Easy UPS designed for essential power protection needs even in the most unstable power conditions. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The SRVS comes with IEC 320 C20 input and 4x Australian outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRVS UPS is compatible with replacement battery cartridge APCRBCV205. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Output voltage | 240 V, 220 V |
| Provided equipment | user manual, 1 RS-232 configuration cable, 1 USB cable, 1 IEC 60320 C19 to Australian power cable |
| Rated power in W | 2400 W |
| Main Input Voltage | 230 V |
| Rated power in VA | 3000 VA |
| Product or component type | uninterruptible power supply (UPS) |
| Cable length | 4.86 ft |
| Number of cables | 1 |
| Input voltage | 240 V, 220 V |
| Curve proportional loss | 0.0341 |
| UPS type | double conversion online |
| Output voltage | 230 V |
| Number of tare power | 32 W |
| Curve load minimum | 2 % |
| Number of battery free slots | 0 |
| Curve square loss | 0.0319 |
| Curve X-axis title | load |
| Curve X-axis minimum | 0 % |
| Curve Y-axis maximum | 100 % |
| Curve Y-axis units | percentage |
| Output connection type | 4 Australian |
| Liquid value | 0 |
| Wave type | sine wave |
| Mounting preference | no preference |
| Battery charger power | 118 W rated |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Number of battery filled slots | 0 |
| Surge energy rate | 600 J |
| Curve Y-axis minimum | 50 % |
| Battery power in VAH | 473 VAh runtime |
| Curve fixed loss | 0.0176 |
| Curve X-axis maximum | 100 % |
| Curve X-axis units | percentage |
| Curve load maximum | 100 % |
| Curve test cond ID | Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output. |
| Battery recharge time | 4 h |
| UPS size | WS |
| Number of power module filled slots | 0 |
| Input Connection Type | IEC 60320 C20 |
| Redundant | No |
| Battery curve | D |
| Curve Y-axis title | efficiency |
| Show note OP temperature | No |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2400 W |
| Curve equation | efficiency |
| Number of power module free slots | 0 |
| Environmental | |
| Operating altitude | 0...3000 m |
| Acoustic level | 50 dBA |
| Relative humidity | 0-95 % non-condensing |
| Ambient air temperature for storage | -20-50 °C |
| IP degree of protection | IP20 |
| Storage altitude | 0-15000 m |
| Ambient air temperature for operation | 0-40 °C |
| Storage Relative Humidity | 0-95 % non-condensing |
| Physical | |
| Depth | 42.5 cm |
| Width | 19 cm |
| Colour | black (RAL 7010) |
| Mounting position | vertical |
| Mounting mode | not rack-mountable |
| Mounting location | front |
| Net weight | 26.8 kg |
| USB compatible | No |
| Height | 33.6 cm |
| Input | |
| Input voltage limits | 160...280 V full load, 110...285 V half load |
| Network frequency | 40...70 Hz auto sensing |
| Output | |
| Efficiency | 88 % (full load) |
| Crest factor | 3 : 1 |
| Graph display | 1 |
| Bypass type | internal bypass (automatic and manual) |
| Conformance | |
| Standards | EN/IEC 62040-2:2018, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-1:2019/A11:2021 |
| Product certifications | CE |
| Batteries & Runtime | |
| Battery design life | 2 year(s) |
| Battery type | lead-acid battery |
| Battery voltage | 72 V |
| UPS design life | 3 year(s) |
| Battery life | 3-5 year(s) |
| Communications & Management | |
| Control panel | multifunction LCD status and control console |
| Free slots | 1 |
