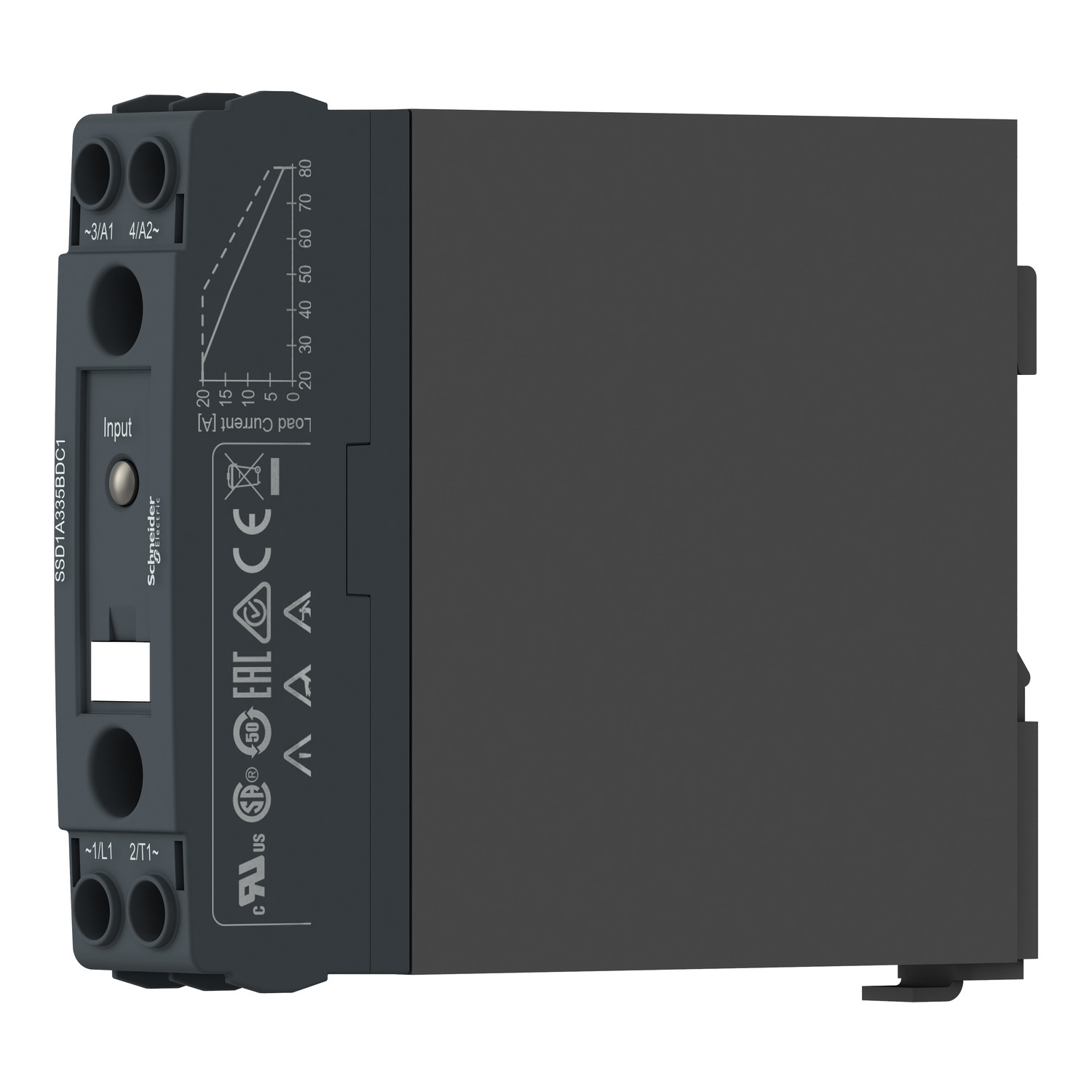

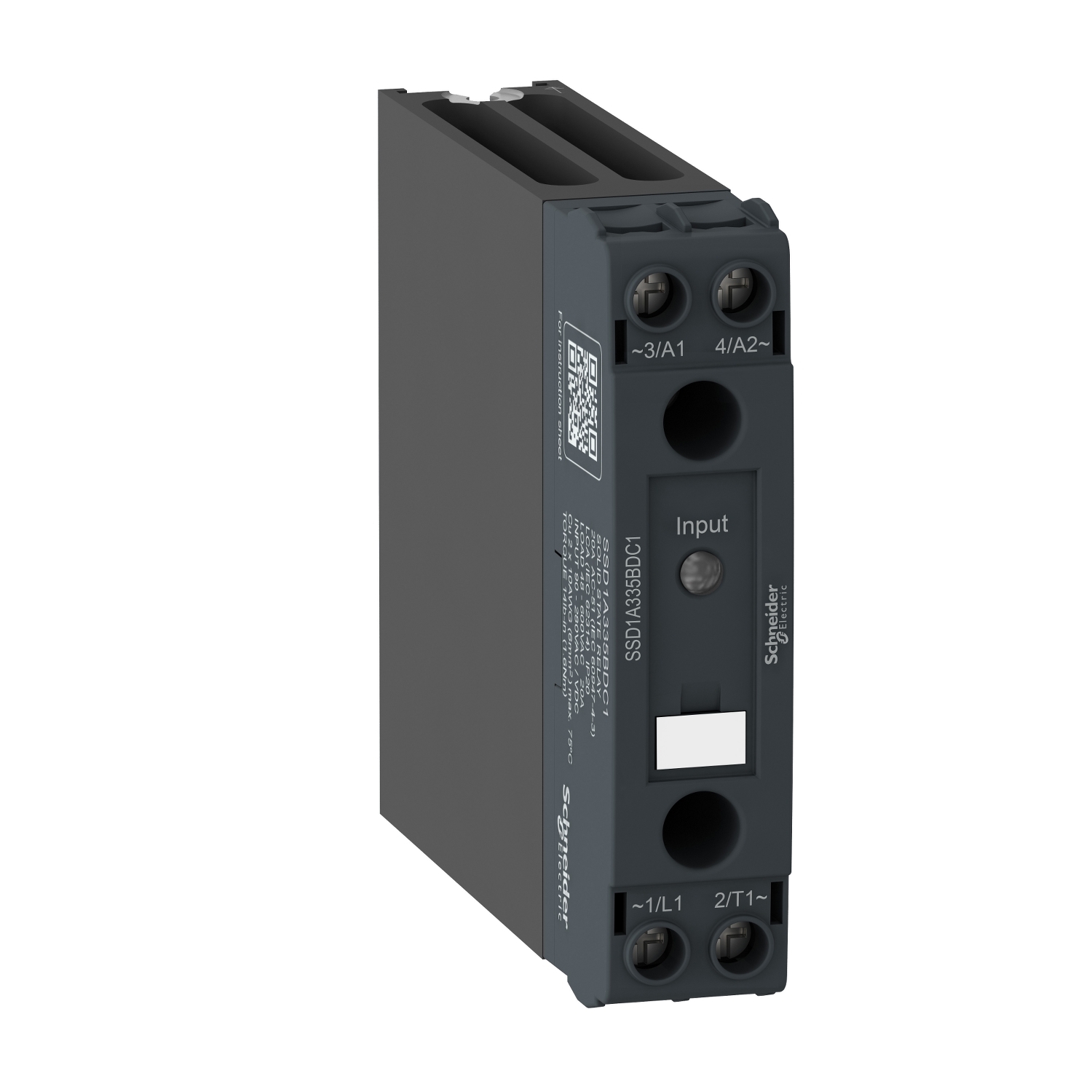

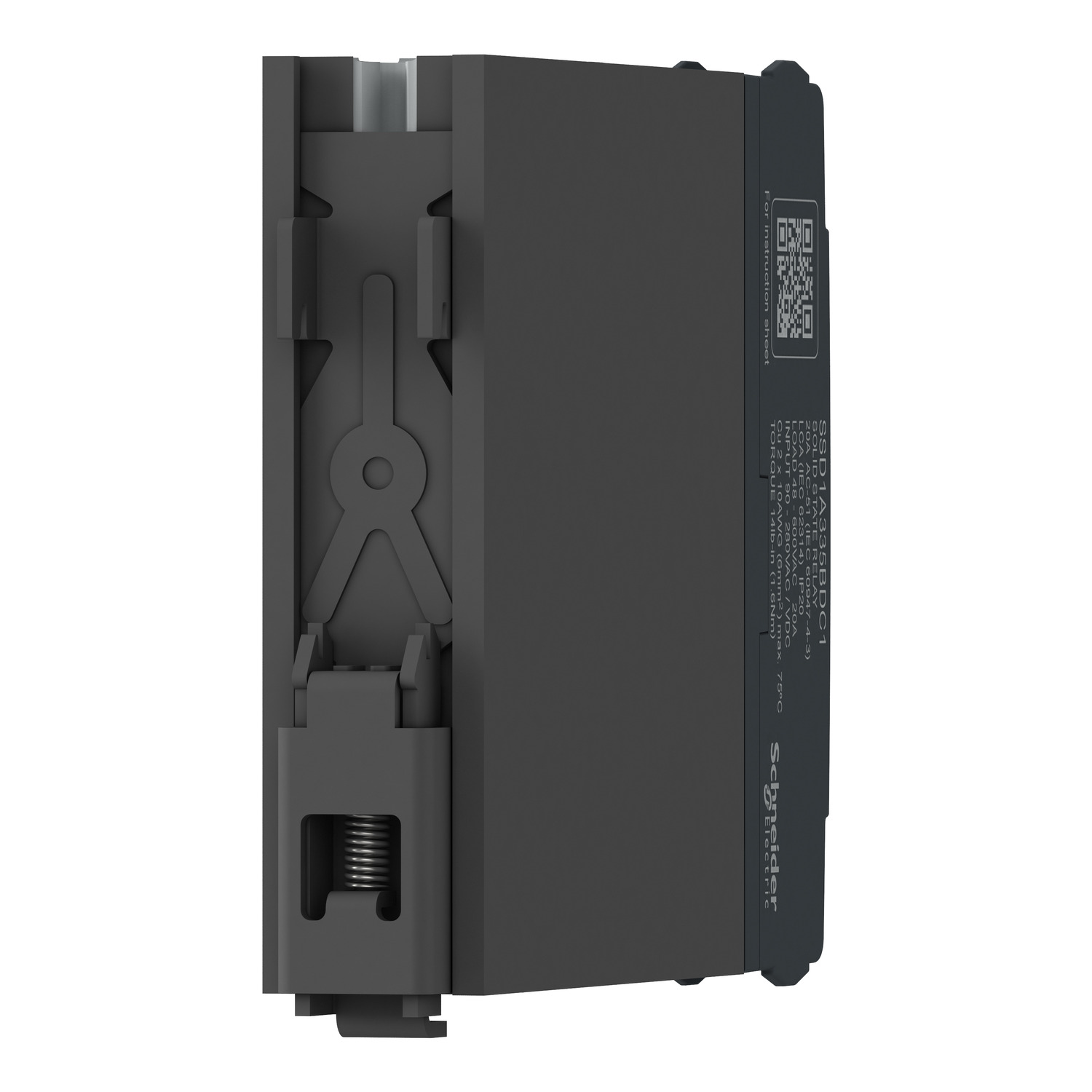

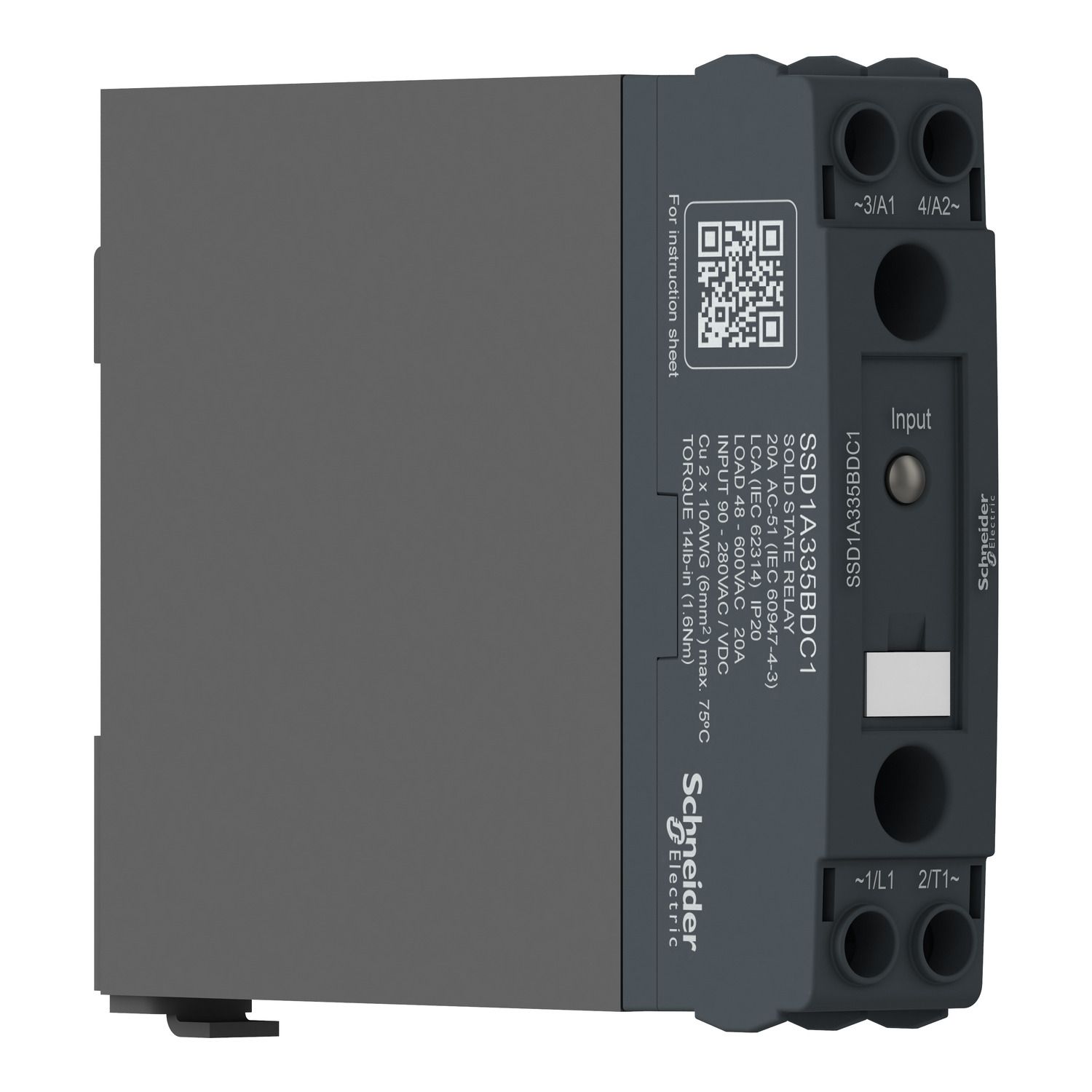

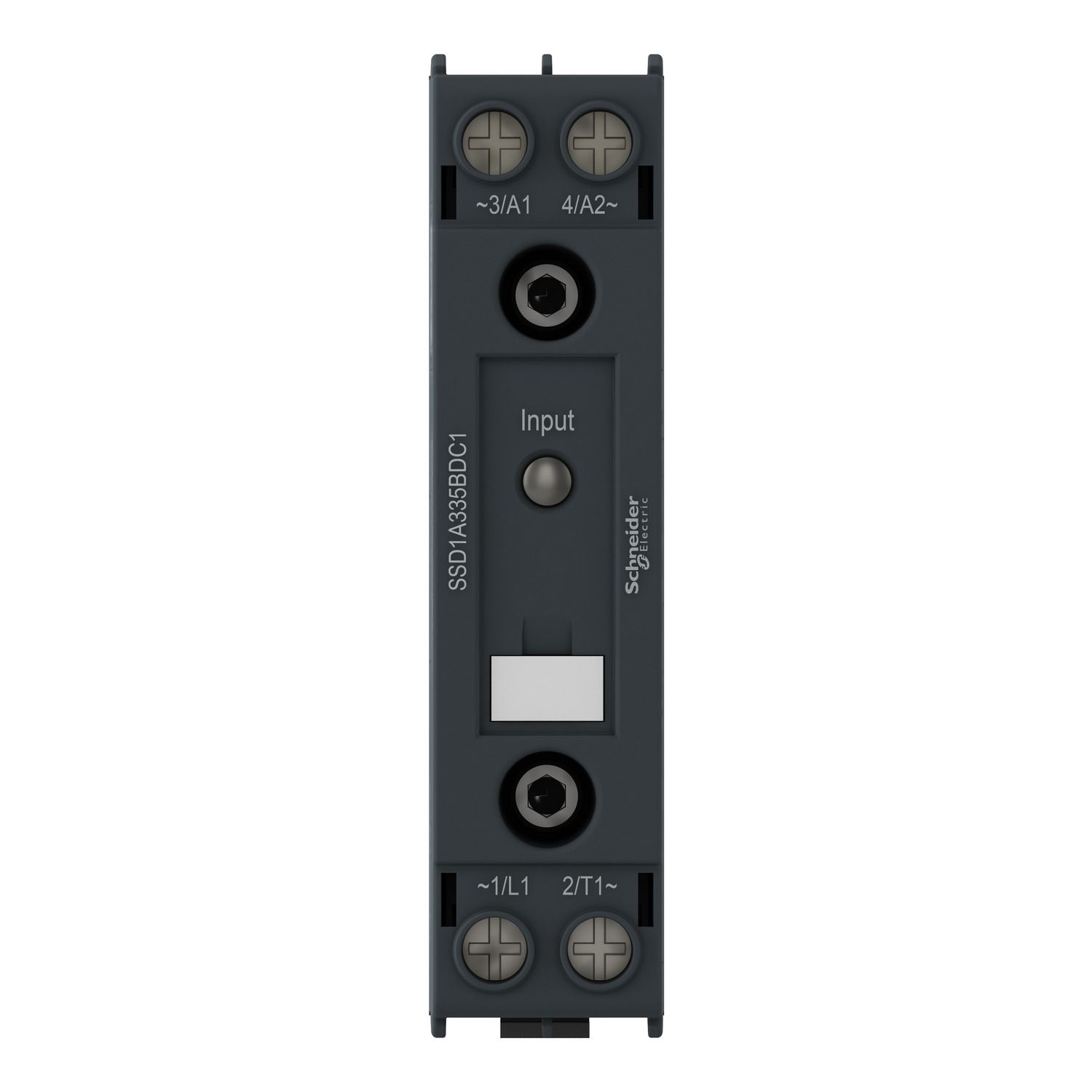

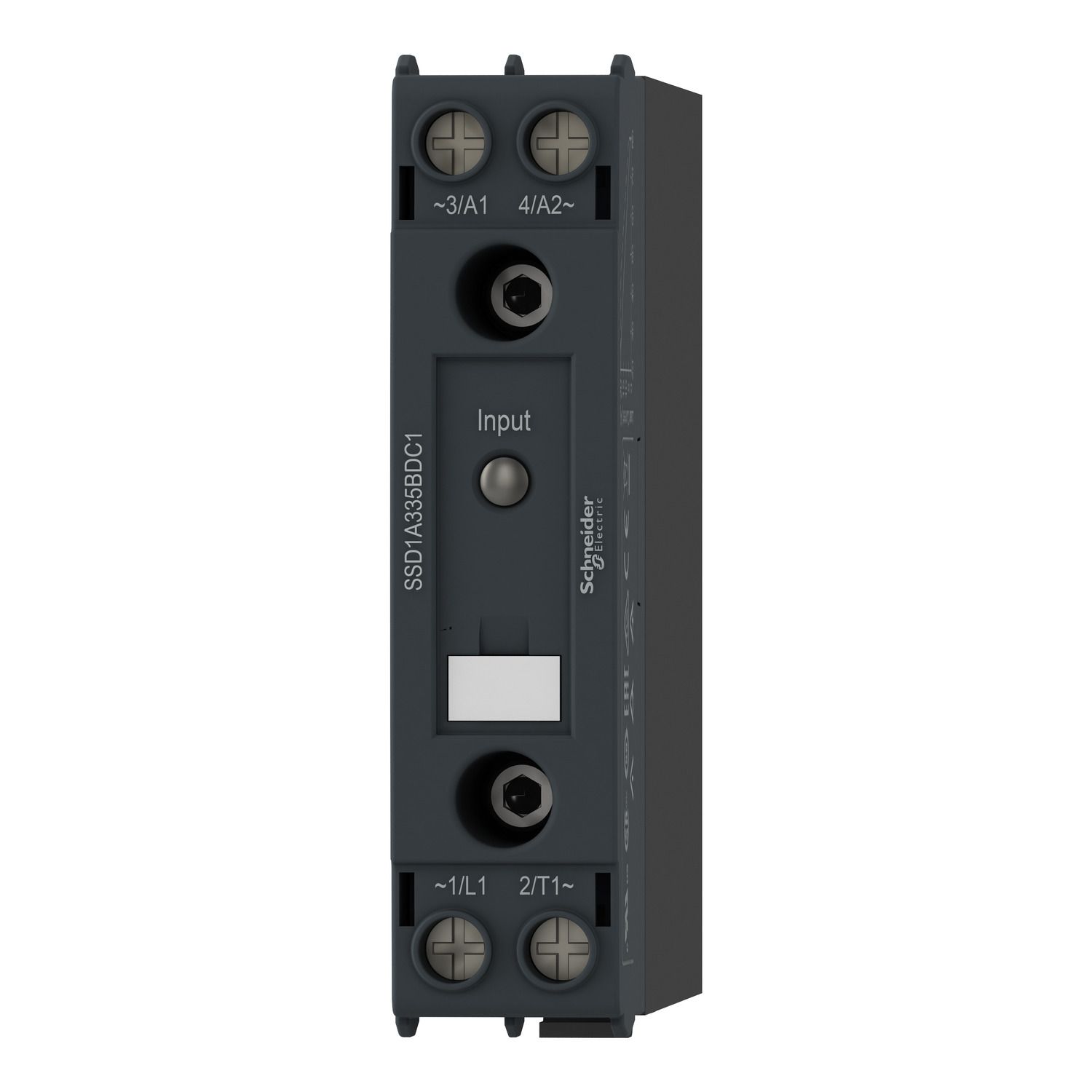

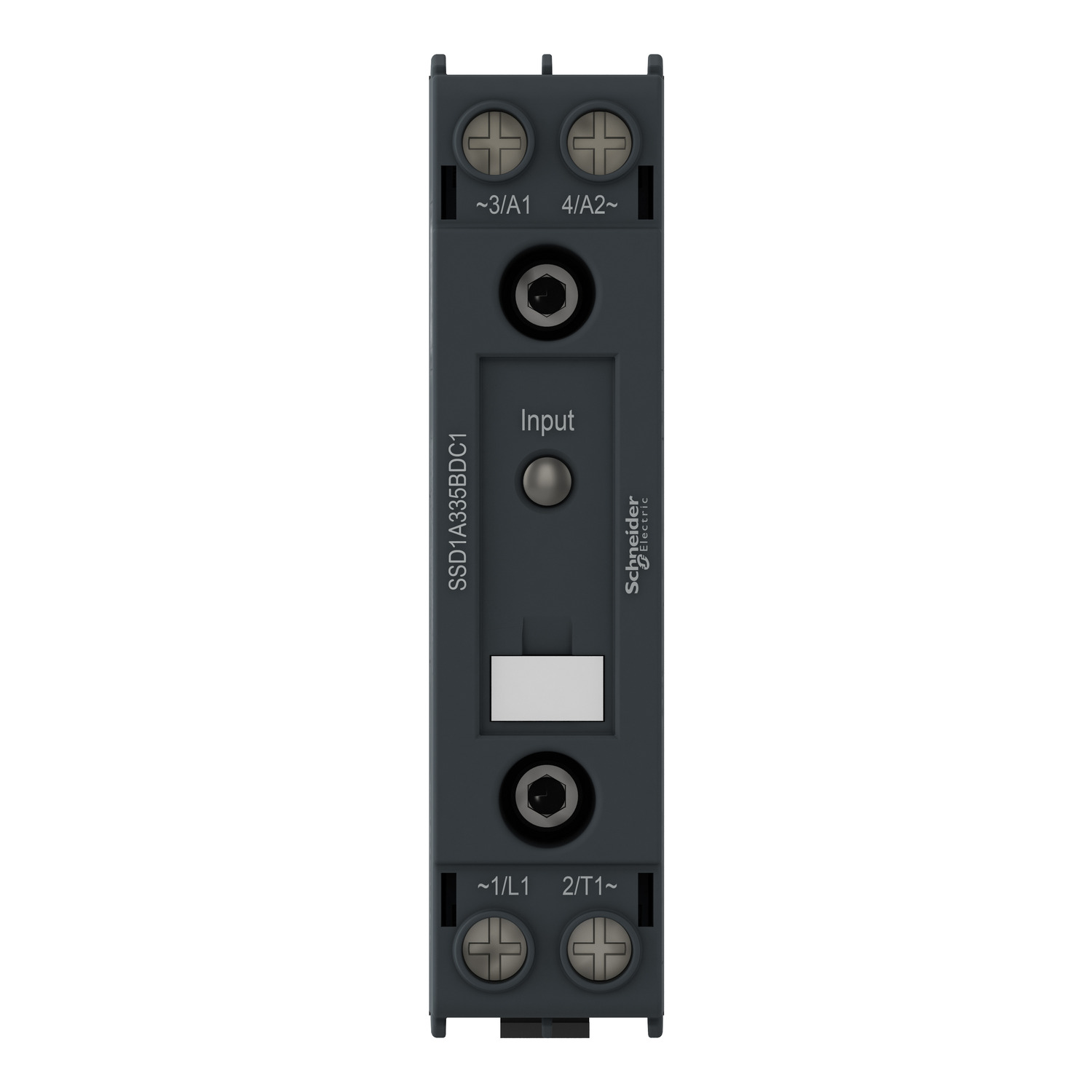

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 30A power rated relay with relay type configuration and DC switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 1Vdc to 150Vdc. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.280Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSD1 |
| [Uc] control circuit voltage | 4...32 V |
| Product configuration type | relay configuration |
| Number of channels | 1 |
| Range of product | Harmony Solid State Relays |
| [In] rated current | 30 A |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Network number of phases | 1 phase |
| Product or component type | solid state relay up to 30 A |
| Output switching mode | DC switching |
| Connections - terminals | screw connectors |
| Complementary | |
| Rated duty | uninterrupted |
| Inrush current | 86 A for 10 ms |
| Input current limits | 11-15 mA |
| Maximum switching voltage | 1 V DC turn-off |
| Electromagnetic compatibility | conducted emission environment B for DC input supply conforming to IEC 60947-4-3, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria A input ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria A output ports conforming to IEC 61000-4-4, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrostatic discharge 4 kV criteria A air discharge conforming to IEC 61000-4-2, electrostatic discharge 4 kV criteria A contact discharge conforming to IEC 61000-4-2 |
| Device presentation | complete product |
| Minimum switching voltage | 4 V DC turn-on |
| Motor power kW | 0.37 kW/0.5 hp at 120 V DC |
| Maximum voltage drop | <0.535 V on-state |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Output voltage | 1...150 V DC |
| Height | 93.2 mm |
| Depth | 116.5 mm |
| Overvoltage category | III |
| Width | 22.5 mm |
| Contact form | Form 5 semiconductor output DOL contactor |
| Resistance | 0.016 Ohm on-state |
| Solid state output type | DC switching |
| Local signalling | LED (green) for control voltage |
| Maximum leakage current | 0.2 mA off-state |
| [Uimp] rated impulse withstand voltage | 6 kV for input or output to case, 6 kV for input/output circuit |
| Net weight | 0.298 kg |
| Load current | 0.005-30 A |
| Response time | 100 µs (turn-off), 75 µs (turn-on) |
| Dielectric strength | 3.75 kV AC for input or output to case, 3.75 kV AC for input/output circuit |
| Tightening torque | 13...15 lb.in for load output, 1.5...1.7 N.m for load output, 13...15 lb.in for control input, 1.5...1.7 N.m for control input |
| Connections - terminals | screw terminals, clamping connection capacity:1...6 mm², AWG 18...AWG 10 for output, screw terminals, clamping connection capacity:1...4 mm², AWG 18...AWG 12 for input |
| [Uc] control circuit voltage | 4...32 V DC |
| Coordination type | type 2, type 1 |
| Environment | |
| Ambient air temperature for storage | -40-100 °C |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Standards | UL 508, CSA C22.2 No 14-13, IEC 61373:class B: category 1 |
| Ambient air temperature for operation | -40-80 °C |
| Flame retardance | V-0 conforming to UL 94 |
| Shock resistance | 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27, 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 |
| Vibration resistance | 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6 |
