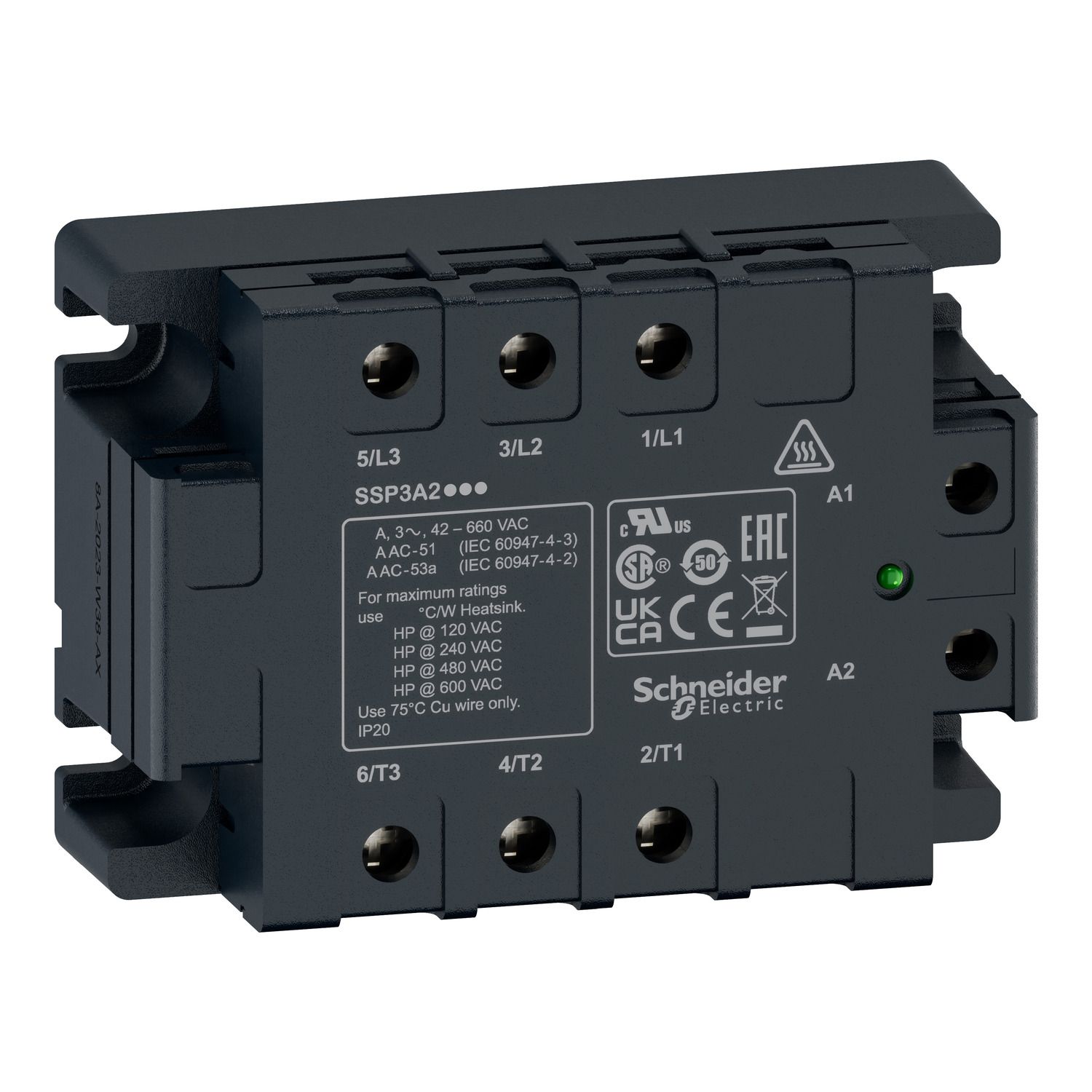

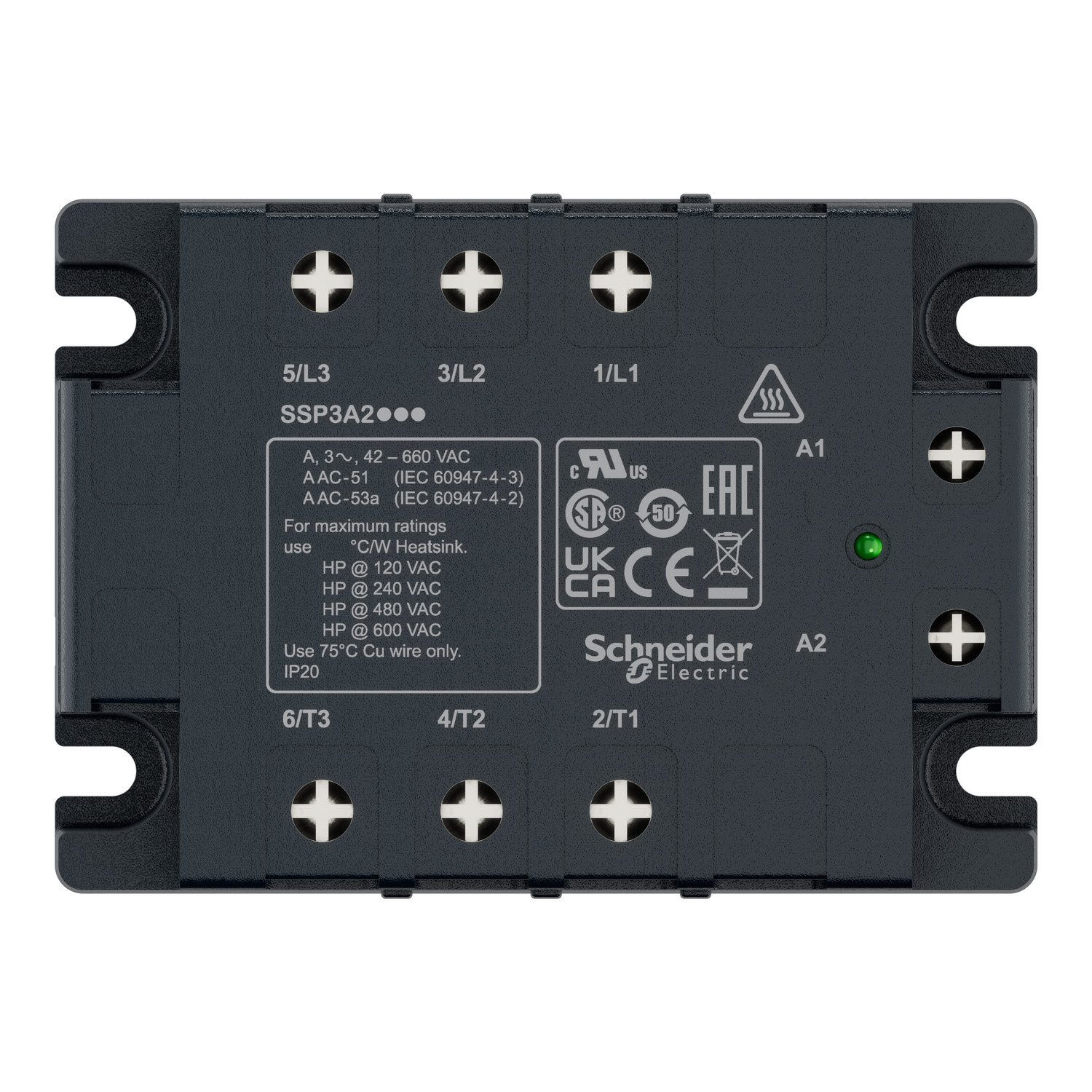

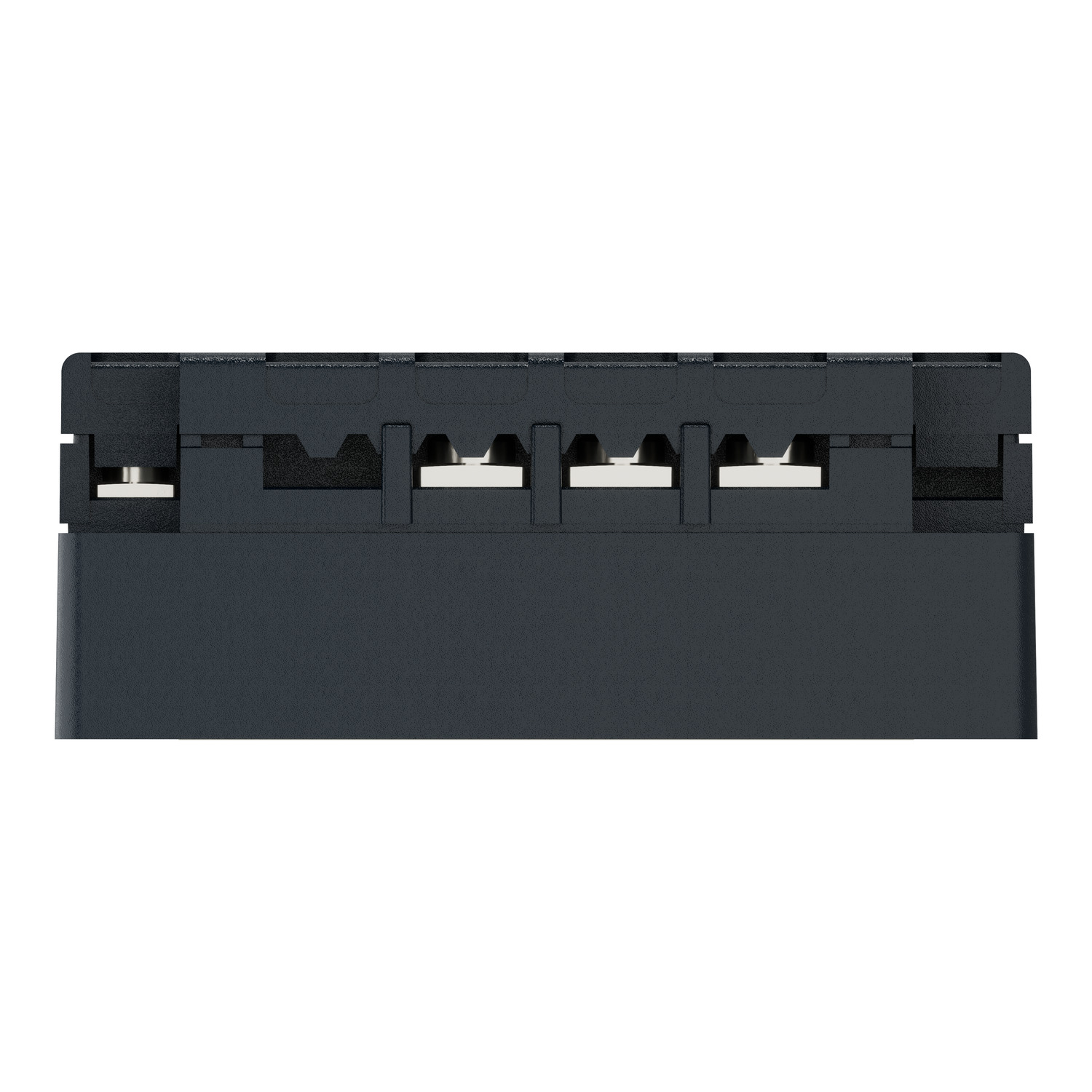

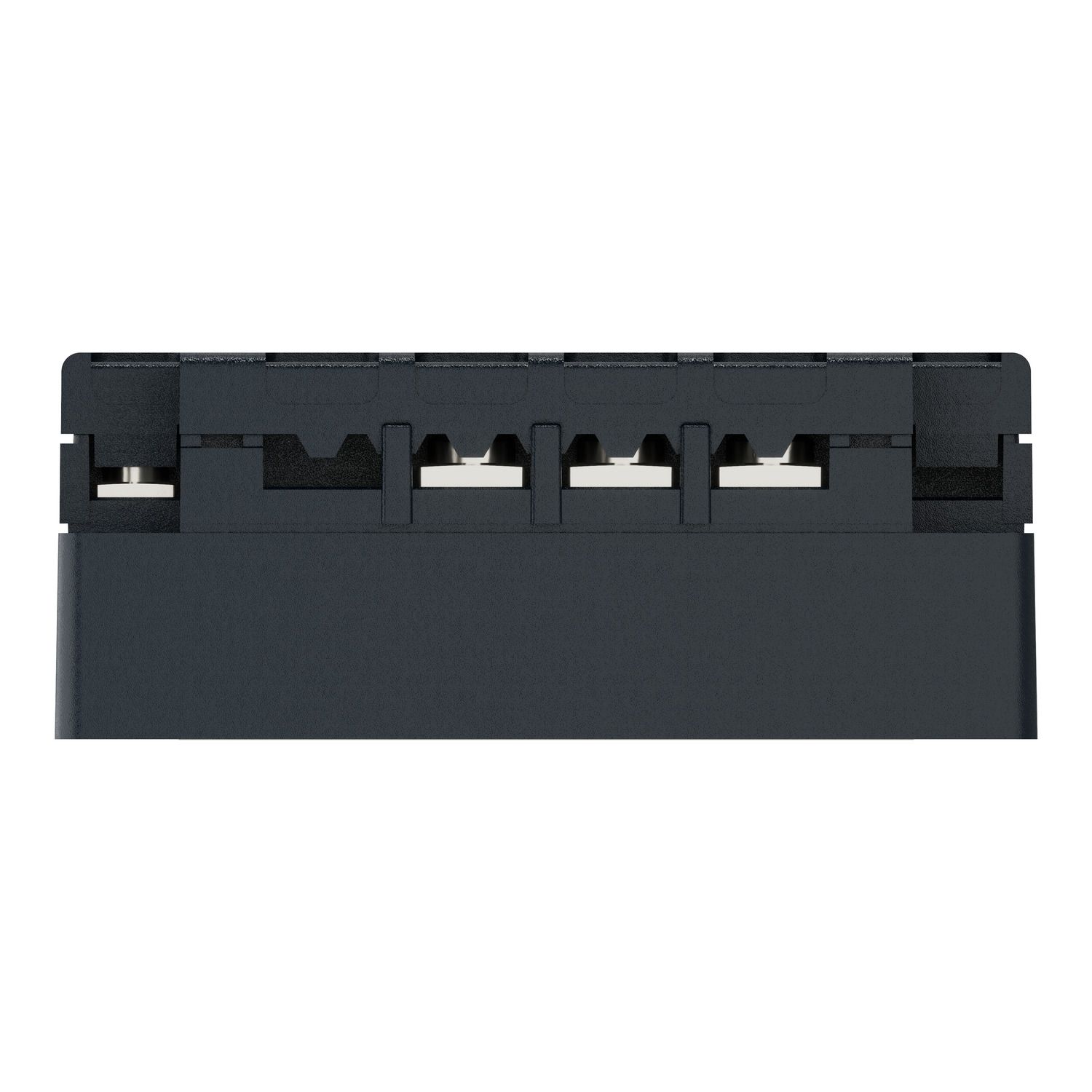

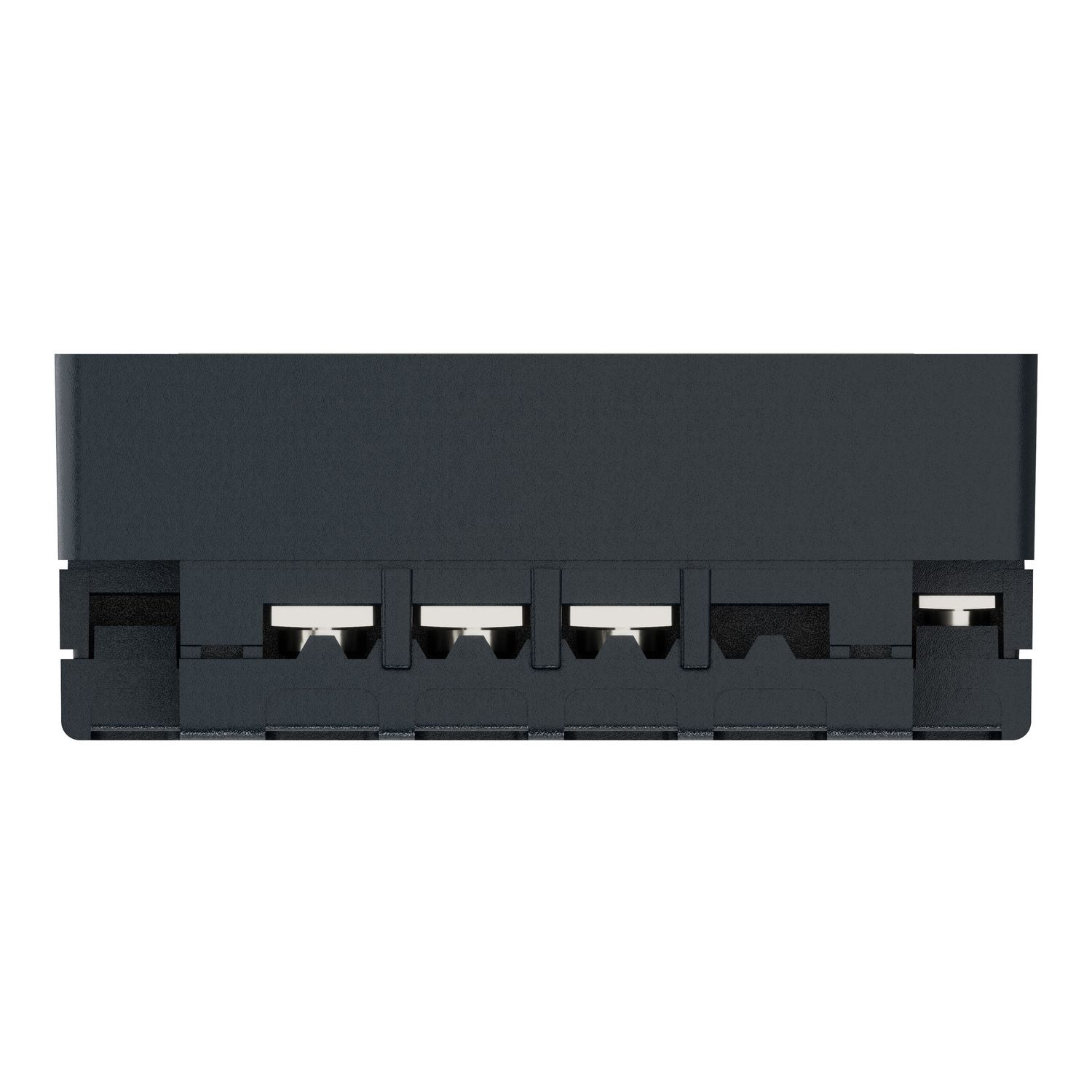

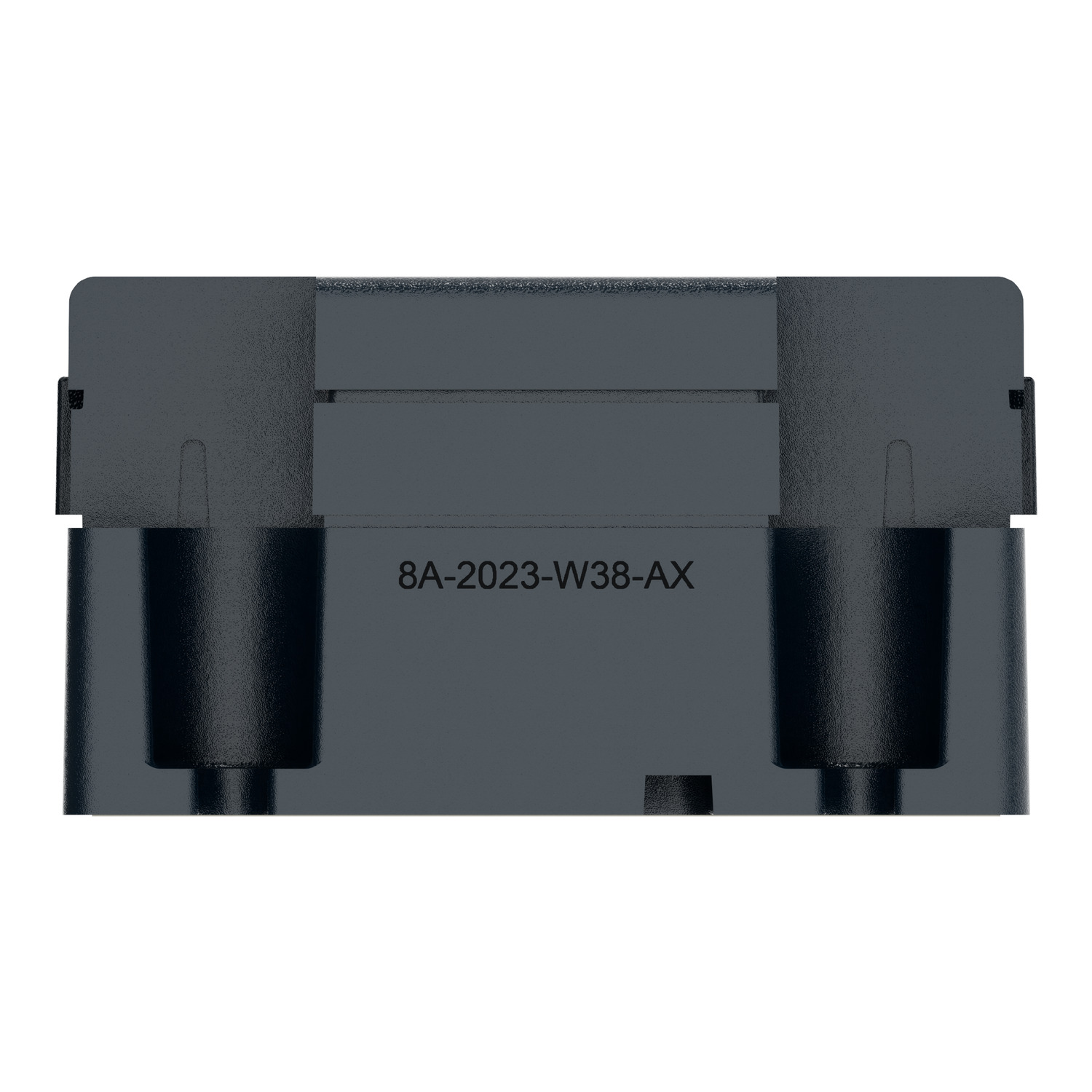

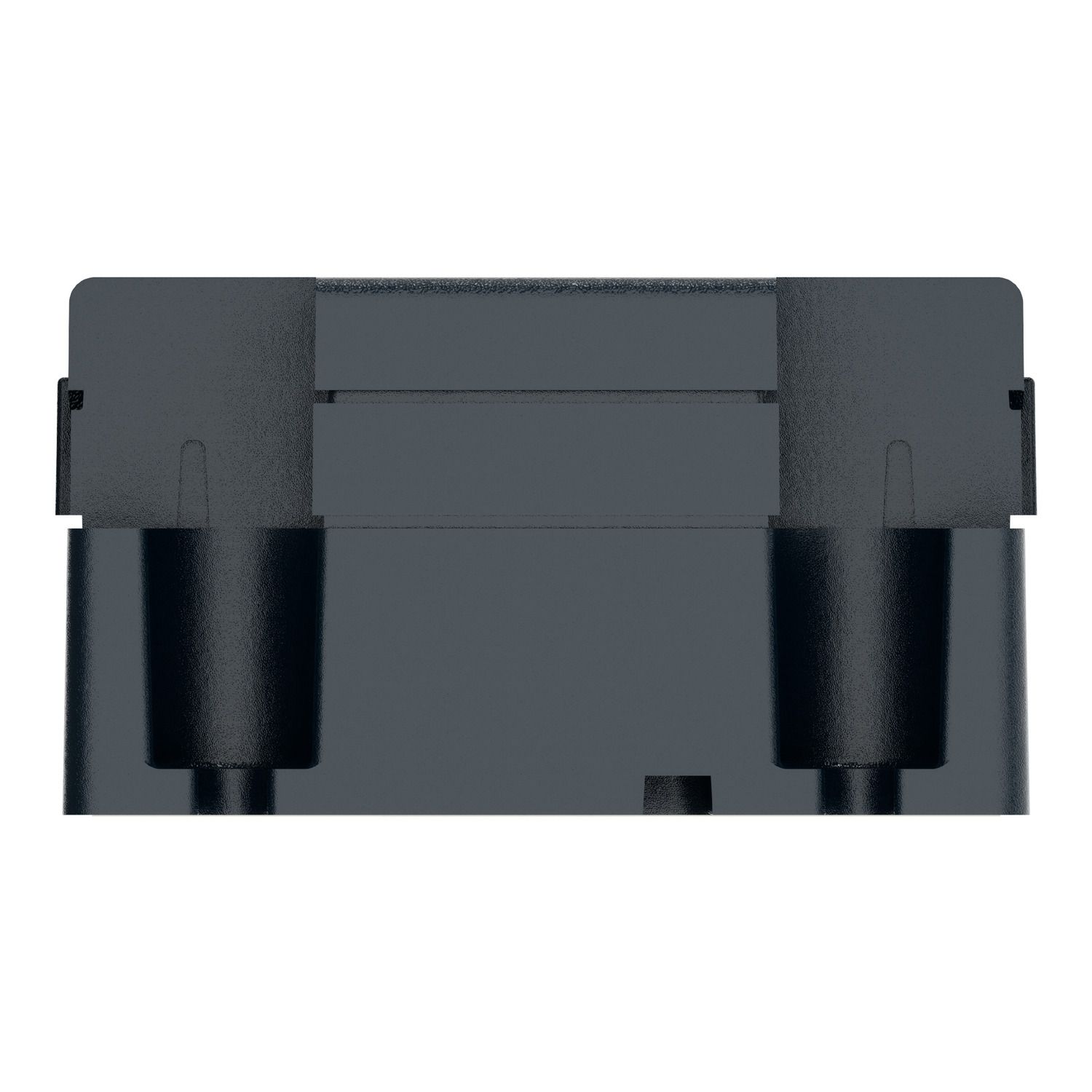

This Harmony SSP solid state panel mount 3-phase relay is rated 25A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 530V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications

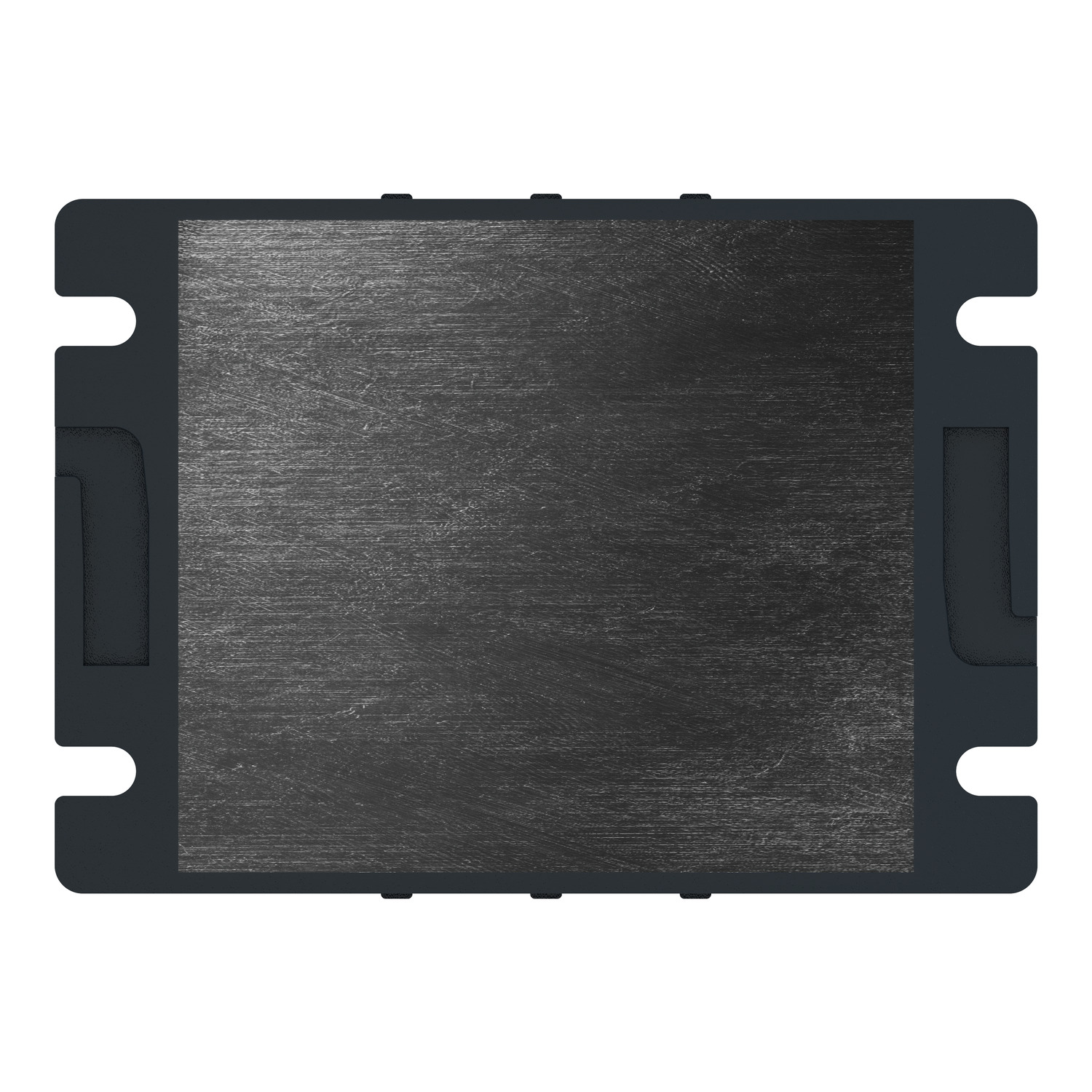

| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSP |
| [Uc] control circuit voltage | 4...32 V |
| Provided equipment | thermal interface |
| Range of product | Harmony Solid State Relays |
| [In] rated current | 25 A |
| Solid state output type | zero voltage switching |
| Network number of phases | 3 phases |
| Product or component type | solid state relay up to 30 A |
| Output switching mode | zero voltage switching |
| Mounting support | panel |
| Connections - terminals | screw connectors |
| Complementary | |
| Input current limits | 15-35 mA |
| Maximum switching voltage | 1 V DC turn-off |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Electromagnetic compatibility | conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1, radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4, immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11, immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11, immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11, immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11, electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4, surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6, electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2, electrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2 |
| Device presentation | complete product |
| Control type | without test button |
| IP degree of protection | IP20 |
| Minimum switching voltage | 4 V DC turn-on |
| Connections - terminals | screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output, screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input |
| Maximum voltage drop | <1.4 V on-state |
| Insulation resistance | >= 1000 MOhm at 500 V DC |
| Motor power hp | 5 hp 40 °C 600 V AC, 3 hp 40 °C 480 V AC, 1 hp 40 °C 240 V AC, 0.75 hp 40 °C 120 V AC |
| Height | 74.6 mm |
| Cos phi | 0.5-0.5 (with maximum load) |
| Protection device type | TVS |
| Motor power kW | 3.7 kW at 40-40 °C 600 V AC, 2.2 kW at 40-40 °C 480 V AC, 0.75 kW at 40-40 °C 240 V AC, 0.55 kW at 40-40 °C 120 V AC |
| Depth | 41 mm |
| Width | 104 mm |
| Capacitance unbalance | 8 pF for input/output |
| Absolute maximum voltage | 1200 V |
| Maximum leakage current | 3 mA off-state |
| [Uimp] rated impulse withstand voltage | 6 kV for input/output to case, 6 kV for input/output circuit, 0.8 kV for input to case |
| Net weight | 0.37 kg |
| Local signalling | LED, green for input |
| Load current | 0.15-25 A |
| Surge current | 300 A for 16.6 ms, 275 A for 20 ms |
| Response time | 8.33 ms (turn-off), 8.33 ms (turn-on) |
| Dielectric strength | 4 kV AC for input or output to case, 4 kV AC for input/output |
| Maximum I²t for fusing | 370 A².s for 8.3 ms at 60 Hz, 380 A².s for 10 ms at 50 Hz |
| Thermal resitance | 0.24 °C/W |
| Tightening torque | 2.5 N.m for output, 1.2 N.m for input |
| Environment | |
| Ambient air temperature for storage | -40-125 °C |
| Marking | CE |
| Pollution degree | 2 |
| Ambient air temperature for operation | -40-80 °C |
| Overvoltage category | III |
| Flame retardance | V0 conforming to UL 94 |
| Standards | C22.2 No. 14, UL 60947-4-2, IEC/EN 60947-4-3, IEC/EN 60947-4-2, IEC/EN 62314 |
| Product certifications | UKCA, UL, EAC, CSA, CE |
