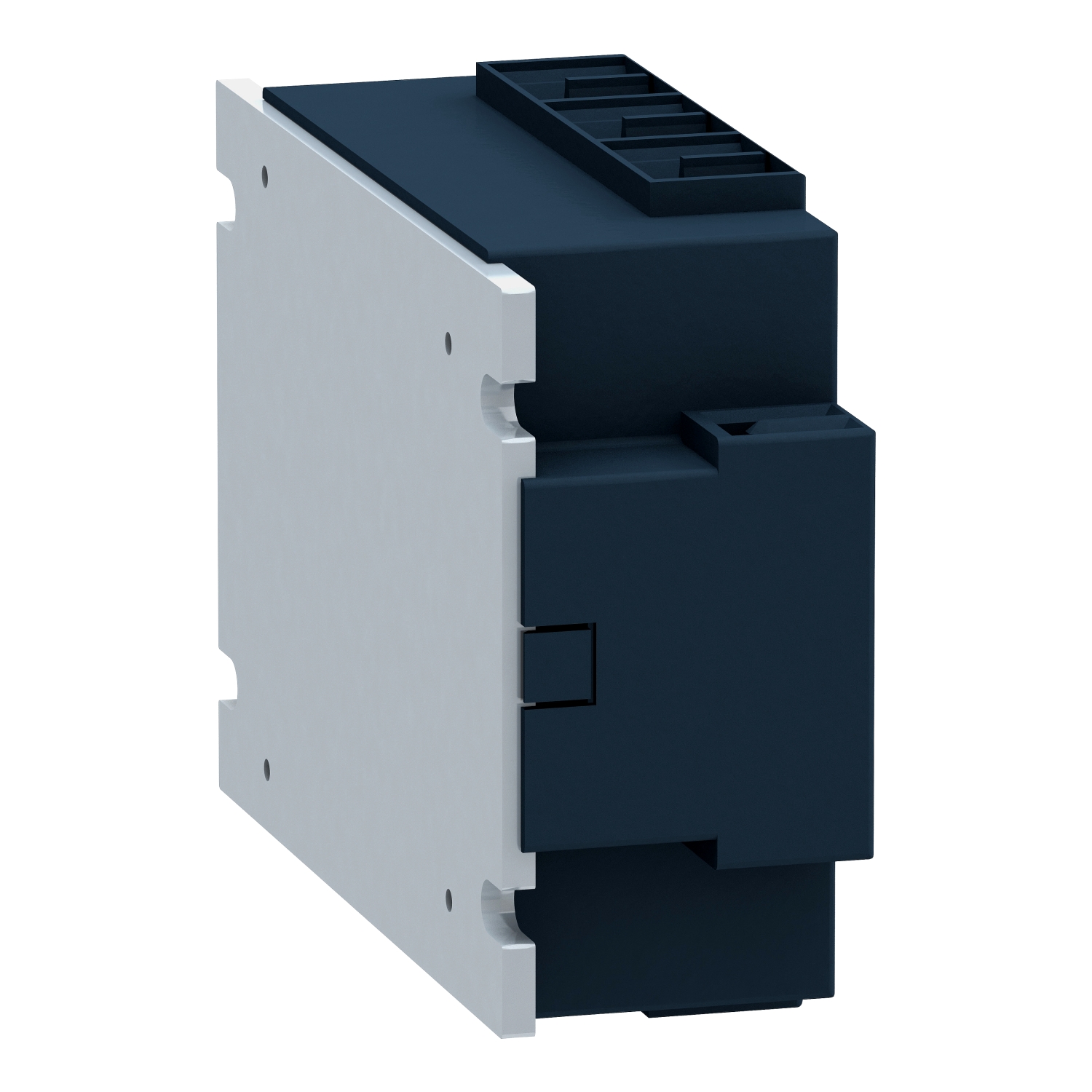

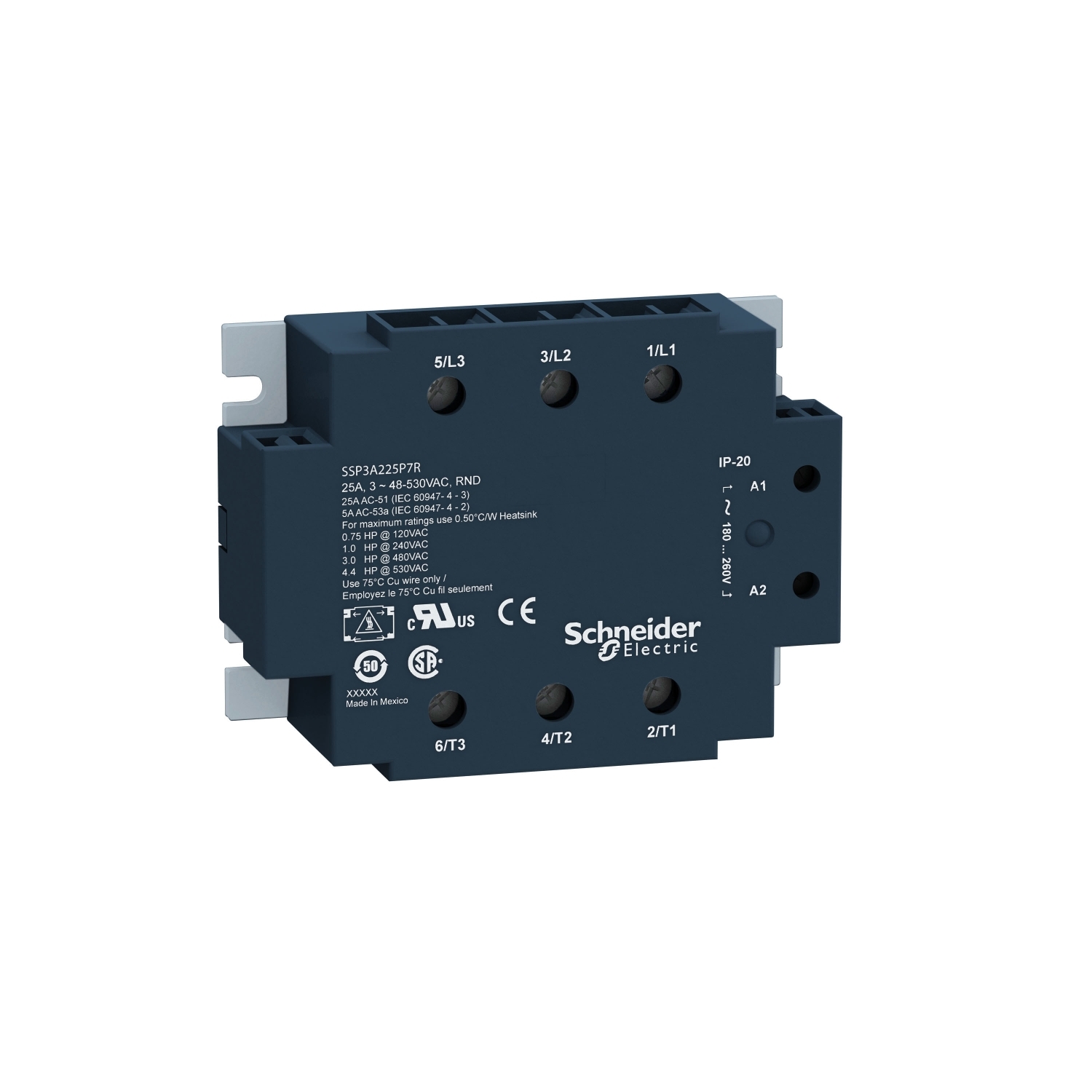

This Harmony SSP solid state panel mount 3-phase relay is rated 50A, is controlled with a 90V to 140V AC input, has a rated load voltage of 48V to 530V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSP |
| [Uc] control circuit voltage | 90...140 V |
| [In] rated current | 50 A |
| Provided equipment | thermal interface |
| Solid state output type | zero voltage switching |
| Network number of phases | 3 phases |
| Product or component type | solid state relay up to 50 A |
| Output switching mode | zero voltage switching |
| Mounting support | panel |
| Range of product | Harmony Solid State Relays |
| Connections - terminals | screw connectors |
| Complementary | |
| Motor power kW | 6.47 kW at 40-40 °C 530 V AC, 5.55 kW at 40-40 °C 480 V AC, 2.22 kW at 40-40 °C 240 V AC, 1.11 kW at 40-40 °C 120 V AC |
| Depth | 35.4 mm |
| Input current limits | 7-16 mA |
| Width | 101.3 mm |
| Capacitance unbalance | 8 pF for input/output |
| Maximum switching voltage | 10 V AC turn-off |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Absolute maximum voltage | 1200 V |
| Device presentation | complete product |
| Control type | without test button |
| IP degree of protection | IP20 |
| Maximum leakage current | 3 mA off-state |
| Minimum switching voltage | 90 V AC turn-on |
| Net weight | 0.24 kg |
| Local signalling | LED, green for input |
| Load current | 0.1-50 A |
| Surge current | 150 A for 1 s, 750 A for 16.6 ms, 715 A for 20 ms |
| Response time | 30 ms (turn-off), 20 ms (turn-on) |
| Dielectric strength | 4 kV AC for input or output to case, 4 kV AC for input/output |
| Connections - terminals | screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output, screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input |
| Maximum voltage drop | <1.35 V on-state |
| Maximum I²t for fusing | 2320 A².s for 8.3 ms at 60 Hz, 2520 A².s for 10 ms at 50 Hz |
| Thermal resitance | 0.12 °C/W |
| Insulation resistance | >= 1000 MOhm at 500 V DC |
| Tightening torque | 1.7...2.2 N.m for output, 0.9...1.1 N.m for input |
| Motor power hp | 8.8 hp 40 °C 530 V AC, 7.5 hp 40 °C 480 V AC, 3 hp 40 °C 240 V AC, 1.5 hp 40 °C 120 V AC |
| Output voltage | 48...530 V AC |
| Height | 79.7 mm |
| [Uc] control circuit voltage | 90...140 V AC |
| Cos phi | 0.5-0.5 (with maximum load) |
| Environment | |
| Overvoltage category | III |
| Ambient air temperature for storage | -40-125 °C |
| Flame retardance | V0 conforming to UL 94 |
| Marking | CE |
| Pollution degree | 2 |
| Standards | IEC 62314, IEC 60950-1, IEC 61000 |
| Ambient air temperature for operation | -40-80 °C |
| Product certifications | UL, CSA |
