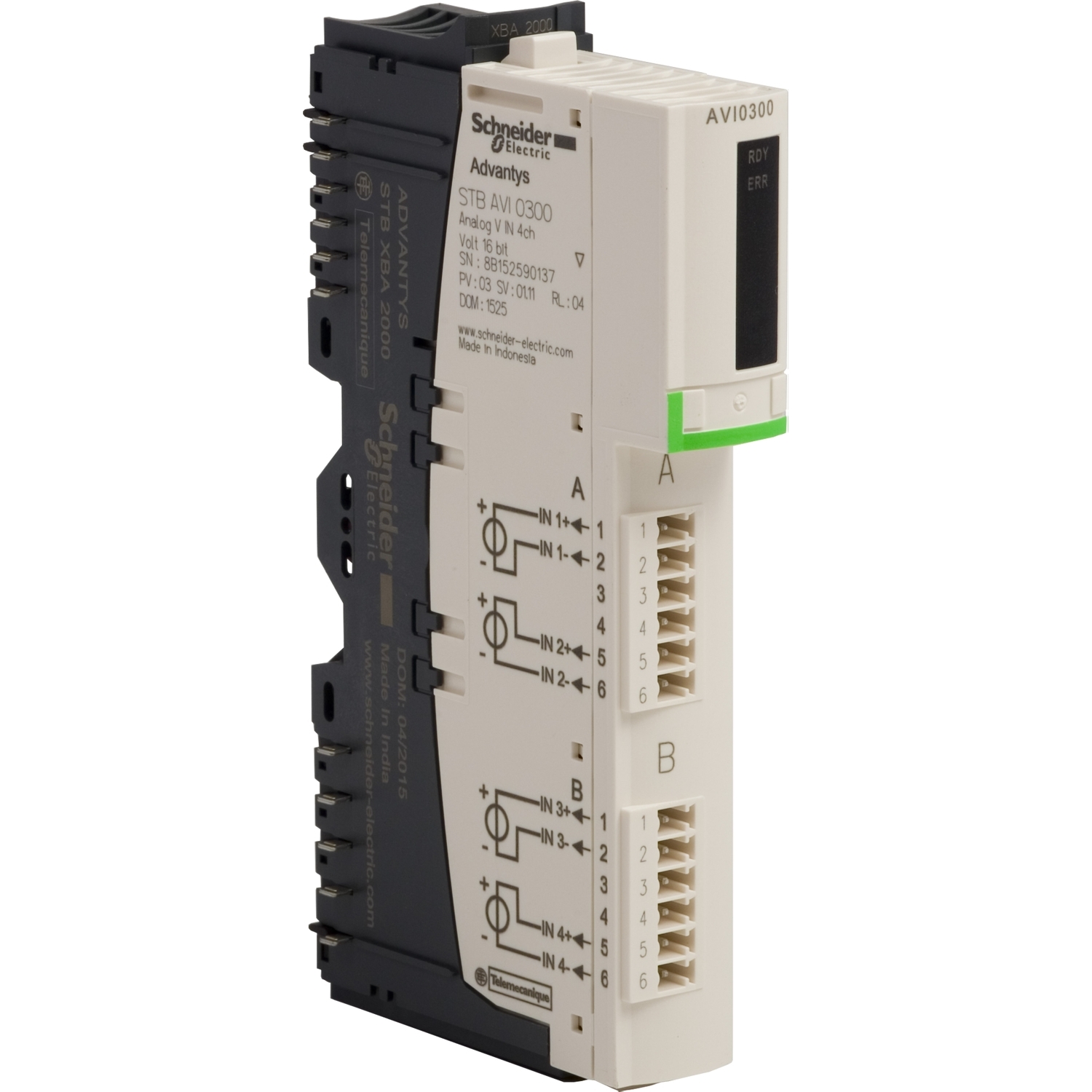

This input kit is part of the Modicon STB range, an offer of modular distributed I/O. This standard analog input kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). The kit has 4 analog inputs. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. The kit includes STBXBA1000 base, STBAVI0300 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input resolution | 15 bits + sign |
| Type of filter | single low pass input filter 25 Hz |
| Range of product | Modicon STB distributed I/O solution |
| Analogue input type | voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 5 V, voltage +/- 10 V |
| Kit composition | STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector, STBAVI0300 module |
| Analogue input number | 4 |
| Product or component type | standard analog input kit |
| Complementary | |
| Product compatibility | power distribution module STBPDT3100/3105, mounting base STBXBA1000 |
| Addressing requirement | 2 input words |
| Temperature drift | +/-0.01 %/°C |
| Fallback status | user configurable standard NIMs, state 0 basic NIMs |
| Marking | CE |
| Data format | IEC 61131-2, EN 61131-2 |
| Hot swapping fallback | yes for standard NIMs |
| Status LED | 1 LED (red) module error (ERR), 1 LED (green) module status (RDY) |
| Insulation between channels and sensor bus | 30 V |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| [Us] rated supply voltage | 24 V DC |
| Overvoltage category | II |
| Maximum source impedance | 1 kOhm |
| Absolute maximum input | 50 V DC |
| Absolute accuracy error | +/- 0.75 % of full scale 25 °C |
| Current consumption | 90 mA at 5 V DC for logic bus |
| Supply | power distribution module |
| Integral linearity | +/- 0.2 %FS |
| Differential linearity | monotonic |
| Input impedance | 400 kOhm |
| Maximum supply current for sensors | 100 mA per input channels |
| Environment | |
| Ambient air temperature for operation | - 13...158 °F without derating, -25-70 °C |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without derating, -40...185 °F without derating |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | C-Tick, ATEX Cat 3G, CSA, UL, FM Class 1 Division 2 |
