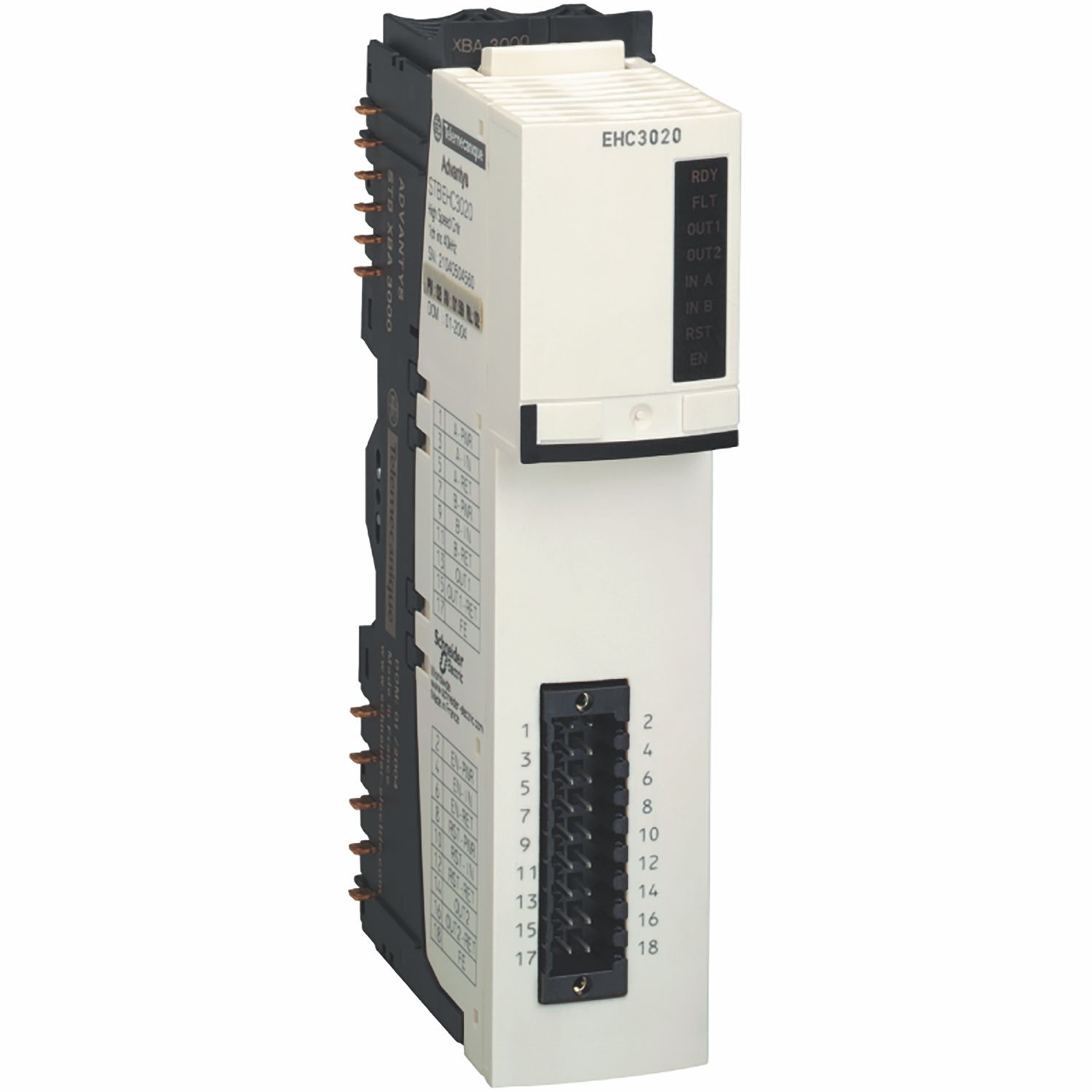

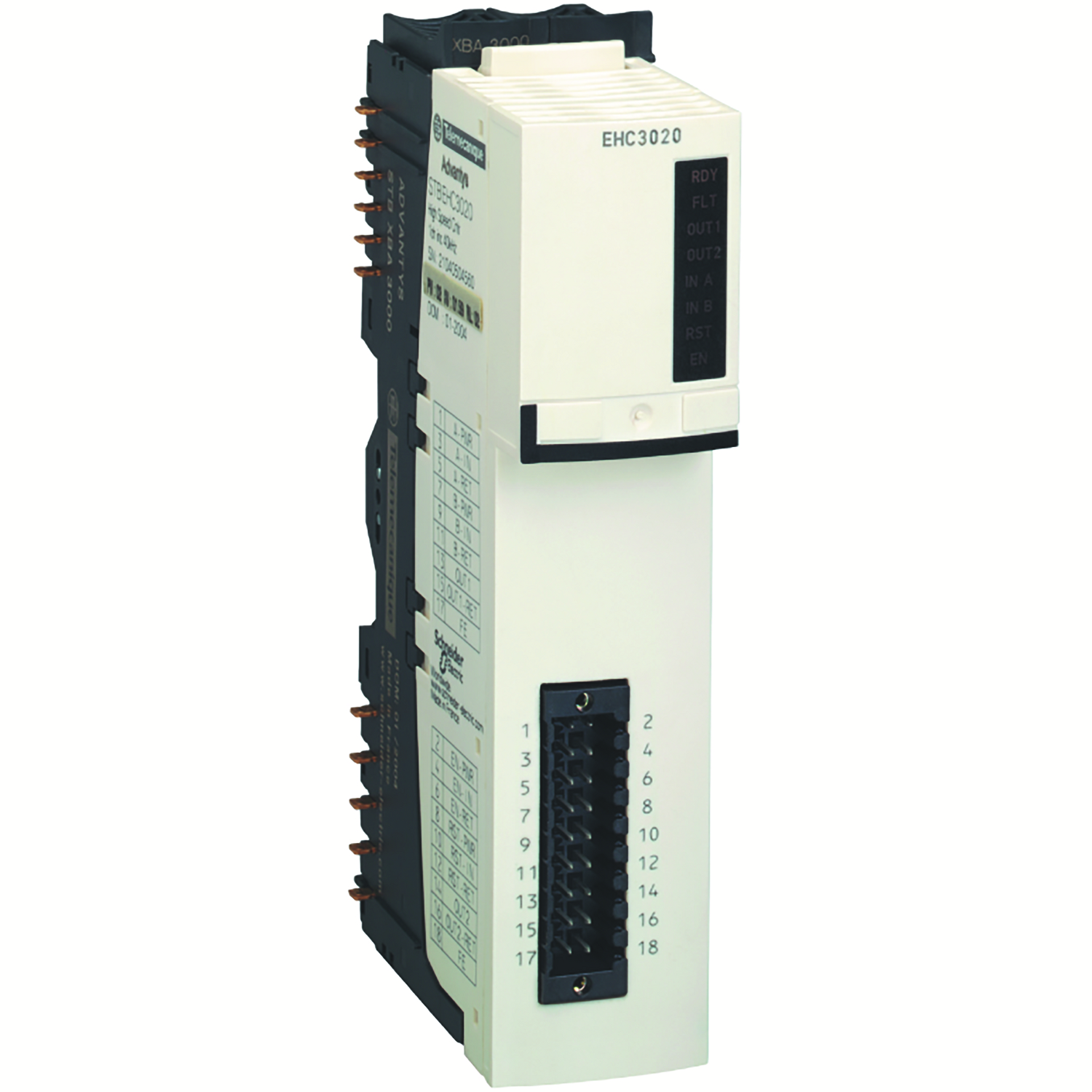

This product is part of the Modicon STB range, an offer of modular distributed I/O. This counter kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 inputs and single channel. It has rated supply voltage of 24V DC. This product is compatible with most major fieldbus networks. It supports maximum counting frequency of 40000Hz with counter functions like measuring time periods, up/down counting, down counting, frequency meter, loop (modulo) counting and count events. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 28.1mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of channels | 1 |
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | counter kit |
| Complementary | |
| Voltage state 1 guaranteed | 11...30 V |
| Protection type | short-circuit protection current limiter, overload protection current limiter, short-circuit protection electronic tripping manual or automatic reset, overload protection electronic tripping manual or automatic reset |
| Product compatibility | power distribution module STBPDT3100/3105, mounting base STBXBA3000 |
| Maximum counting frequency | 40000 Hz |
| Input voltage type | DC |
| Output voltage | 24 V |
| Current state 1 guaranteed | >= 2 mA |
| Fallback status | state 0 or 1 for each channel configured, state 0 for output channels by default, hold last value configured |
| Input voltage limits | 19.2...30 V |
| Input logic | positive |
| Marking | CE |
| Counting input number | 2 |
| Maximum voltage drop | <3 V at state 1 |
| Output voltage type | DC |
| Maximum load inductance | 500 mH at 4 Hz |
| Filter time | 25 µs analog auxiliary input, 2.5 µs analog counting inputs, 1.2 ms digital 400 Hz counting inputs, 0.4 ms digital 1000 Hz counting inputs, 0 ms digital 40000 Hz counting inputs |
| Status LED | 1 LED (red) module error (FLT), 1 LED per output (green) output status (OUT1, OUT2), 1 LED per counting input (green) counting input status (INA, INB), 1 LED (green) reset input status (RST), 1 LED (green) module status (RDY), 1 LED (green) EN validation input status (EN) |
| Discrete output logic | positive or negative configurable |
| Height | 28.1 mm |
| Cold swapping | yes |
| Kit composition | STBXTS215018 terminal spring clamp connector, STBXBA3000 base, STBEHC3020 module |
| Maximum leakage current | 0.1 mA at state 0 |
| [Us] rated supply voltage | 24 V DC |
| Insulation between channels and bus | 500 V |
| Depth | 70 mm |
| Input compatibility | incremental encoder, with 2-wire/3-wire proximity sensors, mechanical contact, 2/3 wire photo-electric sensor |
| Overvoltage category | II |
| Width | 128.3 mm |
| Nominal output current | 0.5 A |
| Input voltage | 24 V |
| Output voltage limits | 19.2...30 V |
| Counter configuration | Modicon configuration software |
| Hot swapping fallback | fallback to 0 basic network interface module, fallback to 0 not configured mandatory standard network interface module, fallback output depending on parameter setting configured mandatory standard network interface module |
| Input current | 6 mA |
| Voltage state 0 guaranteed | -3...5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Current consumption | 60...100 mA at 5 V DC for logic bus |
| Supply | power distribution module |
| Counter functions | count events, loop (modulo) counting, frequency meter, down counting, up/down counting, measure time periods |
| Environment | |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation | -25-70 °C (without derating) |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | UL, CSA, FM Class 1 Division 2 |
