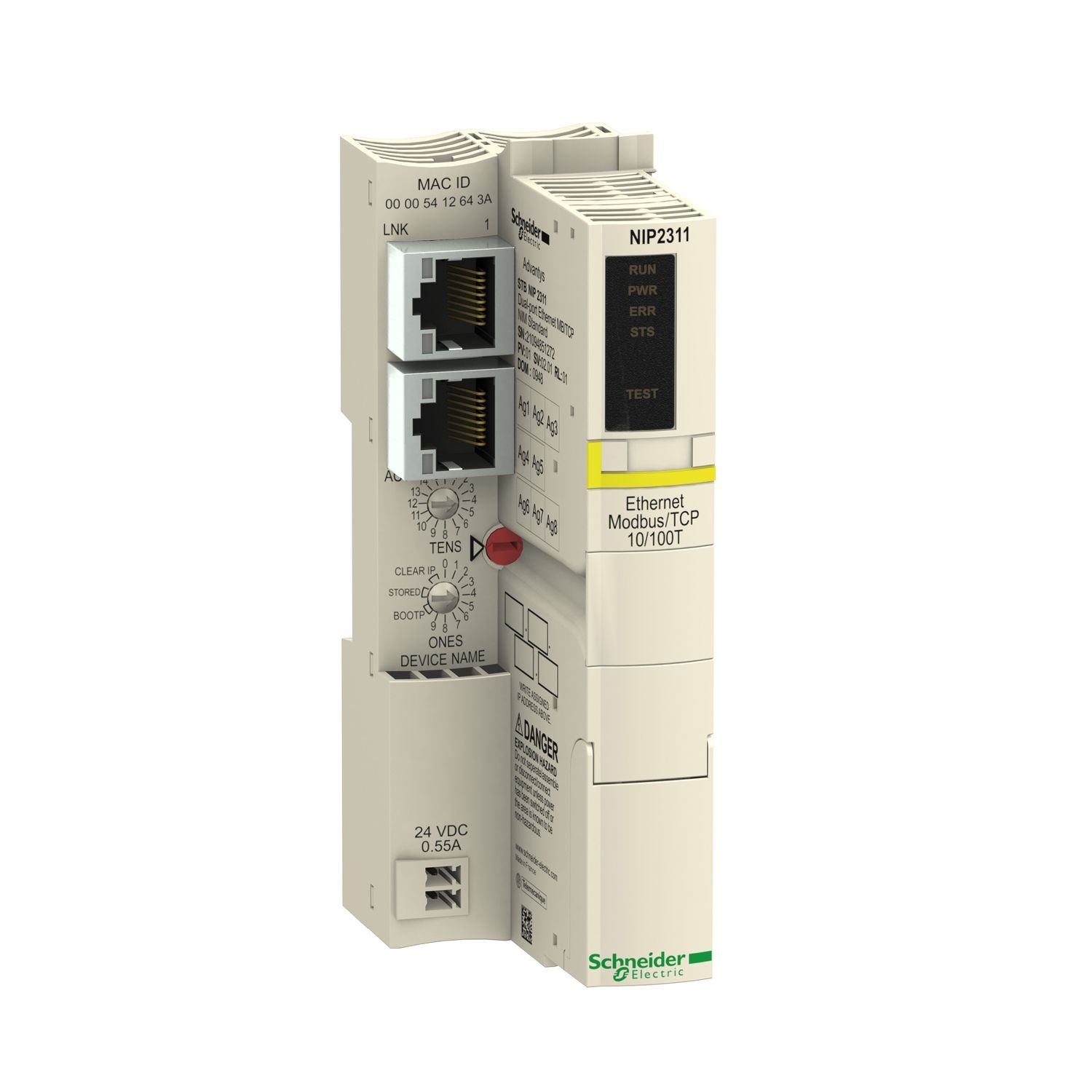

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 130mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Structure type | Ethernet Modbus TCP/IP network, industrial LAN |
| Transmission rate | 10/100 Mbit/s for bus length of 0-100 m per segment |
| Exchange mode | half or full duplex |
| Range of product | Modicon STB distributed I/O solution |
| Port Ethernet | 10BASE-T/100BASE-T |
| Integrated connection type | Ethernet Modbus TCP/IP conforming to IEEE 802.3 8-way female (RS232 port), Ethernet Modbus TCP/IP conforming to IEEE 802.3 HE-13 (RS232 port), Ethernet Modbus TCP/IP conforming to IEEE 802.3 2 female RJ45 double shielded twisted pair via Ethernet (network) |
| Product or component type | standard Network Interface Module |
| Number of segments | 1 primary, maximum 6 extensions |
| Complementary | |
| Maximum supply current | 700 A |
| Supply voltage limits | 19.2-30 V |
| Input current | 550 mA for supply circuit |
| Marking | CE |
| Communication service | embedded web (configuration,diagnostics and access to variable), Modbus TCP/IP messaging, BootP/DHCP protocol, SNMP agent |
| Output voltage | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Status LED | 1 LED test mode (TEST), 1 LED power supply (PWR), 1 LED NS, 1 LED MS, 1 LED module error (ERR), 1 LED island state (RUN), 1 LED ACT |
| Height | 40.5 mm |
| Nominal output current | 1.2 A, 0.575 A at 60-70 °C |
| [Us] rated supply voltage | 24 V DC |
| Depth | 70 mm |
| Overvoltage category | II |
| Width | 130 mm |
| Net weight | 0.145 kg |
| Power supply type | SELV |
| Number of addressable I/O module | 0-32 per island |
| Environment | |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation | -25-70 °C (with derating factor), 0-60 °C (without derating) |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | FM Class 1 division 2, groups A, B, C and D T4A with 70 °C, IEC 61131-2 : 2003 |
| Product certifications | CSA, ATEX Cat 3G, C-Tick, ODVA, UL |
