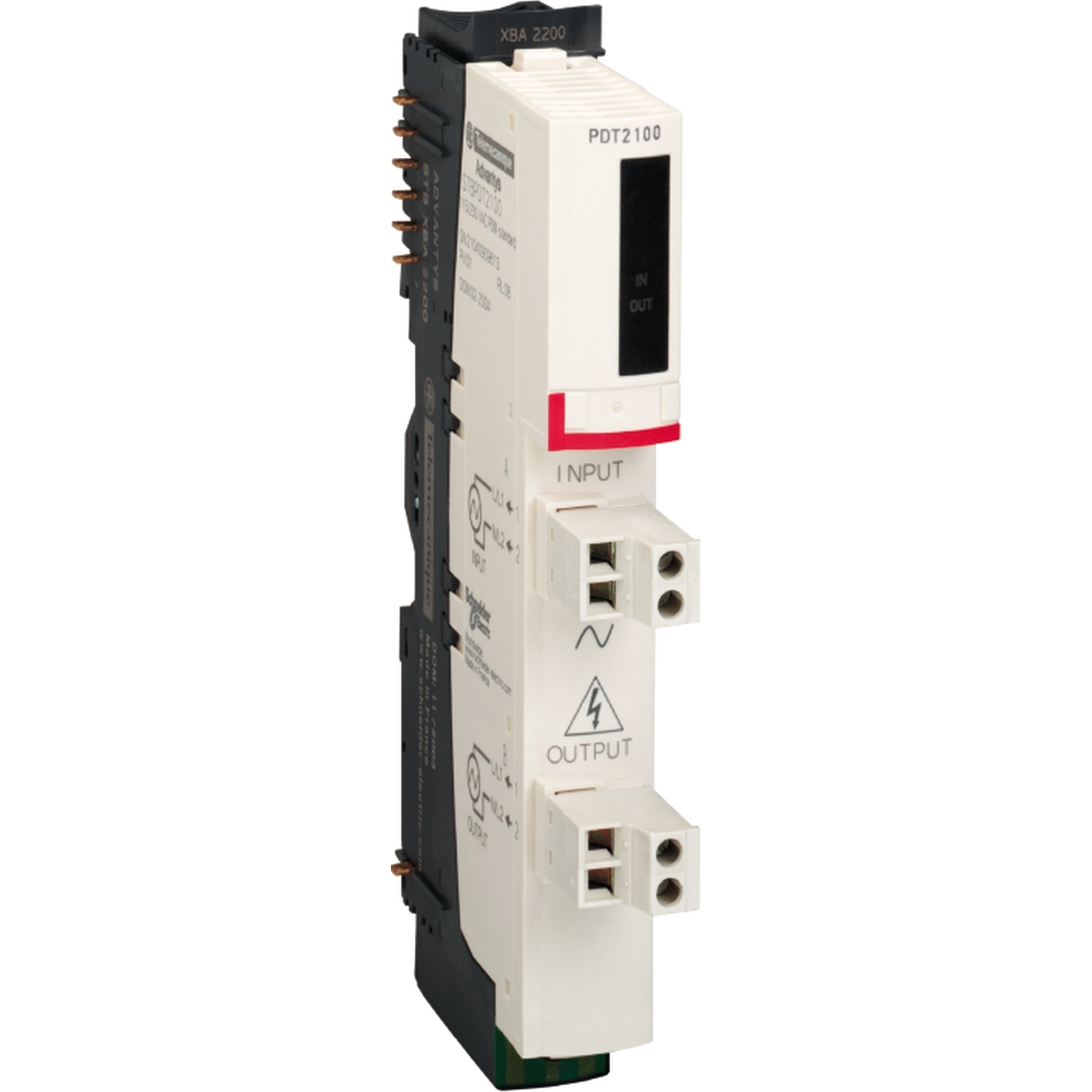

This product is an offer of Schneider Electric's Modicon STB distributed I/O solution range. It is a standard power distribution kit for the mounting base STBXBA2200. The kit consists of a base, a module, a spring-type connector, and a screw-type connector. It works at a rated supply of 115 to 230 VAC. This product weighs 0.129 kg. Ideal for environment such as packaging, bottling, assembly, distribution, textile, printing, semiconductor machines. It is UL, CSA, and FM Class 1 Division 2 certified and conforms to IEC 60664-1 standard. This is compatible with I/O base STBXBA2000 and power distribution module STBPDT2100/2105. It is designed to be mounted on DIN rail. Modicon STB range is simple, open and flexible, meeting your needs in every stage of the product life cycle. They save you time and money by simplifying maintenance and diagnostic tasks.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | standard power distribution kit |
| Range of product | Modicon STB distributed I/O solution |
| Complementary | |
| Supply frequency | 50...60 Hz |
| Kit composition | STBXTS1130, screw type connectors, STBXTS2130, spring type connectors, STBXBA2200 base, STBPDT2100 module |
| Product compatibility | mounting base STBXBA2200 |
| Depth | 65.1 mm |
| Overvoltage category | II |
| Width | 125 mm |
| Supply circuit type | AC |
| Permissible current | 30 A for 2 minutes grounding terminal |
| Net weight | 0.129 kg |
| Power supply output current | 0-5 A at 60 °C (output circuit), 0-5 A at 30 °C (input circuit), 0-2.5 A at 60 °C (input circuit), 0-10 A at 30 °C (output circuit) |
| Marking | CE |
| Protection type | built-in overcurrent protection, 5 A time-lag fuse for input circuit, built-in overcurrent protection, 10 A time-lag fuse for output circuit |
| Voltage detection threshold | > 70 V +/-5 AC IN/OUT LED lit, < 50 V +/-5 AC IN/OUT LED non lit |
| Hot swapping fallback | hot swapping illegal |
| Status LED | 1 LED (green) sensor bus power supply (IN), 1 LED (green) actuator bus power supply (OUT) |
| Height | 18.4 mm |
| Voltage range | 85...265 V AC sensor/actuator bus |
| [Us] rated supply voltage | 115...230 V |
| Environment | |
| Operating altitude | <= 2000 m |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to EN 61131-2 class 1 |
| Vibration resistance | 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Ambient air temperature for operation | 0-60 °C (without) |
| Product certifications | UL, FM Class 1 Division 2, CSA |
