Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon STB distributed I/O solution |

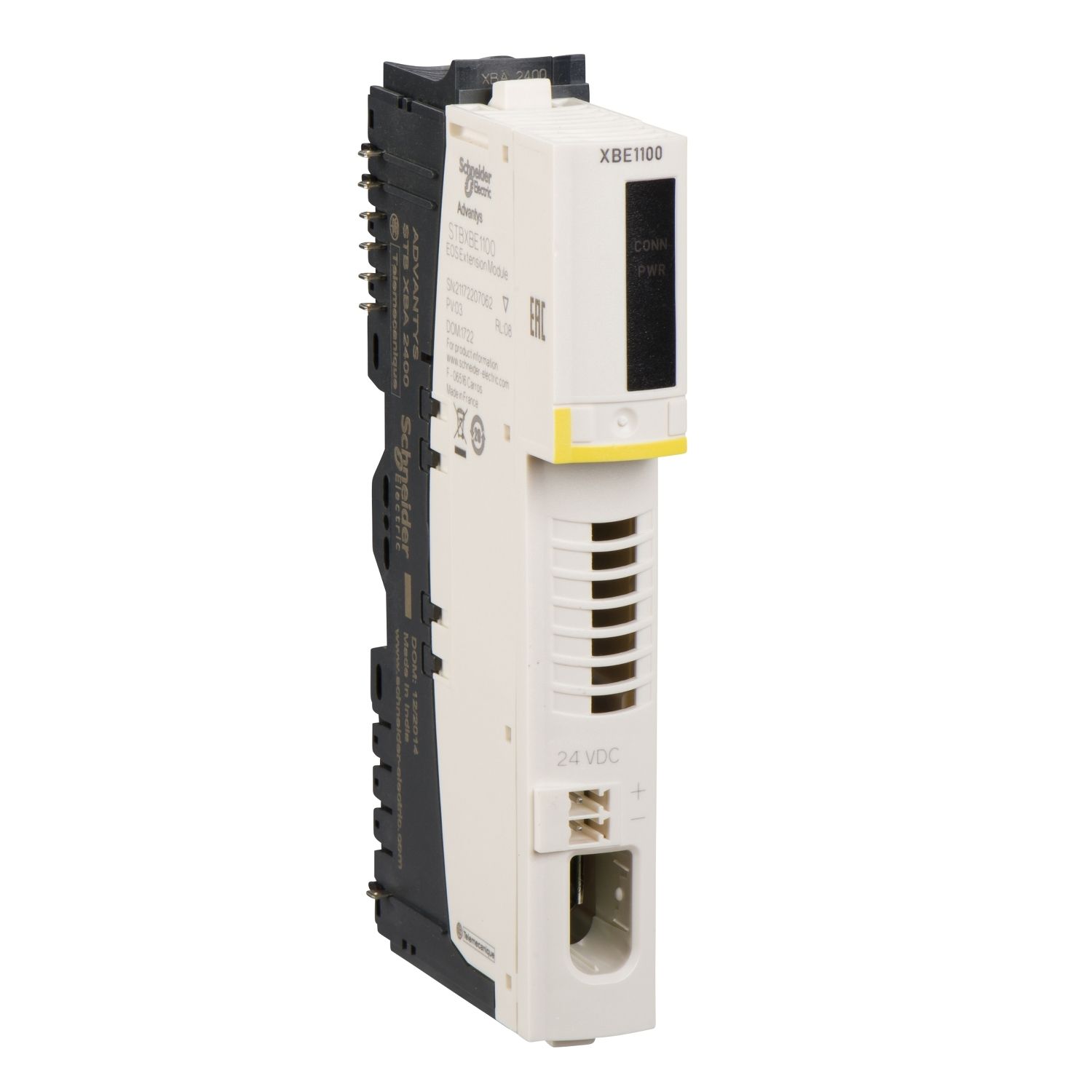

| Product or component type | bus extension kit |
| Complementary | |
| Product compatibility | standard STB modules |
| Electrical connection | 5 pins for CANopen devices for interface |
| Marking | CE |
| Kit composition | STBXTS2110, 5-terminal spring clamp connector, STBXBA2000 I/O base, STBXTS1110, 5-terminal screw type connector, STBXBE2100 island bus extension |
| Overvoltage category | II |
| Mounting location | end of the last segment |
| Environment | |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Electromagnetic compatibility | immunity to electromagnetic interference conforming to IEC 61131-2 |
| Ambient air temperature for operation | 0-60 °C (without derating) |
| Operating altitude | <= 2000 m |
| Vibration resistance | 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | CSA, UL, FM Class 1 Division 2 |
