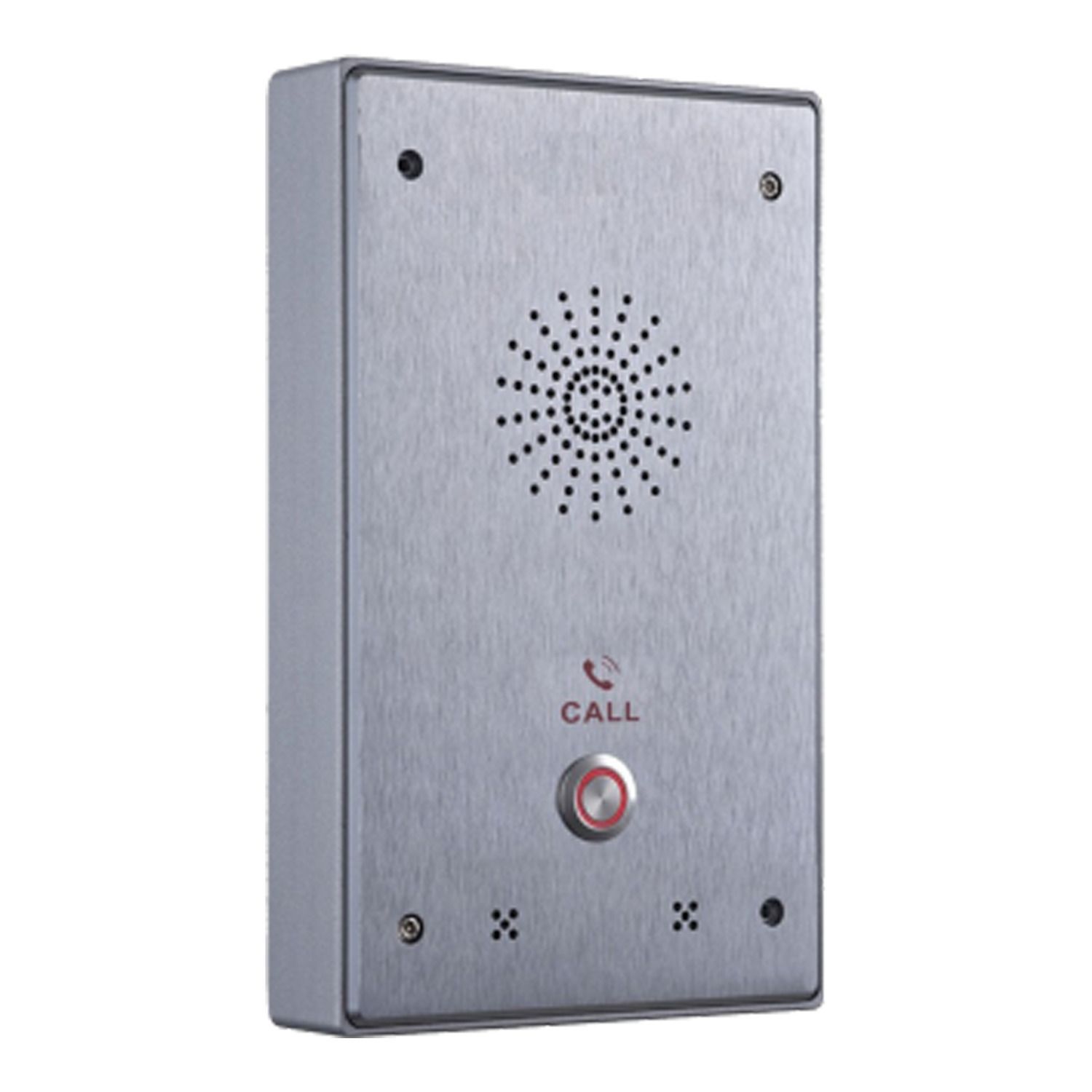

Security Expert IP PoE Intercom door station
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP54 |
| Depth | 70 mm |
| Width | 125 mm |
| Control button type | 1 push-button |
| [In] rated current | 350 mA |
| Relative humidity | 0-85 % |
| Colour | stainless steel |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Mounting mode | by screws, flush-mounted, surface mounted |
| Range | EcoStruxure Security Expert |
| Supply | via PoE, via external supply |
| Product or component type | intercom module |
| Standards | FCC CFR 47 part 15, ICES-003 |
| Number of outputs | 2 speaker |
| Ambient air temperature for operation | 5-55 °C |
| Height | 180 mm |
| Product brand | Schneider Electric |
| Product certifications | AS/NZS, ACMA, CE |
| Complementary | |
| Minimum signal to noise ratio | 60 dB |
| Display type | without display |
| Quality labels | RCM |
| Function available | auto-answer |
| Attenuation typical | -46 dB |
| Intercom type | intercommunication |
| Mechanical robustness | vandal-proof |
| Amplifier maximum power | 1.5 W |
| Microphone type | electret condenser omnidirectional |
| Microphone design | cylindrical Ø 6 mm |
