Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rated power in W | 300 W |
| Main Input Voltage | 230 V |
| Rated power in VA | 500 VA |
| Cable length | 6 ft |
| Number of cables | 1 |
| Curve proportional loss | 0 |
| UPS type | line interactive |
| Output voltage | 230 V |
| Number of tare power | 6 W |
| Curve load minimum | 1 % |
| Number of battery free slots | 0 |
| Curve square loss | 0.0038 |
| Curve X-axis title | load |
| Curve X-axis minimum | 0 % |
| Curve Y-axis maximum | 100 % |
| Curve Y-axis units | percentage |

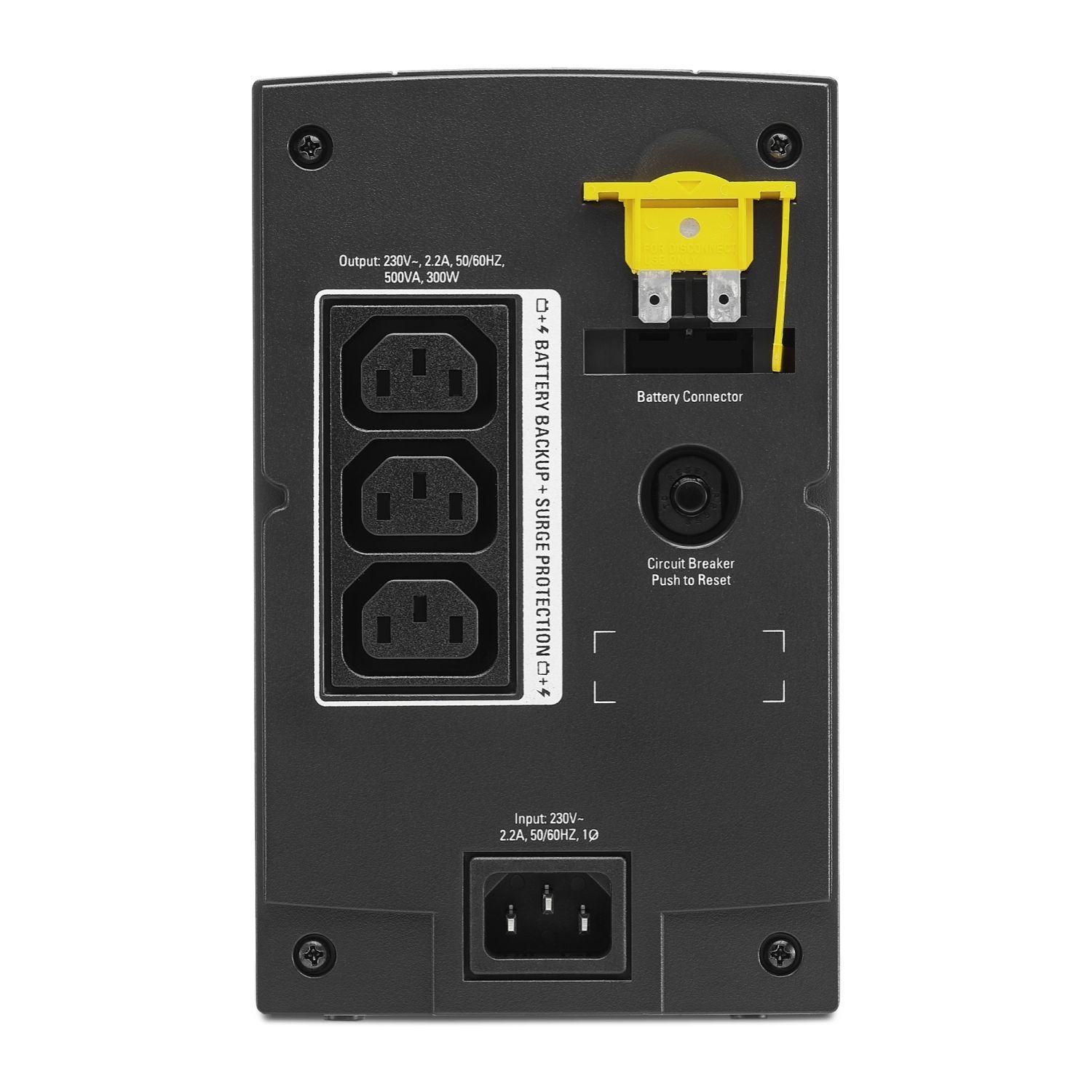

| Output connection type | 1 IEC Jumpers , 3 IEC 60320 C13 |
| Liquid value | 0 |
| Wave type | stepped approximation to a sinewave |
| Mounting preference | no preference |
| Battery charger power | 4700 W rated |
| Maximum input current | 2 A |
| Output frequency | 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised , 50 Hz sync to mains |
| Number of battery filled slots | 0 |
| Surge energy rate | 273 J |
| Curve Y-axis minimum | 50 % |
| Battery power in VAH | 47 VAh runtime |
| Curve fixed loss | 0.0098 |
| Curve X-axis maximum | 100 % |
| Curve X-axis units | percentage |
| Curve load maximum | 100 % |
| Curve test cond ID | Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output. |
| UPS size | WS |
| Number of power module filled slots | 0 |
| Two post mountable | 0 |
| Redundant | No |
| Battery curve | C |
| Curve Y-axis title | efficiency |
| Extended runtime | 0 |
| Transfer time | 6 ms typical : 10 ms maximum |
| Show note OP temperature | No |
| Maximum configurable power in VA | 500 VA |
| Maximum configurable power in W | 300 W |
| Curve equation | efficiency |
| Number of power module free slots | 0 |
| Environmental | |
| Operating altitude | 0...10000 ft |
| Acoustic level | 45 dBA |
| Relative humidity | 0-95 % |
| Ambient air temperature for storage | -15-45 °C |
| Storage altitude | 0-50000 ft |
| Ambient air temperature for operation | 0-40 °C |
| Storage Relative Humidity | 0-95 % |
| Physical | |
| Depth | 21.3 cm |
| Width | 11.5 cm |
| Colour | black |
| Mounting mode | not rack-mountable |
| Net weight | 5.2 kg |
| USB compatible | No |
| Height | 18.5 cm |
| Input | |
| Input voltage limits | 160...280 V |
| Network frequency | 45...65 Hz |
| Switching current capacity | 7 A |
| Output | |
| Graph display | 1 |
| Conformance | |
| Standards | EN/IEC 62040-2:2018, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-1:2019/A11:2021 |
| Product certifications | NEMKO, GOST, CE |
| Communications & Management | |
| Control panel | LED Status display with on line : on battery |
| Alarm | alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| General | |
| Max runtime | 28 min |
| Provided equipment | user manual |
