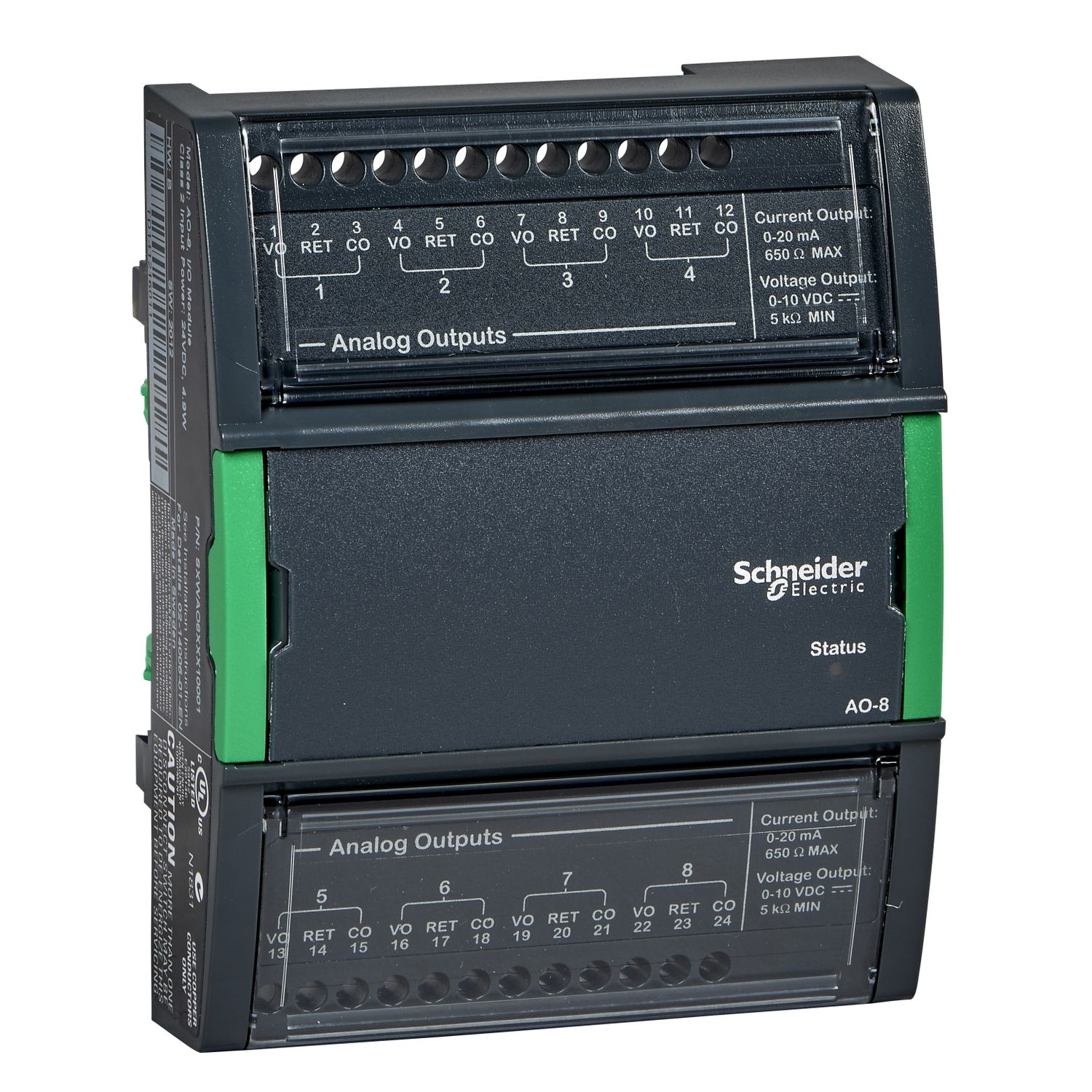

The SpaceLogic AO-V-8 is an analog output, 8 channel I/O expansion module for the SpaceLogic AS-P Server. The analog outputs are capable of supporting analog voltage or current point types. They support a wide range of devices, such as actuators. The AO-V-8 I/O expansion module features 8 analog voltage outputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP20 |
| Device short name | AO-8-V |
| Depth | 64 mm |
| Width | 90 mm |
| Relative humidity | 0-95 % non-condensing |
| Ambient air temperature for storage | -20-70 °C |
| Flame retardance | UL94V0-5VB |
| Range | EcoStruxure Building Operation |
| Net weight | 156 g |
| Product name | I/O Modules |
| Product or component type | I/O module |
| Number of outputs | 8 analog output |
| Power consumption in W | 0.7 W |
| Ambient air temperature for operation | 0-50 °C |
| Height | 114 mm |
| [Us] rated supply voltage | 24 V DC |
| Product brand | Schneider Electric |
| Product certifications | RCM, CE, FCC part 15 class B, ICES-003 |
| Complementary | |
| Analogue input type | configurable voltage 0...10 V input voltage |
| Electrical connection | plug-in sub-base |
| Material | ABS + PC |
| Control type | without |
| Range compatibility | EcoStruxure Building Operation TB-IO-W1 terminal base |
| Standards | FCC CFR47 part 15, UL 916, UL 864 |
| Mounting support | wall, DIN rail |
