| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RP-C-RC-BLE |
| [Us] rated supply voltage | 3 V DC |
| Range | EcoStruxure Building Operation |

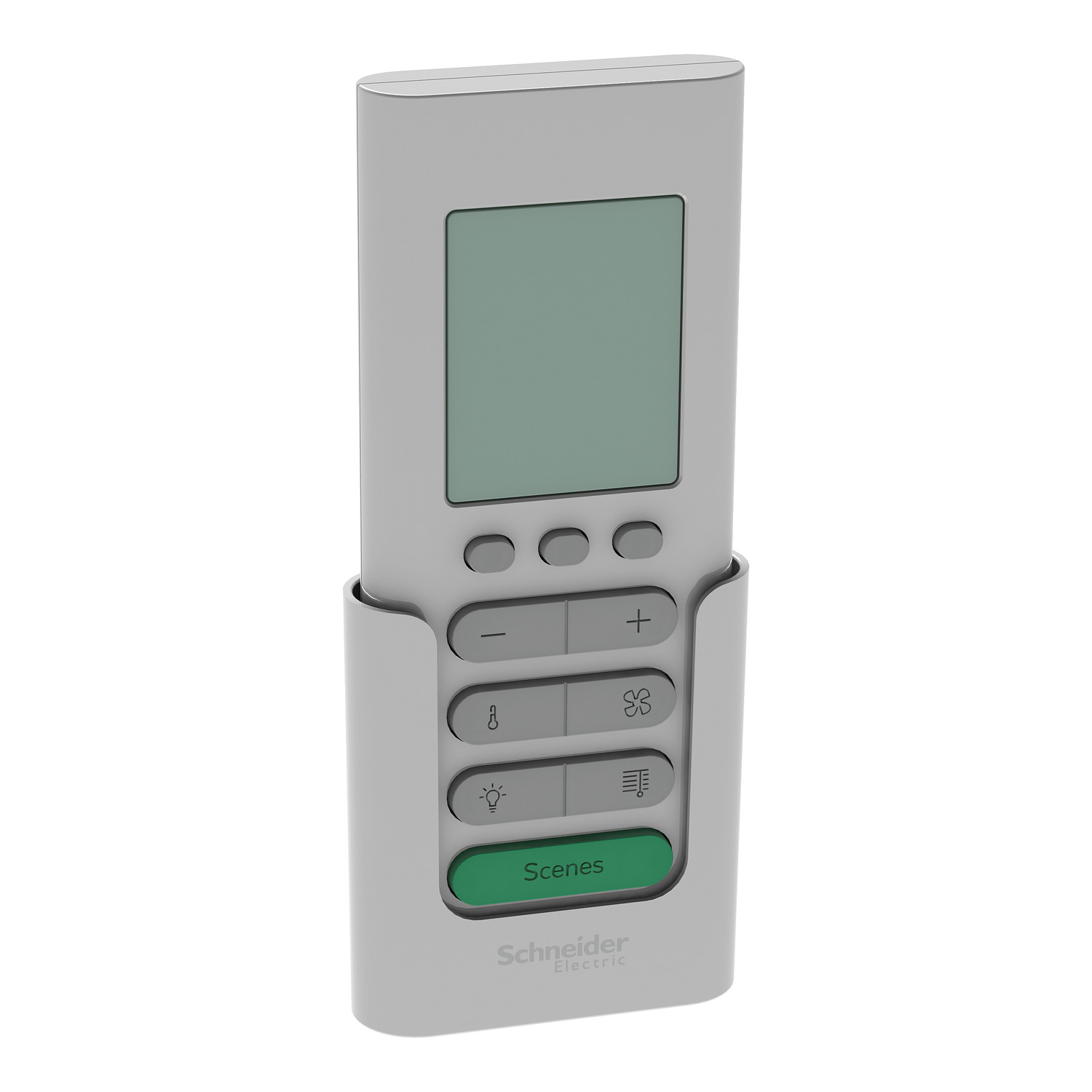

| Product name | SmartX Room Purpose Controller |
| Product or component type | remote control |
| Product brand | Schneider Electric |
| Complementary | |
| Depth | 18 mm |
| Range compatibility | EcoStruxure Building Operation software |
| Display type | FSTN monochrome LCD |
| Width | 57 mm |
| Display size | 1.4 x 1.7 inch |
| Mounting support | on fixing base, partition wall, wall |
| Function available | fan speed control, temperature adjustment, blind control, light control |
| Communication port protocol | Bluetooth 5.0 LE |
| Display resolution | 128 x 96 pixels |
| Height | 143 mm |
| Environment | |
| IP degree of protection | IP30 |
| Relative humidity | 20-90 %, non-condensing |
| Ambient air temperature for storage | 0-40 °C |
| Electromagnetic compatibility | immunity to electromagnetic emissions conforming to EN 61000-6-2, immunity to electromagnetic emissions conforming to EN 50491-5-3, electromagnetic emission class B conforming to FCC part 15 Subpart B, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3 |
| Ambient air temperature for operation | 0-40 °C |
| Product certifications | RCM |
| Standards | EN 50491-3, EN 60730-2-11, EN 60730-1, EN 62479:2010, EN 62311:2008, EN 62368-1:2014, EN 60950 |
