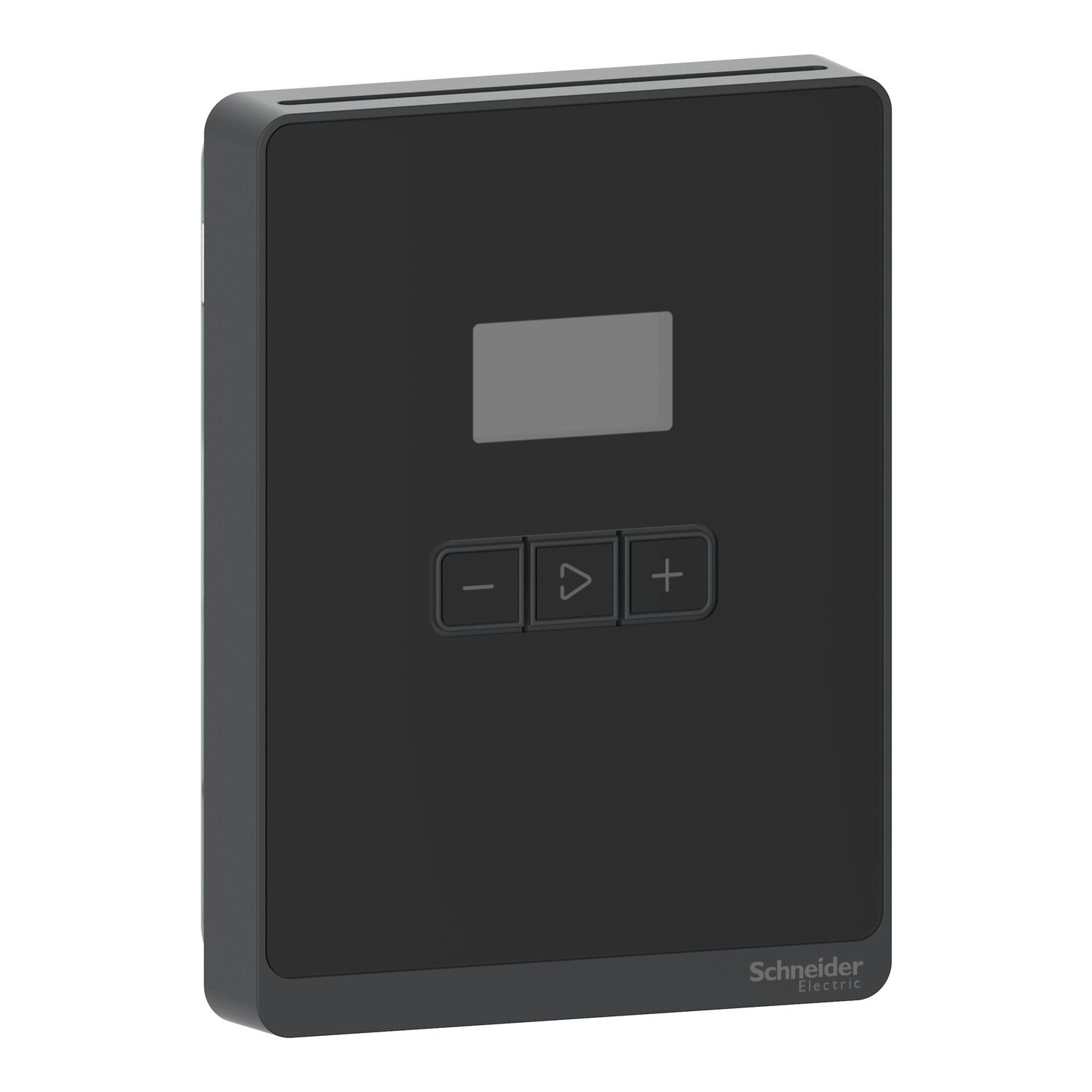

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP20 |
| Device application | fan speed controller, temperature control, HVAC |
| Depth | 24 mm |
| Colour | black |
| Width | 85 mm |
| Sensor type | transmitter |
| Relative humidity | 0-95 % |
| Product specific application | heating, cooling |
| Display size | 30 x 17 mm |
| Function available | setpoint adjustment, override switches |
| Flame retardance | UL94-V0 |
| Range | SpaceLogic |
| Location | living space |
| Product name | SmartX Living Space Sensor |
| Ambient air temperature for operation | 0-50 °C |
| Product or component type | sensor |
| Type of measurement | temperature |
| Surface finish | glossy |
| Standards | FCC part 15 class B, UL 916 |
| Height | 115 mm |
| Complementary | |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Max power consumption in W | 2 W |
| Control type | present/absent symbol button, - button, + button |
| [Us] rated supply voltage | 24 V DC |
| Device presentation | complete product |
| Local signalling | 1 red, green and blue LED modulating , function: heating or air-conditioning application |
| Display type | LCD display |
| Range compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
| Communication port support | RJ45 |
| Information displayed | heating/cooling symbol, operating mode, temperature |
| Environment | |
| Temperature setting range | 0-50 °C |
| Product certifications | ICES-003, EAC, RCM, CE conforming to EN 61000-6-3 |
| Measurement range | 0...50 °C temperature |
