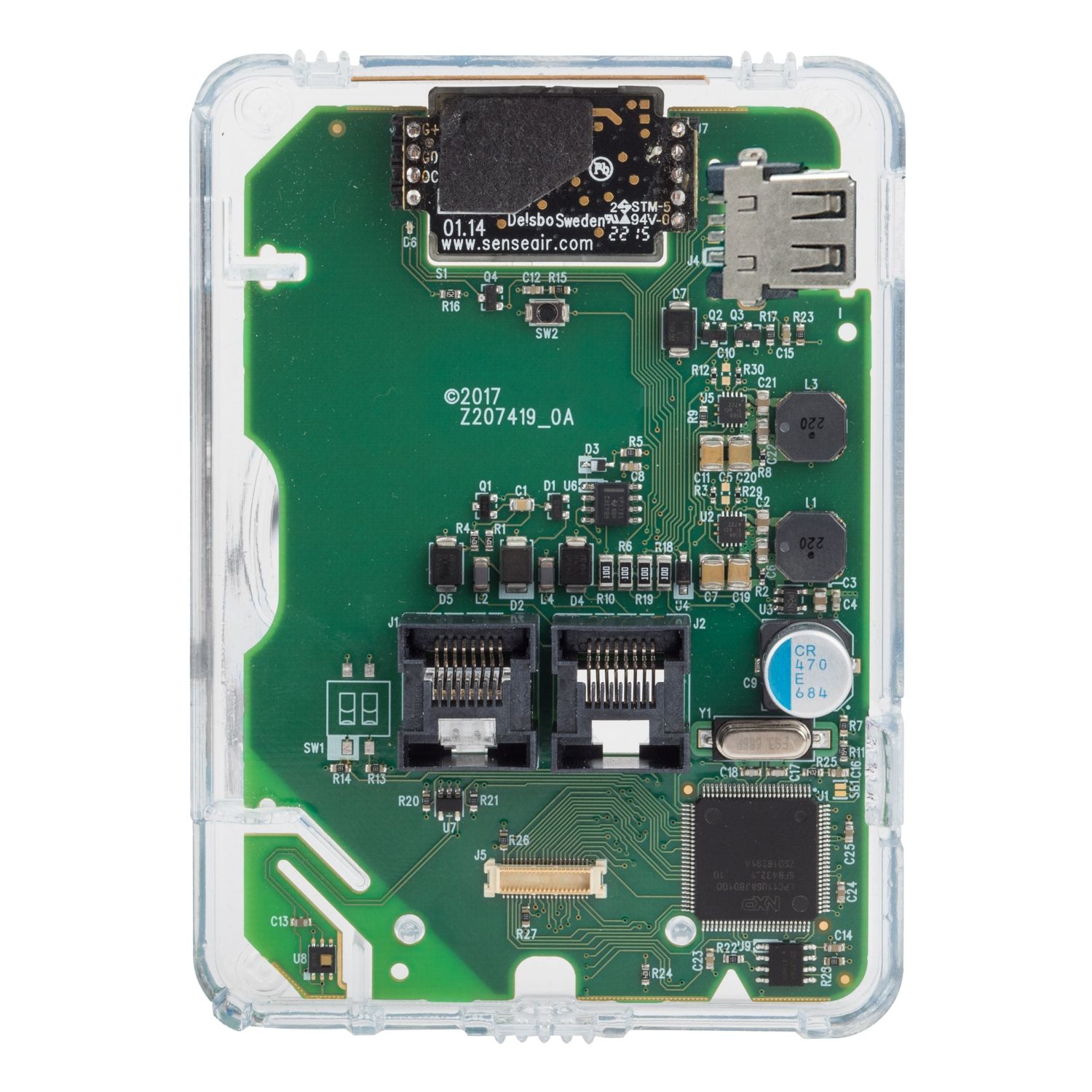

Sensor Base for SmartX IP Controllers Temp, Humidity - Cover not included

Manufacturer: Schneider Electric

SKU: SXWSBTHXXSXX

GTIN: 3606489507244

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $610.50 inc GST

Price: $807.39 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller. Without housing. This base include a temperature element.

Products specifications

Attribute name	Attribute value
Main
IP degree of protection	IP20
Depth	20.7 mm
Colour	white
Display type	without display
Width	81.2 mm
Sensor type	transmitter
Flame retardance	UL94-V0
Device presentation	without cover
Range	SpaceLogic
Location	living space
Product name	SmartX Living Space Sensor
Product or component type	sensor
Type of measurement	temperature, humidity
Product certifications	ICES-003, EAC, RCM, CE conforming to EN 61000-6-3
Standards	FCC part 15 class B, UL 916
Ambient air temperature for operation	0-50 °C
Height	111.6 mm
[Us] rated supply voltage	24 V DC
Complementary
Material	ABS (acrylonitrile butadiene-styrene) GF10 FR
Max power consumption in W	2 W
Function available	with humidity sensor, with temperature sensor
Communication port support	RJ45
Hysteresis	1.5 %
Output type	sensor bus
Supply	via bus connector
Range compatibility	EcoStruxure Building Operation SmartX Living Space Sensor sensor coverplate, EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
