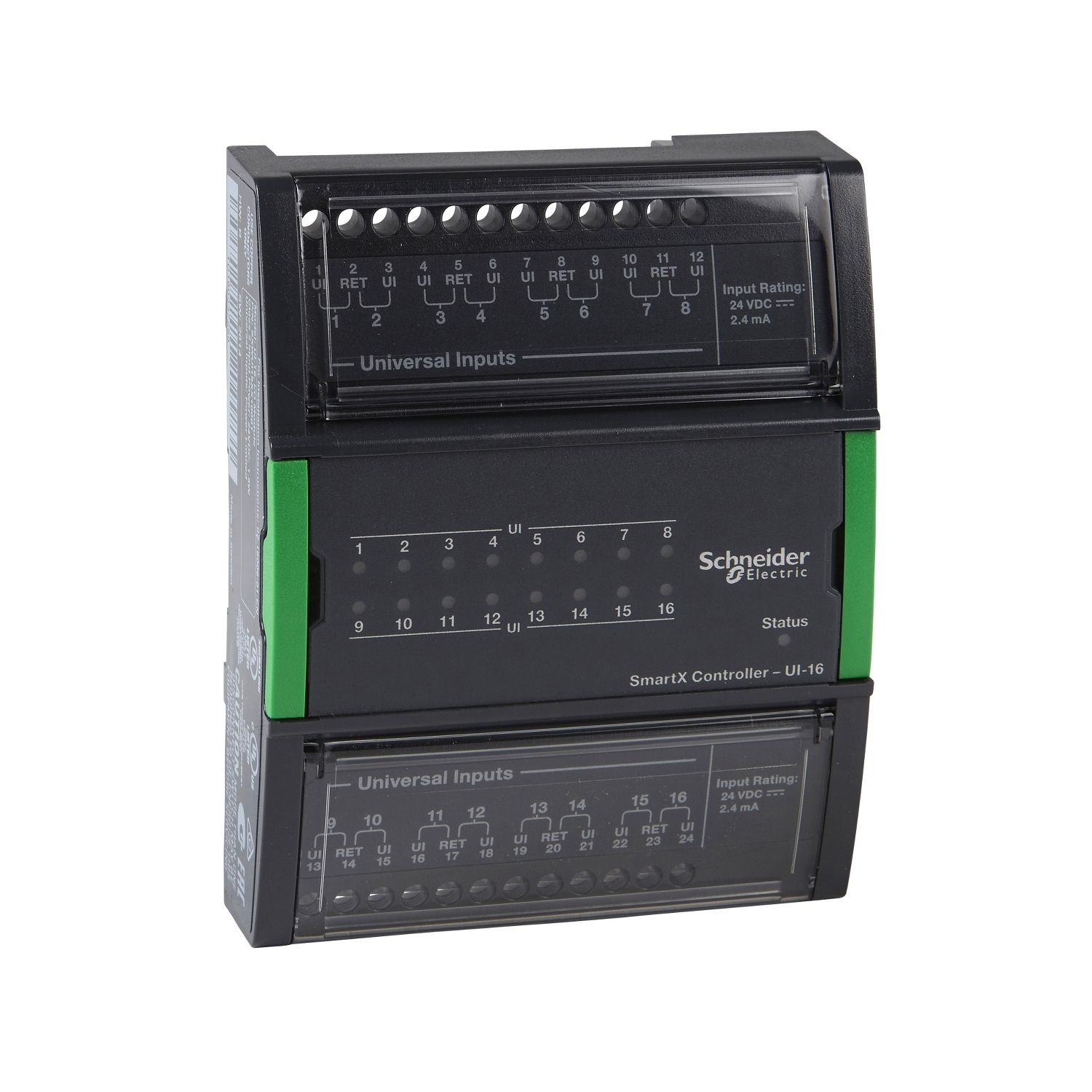

The SpaceLogic UI-16 is a universal input, 16 channel I/O expansion module for the SpaceLogic AS-P Server. The universal inputs are ideal for any mix of temperature, pressure, flow, status points and similar point types in a building control system. The UI-16 I/O expansion module features 16 universal inputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP20 |
| Device short name | UI-16 |
| Depth | 64 mm |
| Width | 30 mm |
| Relative humidity | 0-95 % non-condensing |
| Power consumption in VA | 1.8 W |
| Ambient air temperature for storage | -20-70 °C |
| Flame retardance | UL94V0-5VB |
| Range | EcoStruxure Building Operation |
| Net weight | 146 g |
| Product name | I/O Modules |
| Input/output type | universal input |
| Product or component type | I/O module |
| Ambient air temperature for operation | 0-50 °C |
| Height | 114 mm |
| Product brand | Schneider Electric |
| Product certifications | RCM, CE, FCC part 15 class B, ICES-003 |
| Complementary | |
| Analogue input type | configurable voltage, current or probe 10 kOhm with shunt, configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...20 mA |
| Product compatibility | Satchwell, Johnson Control, Honeywell, Continuum, Xenta, Balco, I/NET |
| Electrical connection | plug-in sub-base |
| Material | ABS + PC |
| Discrete input number | 16 |
| Control type | without |
| Local signalling | LED (green/red) for low signal level, LED (green/red) for high signal level |
| Range compatibility | EcoStruxure Building Operation TB-IO-W1 terminal base |
| Standards | FCC CFR 47 part 15, UL 916, UL 864 |
| Mounting support | wall, DIN rail |
| Discrete input voltage | 24 V |
Only registered users can write reviews
Related products

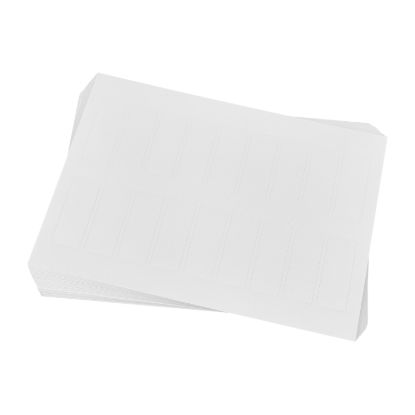

Adhesive labels, SpaceLogic, A4-size blank printable, 100 Sheets, 18 labels per sheet
SXWTERLBL10011
Adhesive labels, SpaceLogic, A4-size blank printable, 100 Sheets, 18 labels per sheet
$1,353.00 inc GST
$1,789.34 inc GST

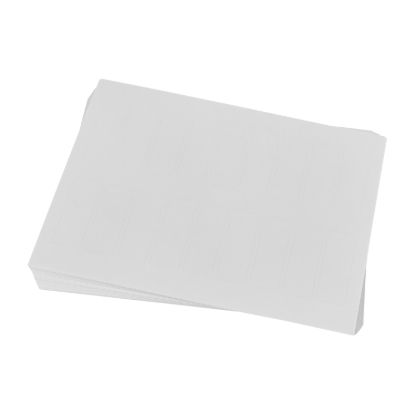

Adhesive labels, SpaceLogic, letter-size blank printable, 100 sheets, 16 labels per sheet
SXWTERLBL10012
Adhesive labels, SpaceLogic, letter-size blank printable, 100 sheets, 16 labels per sheet
$1,353.00 inc GST
$1,789.34 inc GST
DIN-rail end clip, SpaceLogic, package of 25 pieces
SXWDINEND10001
DIN-rail end clip, SpaceLogic, package of 25 pieces
$189.20 inc GST
$250.22 inc GST
Power supply module, SpaceLogic, 24VAC or 21-30VDC, for AS-P and I/O modules
SXWPS24VX10001
Power supply module, SpaceLogic, 24VAC or 21-30VDC, for AS-P and I/O modules
$541.20 inc GST
$715.74 inc GST

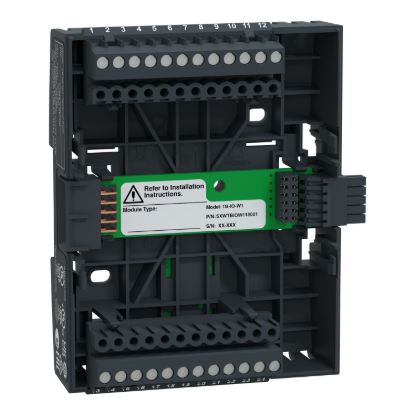

Terminal base, SpaceLogic, required for I/O modules
