Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Transmission rate | <= 256 kbits/s |

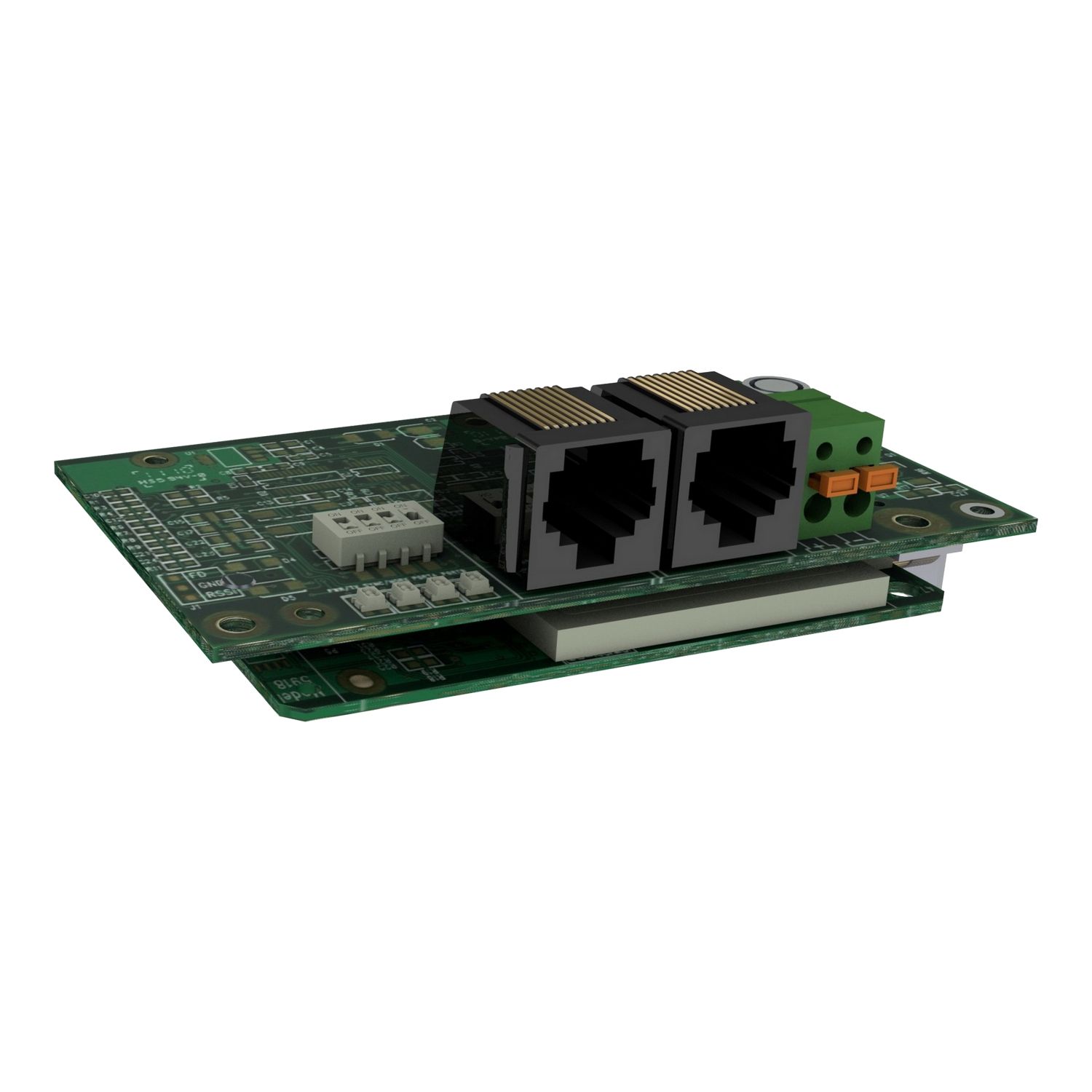

| Product or component type | remote radio |
| Range of product | Trio License Free Radios |
| Network frequency | 915...928 MHz (Australia) |
| Complementary | |
| Radio power | 30.0 dBm |
| Net weight | 0.3 kg |
| Length | 130.2 mm |
| Width | 100.0 mm |
| Channel access management | channelshare collision avoidance |
| Housing material | sheet steel |
| Connector type | power supply: 1.0 x screw terminal (2.0 poles) |
| Power range | 1.7 W: receive, 10 W: transmit |
| Mounting support | DIN rail |
| Height | 34.5 mm |
| Function available | diagnostic via TVIEW software, configuration via TVIEW software |
| Integrated connection type | antenna, TNC socket, 2 serial port, DE-9 RS232/RS485, 300...115200 bps |
| Input voltage | 10...30 V DC |
| Environment | |
| IP degree of protection | IP41 |
| Relative humidity | 5-95 % 40 °C |
| Standards | CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group A, AS/NZS 4268 |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -40-70 °C |
| Product certifications | CSA |
