Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Radio power | 40.0 dBm |
| Network frequency | 450...518 MHz (H-Band) |

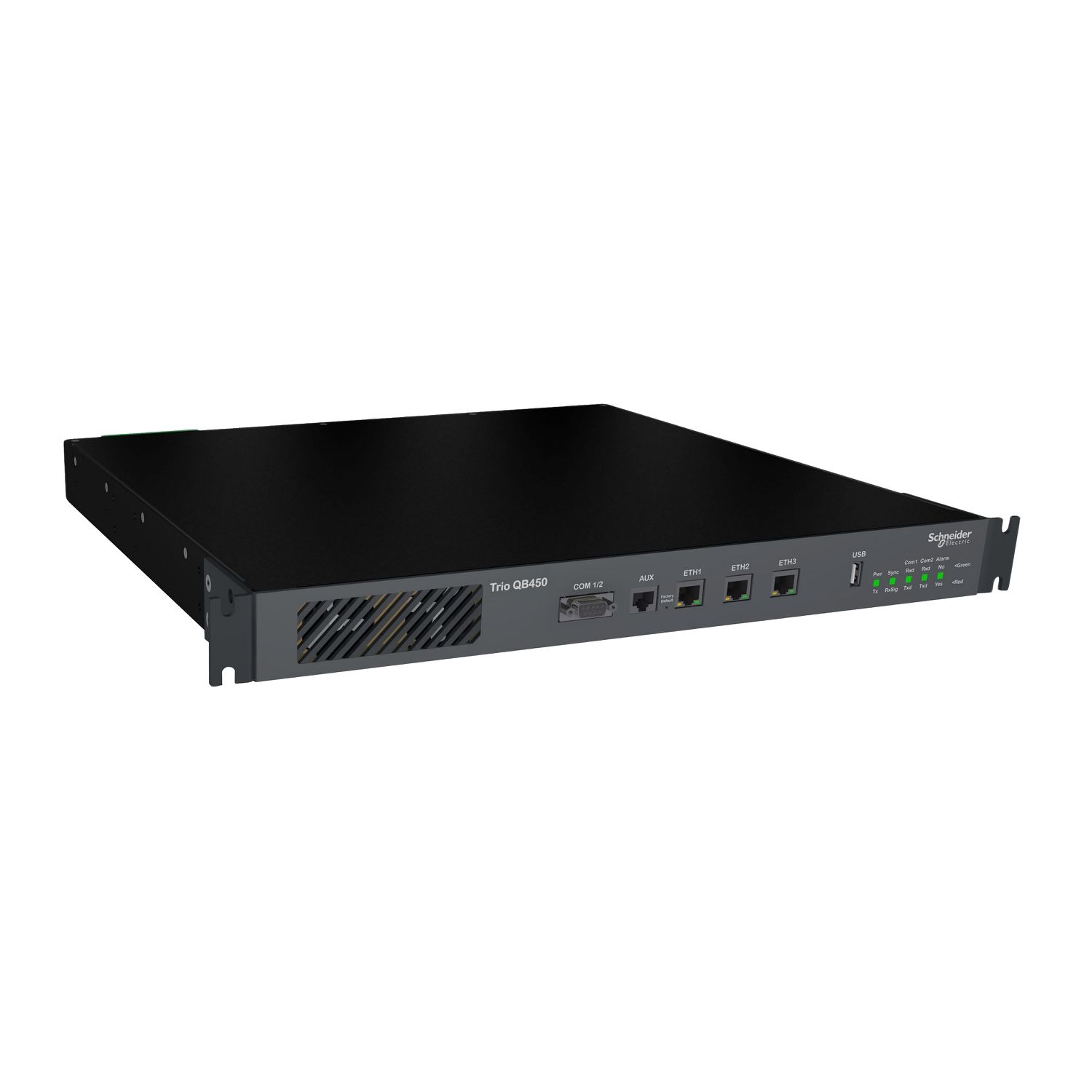

| Product or component type | base radio |
| Transmission rate | 25.0 kHz at < = 120 kbit/s, 12.5 kHz at < = 60 kbit/s |
| Power range | 14 W: receive, 59 W: transmit |
| Range of product | Trio Licensed Radios |
| Complementary | |
| Width | 45.0 mm |
| Cybersecurity | certificate based authentication, RADIUS based user authentication |
| Communication gateway | Modbus gateway |
| Encryption protocol | AES-GCM, AES 256 |
| Ethernet service | VLAN |
| Communication port protocol | SSH, Telnet, HTTPS, HTTP, ICMP, SNMP v2, SNMP v1, SNMP v3, UDP (User Datagram Protocol), TCP (Transmission Control Protocol) |
| Function available | diagnostic with Telnet/SSH, diagnostic via web server, remote configuration with Telnet/SSH, configuration via web server, QoS-based automatic RF speed Selection |
| Integrated connection type | antenna, N socket, USB port, USB type A, 2 serial port, DE-9 RS232/RS485, 300...115200 bps, Ethernet port, 2 RJ45, 10/100 Mbps |
| Input voltage | 11...30 V DC |
| Forward error correction | dynamic truncated interleaved BCH encoding |
| Net weight | 5.0 kg |
| Length | 436.0 mm |
| Operating mode | layer-3 IP router mode, layer-2 ethernet bridge mode |
| Channel access management | token grant channel management |
| Exchange mode | half duplex |
| Connector type | power supply and digital input/output: 1.0 x screw terminal (10.0 poles) |
| Communication service | time stamped events management, TCP/UDP serial server, SNMP client/server, NTP client/server, Robust Header Compression, Quality of Service (QoS), NAT router |
| Mounting support | 19" rack |
| Modulation Technique | 64-QAM, 16-QAM, O-QPSK |
| Height | 424.0 mm |
| Environment | |
| IP degree of protection | IP50 |
| Housing material | sheet steel |
| Relative humidity | 5-95 % 40 °C |
| Ambient air temperature for storage | -40-85 °C |
| Standards | RSS GEN, AS/NZS 60950-1, AS/NZS 4295, RSS 119, RSS 102, FCC CFR 47 part 90, FCC CFR 47 part 15, EN 300 019-3, EN 300 019-2, EN 50383, EN 50385, EN 60950, ETSI EN 301 489, ETSI EN 302 561, ETSI EN 300 113 |
| Ambient air temperature for operation | -40-70 °C |
