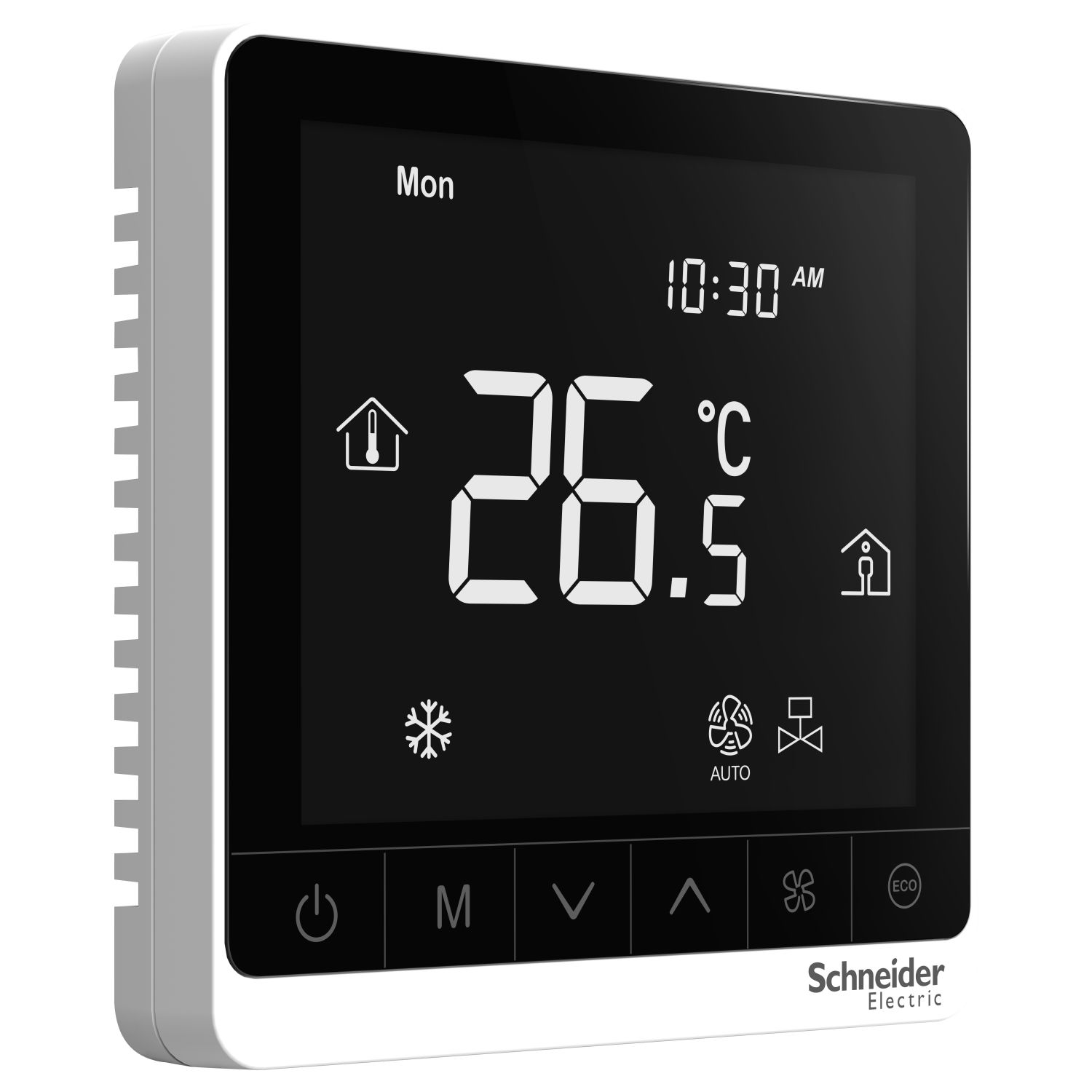

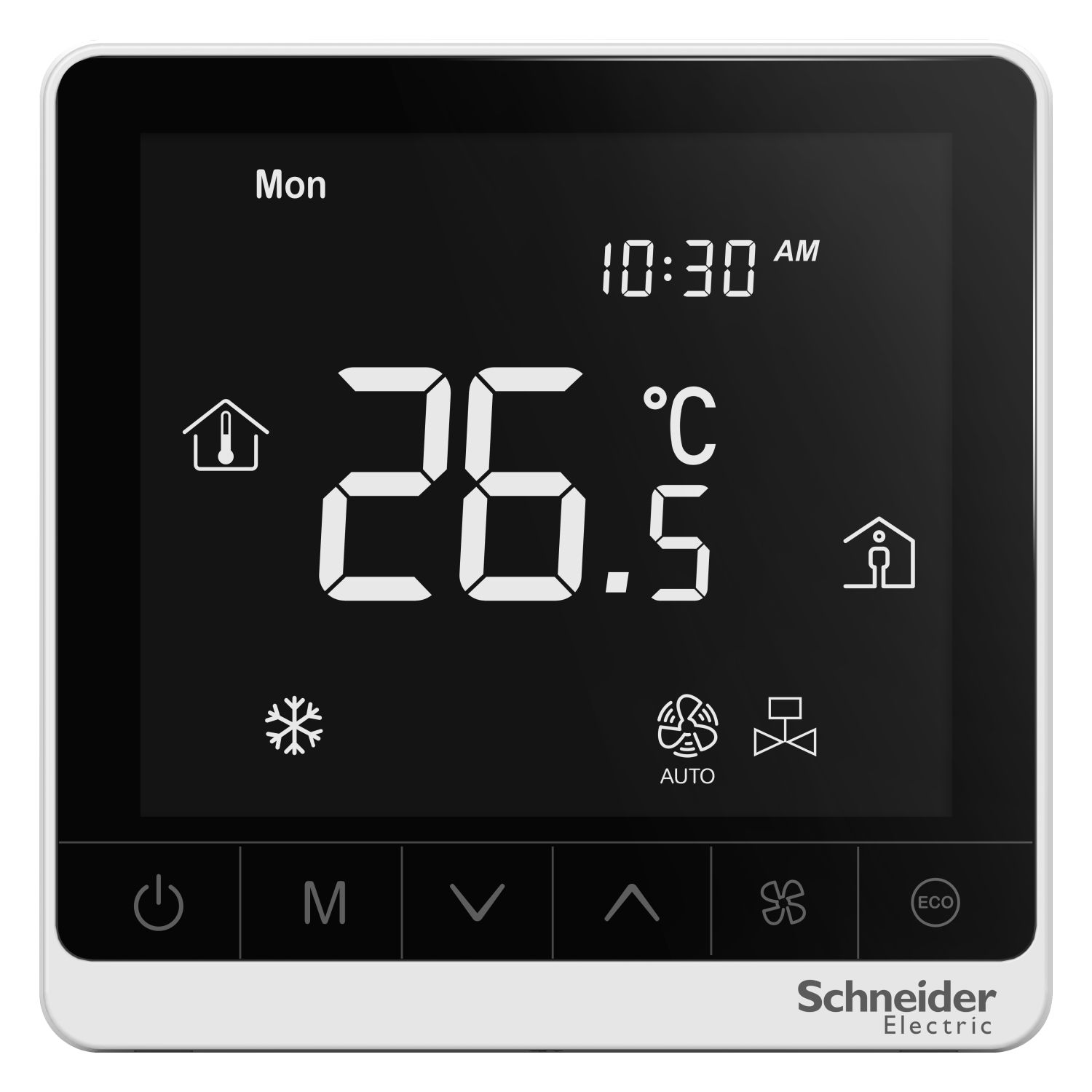

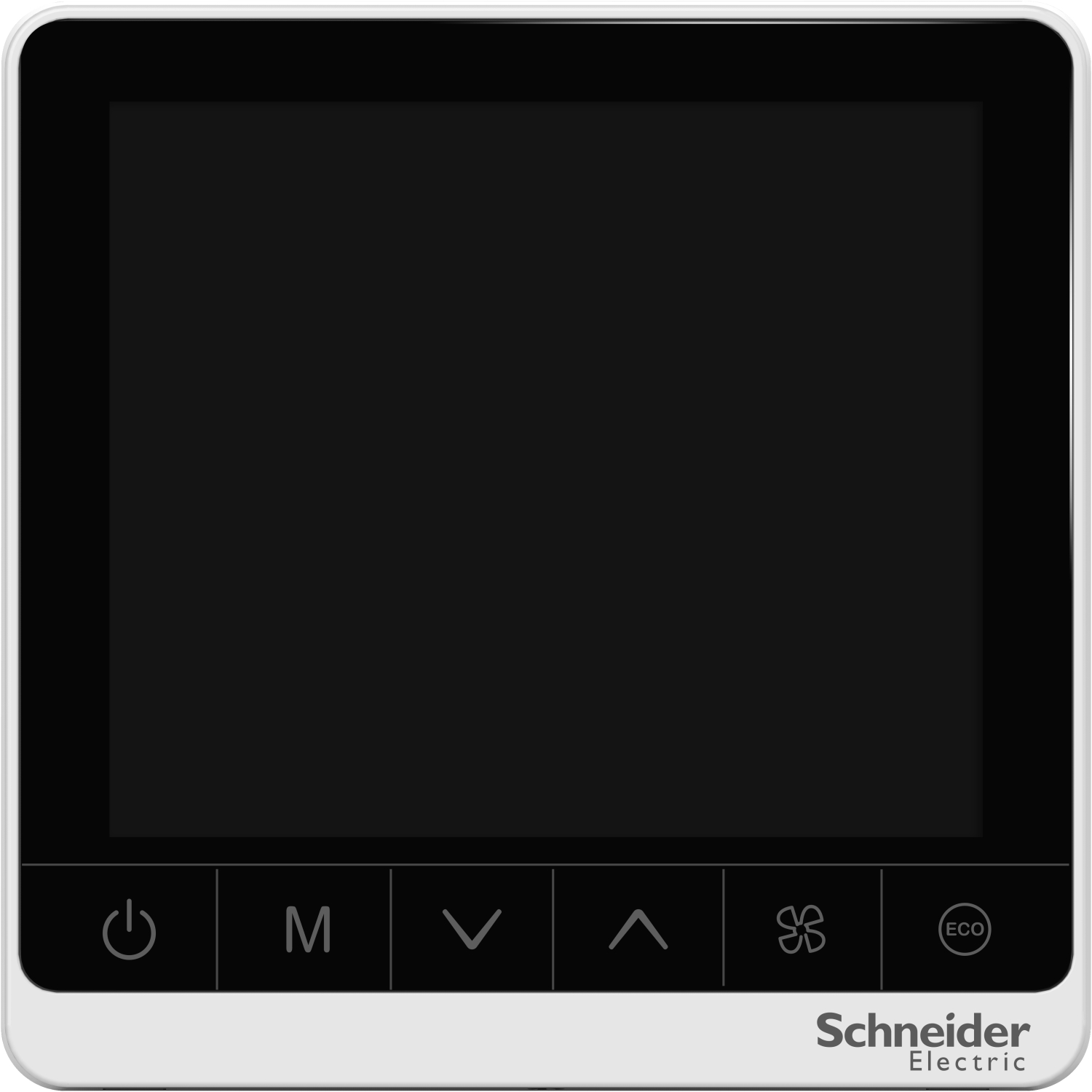

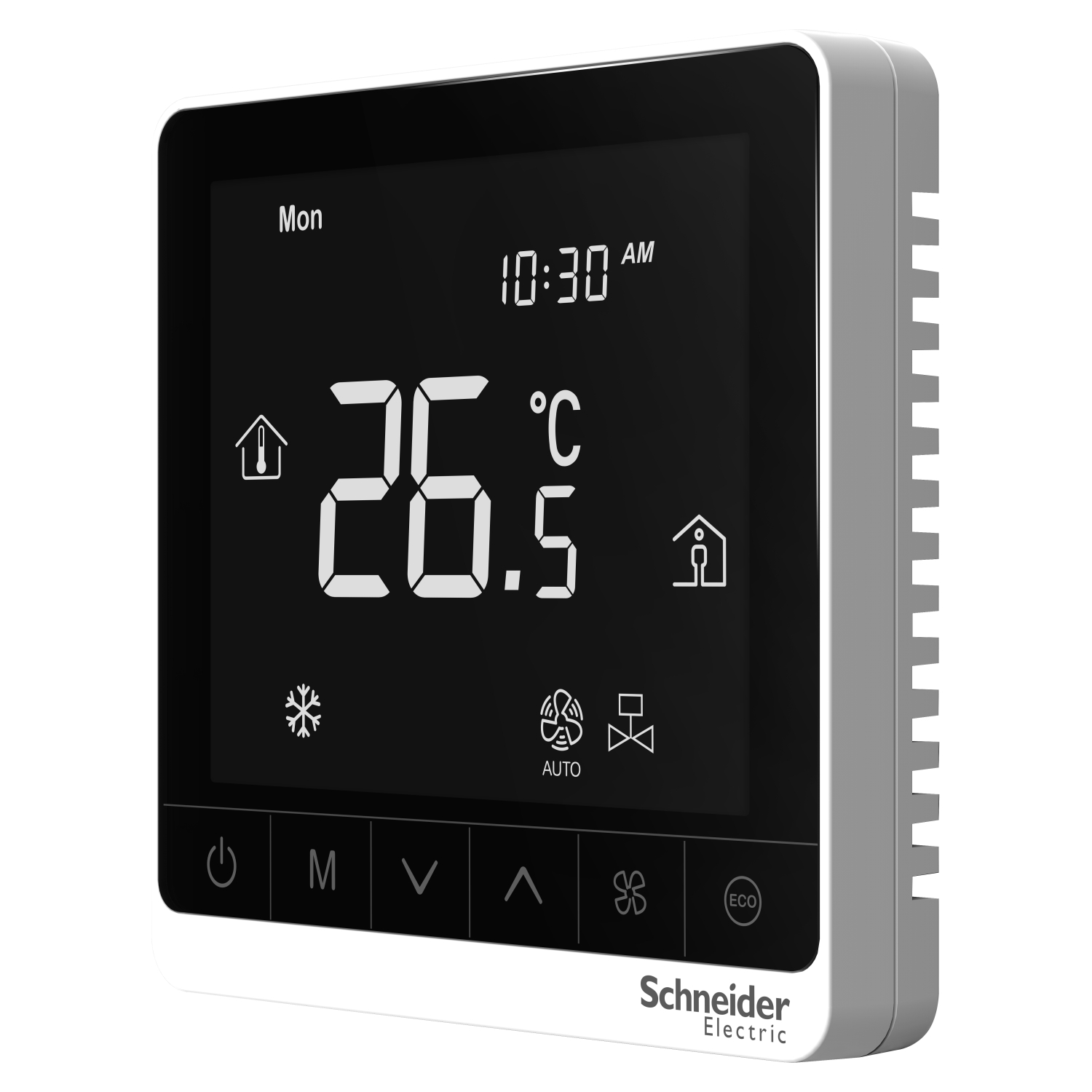

SpaceLogic thermostat, fan coil proportional, standalone, touchscreen, 4P, 3 fan, external sensor, 240V, white
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TC907 |
| Sensor type | optional NTC external sensor, 100 kOhm NTC thermistor |
| Range | SpaceLogic |
| Product name | SpaceLogic TC900 |
| Product or component type | thermostat |
| Complementary | |
| Device application | fan |
| Depth | 40 mm |
| Market segment | residential, healthcare, hotel, small buildings |
| Display type | backlit LCD screen |
| Width | 86 mm |
| Product specific application | 4-pipe system |
| Max power consumption in W | 1 W |
| Measurement accuracy | temperature: +/- 1 °C, |
| Control type | 3 speed control relay, for fan, pulse width modulation, for actuator, touch screen, for thermostat |
| Colour | black |
| [Us] rated supply voltage | 90...240 V AC 50/60 Hz |
| Function available | sleep mode, low temperature protection, alarm, disable functions, economiser, mode selection, fan control, setpoint adjustment |
| Connections - terminals | screw terminal (back) - 1 cable(s) 2.5-2.5 mm², screw terminal (back) - 2 cable(s) 1.5-1.5 mm² |
| Number of inputs | 1 card reader |
| Communication port protocol | - |
| Output voltage | 240 V AC 2 A for load, 240 V AC 5 A for relay |
| Height | 86 mm |
| Information displayed | current program, communication status ok, temperature alarm, day, time, ambient room temperature 0 to 50 °C |
| Network frequency | 60 Hz, 50 Hz |
| Housing colour | white |
| Environment | |
| IP degree of protection | IP20 |
| Temperature setting range | 5-35 °C |
| Relative humidity | 5-95 % |
| Product certifications | CE |
| Pollution degree | 2 |
| Standards | EN/IEC 60730-2-9, EN/IEC 60730-1 |
| Ambient air temperature for operation | 0-50 °C |
