Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Concept | Transparent Ready |
| Cybersecurity | port hardening |
| Communication port protocol | MRP (Media Redundancy Protocol), SNTP, Telnet, LLDP, RS232, SNMP, HTTPS, HTTP, SSH, Ethernet TCP/IP |

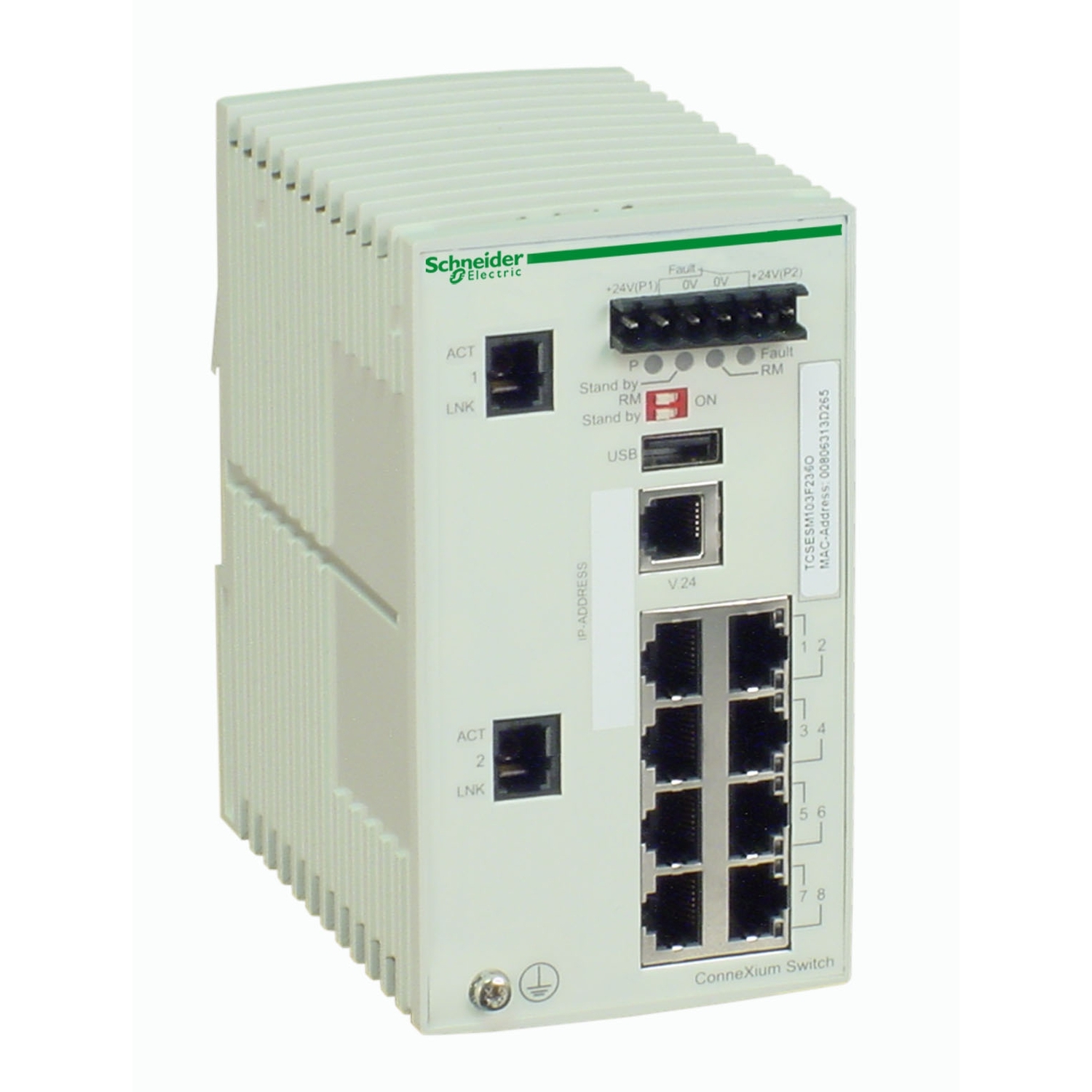

| Product or component type | Ethernet TCP/IP managed switch |
| Port Ethernet | 10/100/1000 BASE-TX - 2 port(s) copper (Gbit), 10/100BASE-TX - 8 port(s) copper cable |
| Range of product | ConneXium |
| Maximum number of switches in cascade | unlimited |
| Complementary | |
| Depth | 111 mm |
| Width | 74 mm |
| Diagnostics run time | self test, signal contact |
| Local signalling | Device status, 1 LED per channel (yellow) for ACT, 1 LED per channel (green) for link status, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies |
| Supply voltage limits | 18-30 V AC SELV, 9.6-60 V DC SELV |
| Ethernet cabling system | TF switches |
| Ethernet service | SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, VLAN, configuration via web server |
| Function available | Trap log, report, system information, alarms (Traps) |
| Maximum number of switches in a ring | 50 |
| Electrical connection | removable connector 6 ways power supply |
| Net weight | 0.41 kg |
| Redundancy | redundant network coupling, RSTP, HiPER ring |
| Alarm output | 1 voltfree contact 1 A |
| Marking | EtherNet/IP, RCM, UL, CE |
| Communication service | address conflict detection, port mirroring, port monitoring, Quality of Service (QoS), TFTP |
| Power consumption in W | 8.9 W |
| Mounting support | 35 mm symmetrical DIN rail |
| Transmission support medium | twisted shielded pairs cable CAT 5E for copper cable |
| Integrated connection type | shielded RJ45 copper cable |
| Alarm function | switch fault, redundancy ring fault, data link status, power supply fault |
| Height | 131 mm |
| [Us] rated supply voltage | 12...48 V |
| Maximum cable distance between devices | 100 m copper cable |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 10-95 % non-condensing |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | GL, BV, ODVA EtherNet/IP, RCM, UL, CE |
| Standards | IEC 61850-3, EN/IEC 61131, UL 508 |
| Ambient air temperature for operation | 0-60 °C |
