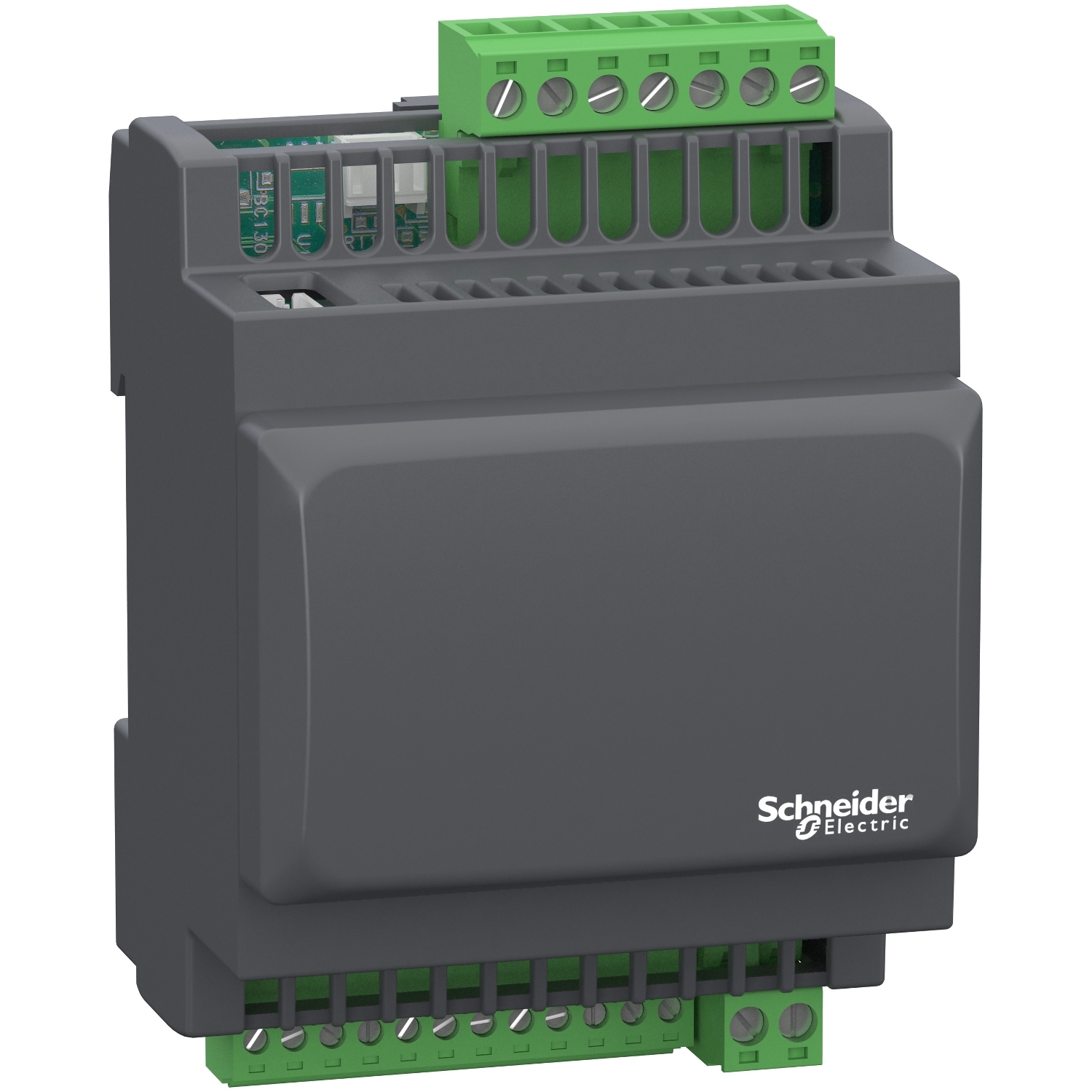

Modicon M171 Optimized expansion 14 I/Os, 100-240Vac

Manufacturer: Schneider Electric

SKU: TM171EO14R

GTIN: 3606480752674

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Brochure

Old price: $296.45 inc GST

Price: $358.70 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This additional I/O module offers 2 digital inputs, 5 configurable analog inputs, 4 digital outputs, and 5 analog outputs. It has one port for LAN expansion bus. This module offers Additional I/O to the M171 controller. DIs are open collectors and AIs are NTC, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V. DOs are SPST or SPDT (2A, 230Vac), AOs are open collectors for 12V PWM/PPM, 0-10V, or 4-20mA. It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.385kg. This controller is designed for HVAC solutions. It is certified by CE, CSA, EAC, RCM, and CuRus. It is compatible with M171 optimized controllers. It is sold in a 1-piece package. It mounts on 35mm DIN rail. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name	Attribute value
Main
Product specific application	HVAC and pumping solution
Discrete input number	2
Analogue input number	2 configurable, 3 analog input NTC/Pt 1000
Discrete output current	2 A for relay
Number of inputs/outputs	14
Product or component type	additional I/O module
Discrete output number	3 for relay outputs SPST with same common, 1 for relay outputs SPDT with independent common
Range of product	Modicon M171/M172
Analogue output number	1 current, range: 0...20 mA/4...20 mA, 2 PWM/PPM, range: 20 kHz, 12 V, 35 mA, 2 voltage, range: 0...10 V
Complementary
Discrete input logic	sink or source (positive/negative)
Input/output number	5 analog input(s), 4 digital output(s), 5 analog output(s)
Depth	61.6 mm
Overvoltage category	II
Analogue input type	voltage 0...1 V, current 0...20 mA/4...20 mA, Pt 1000 temperature probe - 50...400 °C - resolution: 0.1 °C, NTC temperature probe - 50...100 °C - resolution: 0.1 °C, voltage 0...10 V, voltage 0...5 V (ratiometric)
Realtime clock	built-in clock at -10-55 °C
Width	70.2 mm
Local signalling	1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	12-12 V DC at 85 mA
[Us] rated supply voltage	100...240 V +/- 10 % AC/DC
Number of port	1 LAN expansion bus
Net weight	0.385 kg
Display type	without display
Mounting support	DIN rail
Height	87 mm
Contacts usage	volt-free contacts
Power consumption in W	7 W
Environment
IP degree of protection	IP20
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-20-85 °C
Directives	2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
Ambient air temperature for operation	-10-55 °C conforming to UL 60730-1
Pollution degree	2
Standards	EN/IEC 60730
Product certifications	CE, CSA, cURus, EAC
