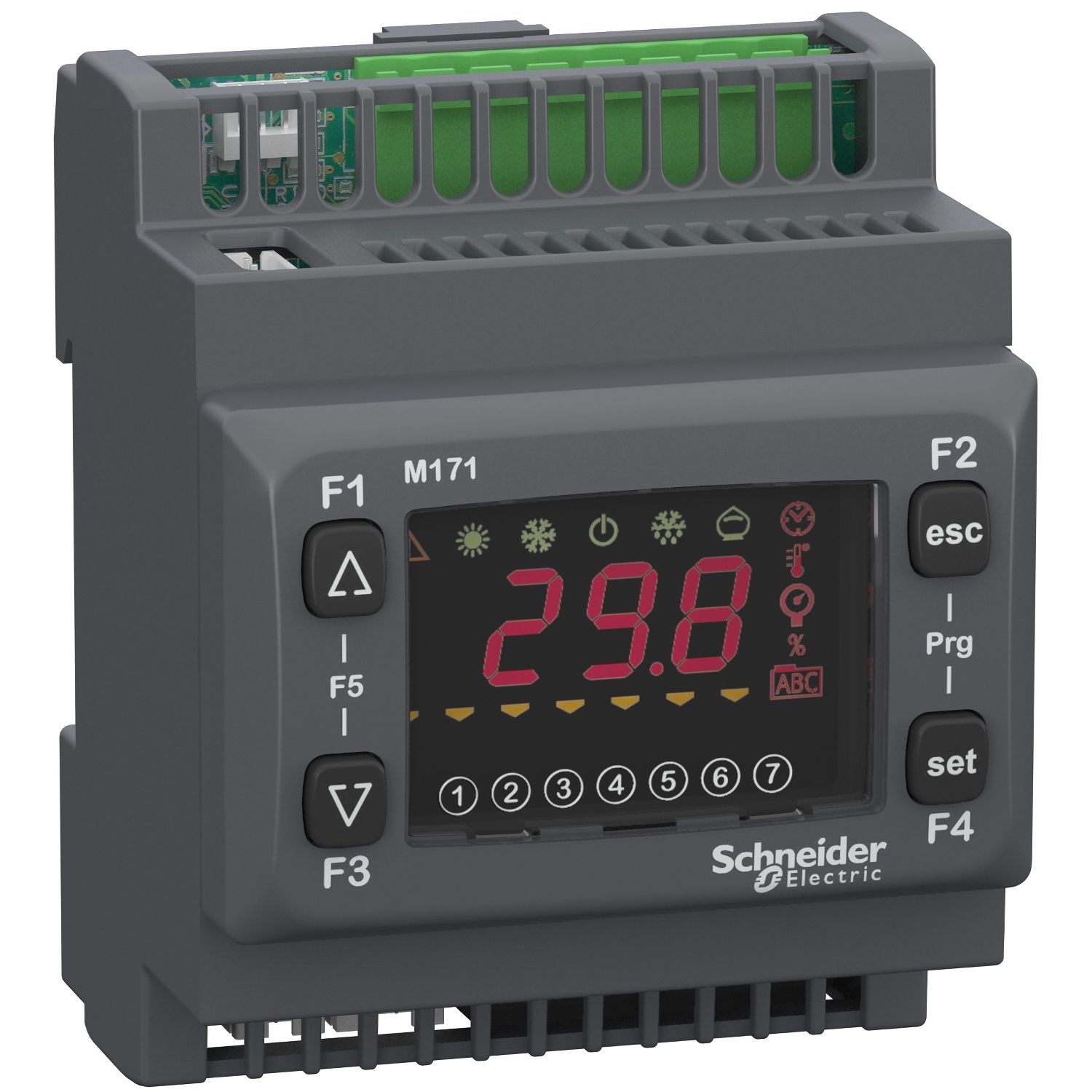

Controller, Modicon M171/M172/M173, optimized display 22 IO, Modbus

Manufacturer: Schneider Electric

SKU: TM171ODM22R

GTIN: 3606480752780

Catalog

User guide

Environmental Disclosure

Instruction sheet

Brochure

Circularity Profile

Availability: Out of stock

Old price: $436.70 inc GST

Price: $528.41 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 74mm (width) x 76mm (depth) x 32mm (height). It weighs 0.164kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	2 A for relay
Number of inputs/outputs	22
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	6
Analogue input number	3 analog input NTC, 2 configurable
Product or component type	controller
Variant	programmable
Discrete output number	2 for relay outputs SPST with independent common, 3 for relay outputs SPST with same common, 1 for open collector
Analogue output number	3 voltage, range: 0...10 V, 2 PWM/PPM
Complementary
Input/output number	6 digital output(s), 5 analog input(s), 6 digital input(s), 5 analog output(s)
[Us] rated supply voltage	24 V +/- 10 % DC, 12...24 V +/- 10 % AC
Display type	four 7-segment display units
Height	32 mm
Discrete input logic	sink or source (positive/negative)
Depth	76 mm
Overvoltage category	II
Analogue input type	voltage 0...1 V, current 0...20 mA/4...20 mA, NTC temperature probe - 50...100 °C - resolution: 0.1 °C, voltage 0...10 V, voltage 0...5 V (ratiometric)
Realtime clock	built-in clock at -20-55 °C
Width	74 mm
Local signalling	7 LEDs (amber) for programmable, 5 LEDs (green), 6 LEDs (red)
Sensor power supply	5-5 V DC at 20 mA, 12-12 V DC at 85 mA
Number of port	1 RS485 - screw terminal block (Modbus serial link), 1 LAN expansion bus
Net weight	0.164 kg
Mounting support	flush mounting
Contacts usage	volt-free contacts
Power consumption in W	4 W
Environment
IP degree of protection	IP20
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-40-85 °C
Directives	86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
Ambient air temperature for operation	-20-55 °C conforming to UL 60730-1
Pollution degree	2
Standards	EN/IEC 60730
Product certifications	cURus, CE, EAC, CSA
