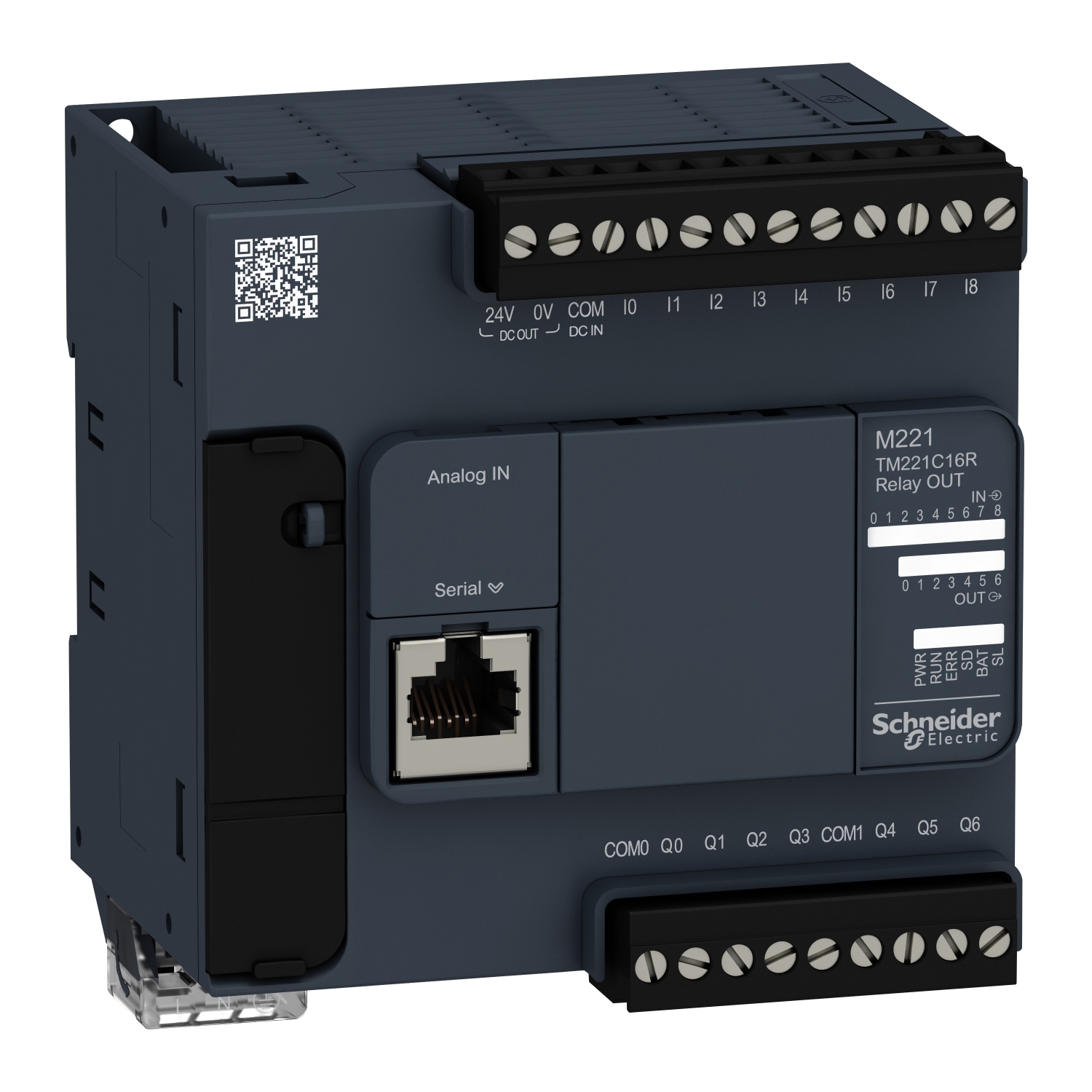

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 9 discrete inputs and 7 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, built-in flash memory of 256KB and SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 95mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.346kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input number | 9 , discrete input conforming to IEC 61131-2 Type 1 |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete output voltage | 5...250 V AC, 5...125 V DC |
| Discrete output current | 2 A |
| Analogue input number | 2 at 0...10 V |
| Range of product | Modicon M221 |
| Discrete output type | relay normally open |
| Product or component type | logic controller |
| Discrete output number | 7 relay |
| Complementary | |
| Data storage equipment | 2 GB SD card (optional) |
| Minimum load | 1 mA at 5 V DC for relay output |
| Execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| Electrical durability | 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms), 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive, 300000 cycles AC-12, 240 V, 160 VA, resistive, 300000 cycles AC-12, 120 V, 80 VA, resistive, 100000 cycles AC-12, 240 V, 480 VA, resistive, 100000 cycles AC-12, 120 V, 240 VA, resistive |
| Supply voltage limits | 85-264 V |
| Control signal type | dual phase (pulse/direction), dual phase (quadrature), frequency meter, single phase |
| Configurable filtering time | 12 ms for input, 3 ms for input, 0 ms for input |
| Power supply output current | 0.12-0.12 A 24 V for expansion bus, 0.325-0.325 A 5 V for expansion bus |
| Discrete I/O number | 16 |
| Communication port protocol | non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, USB port: USB - SoMachine-Network |
| Maximum current per output common | 7 A at COM 0, 6 A at COM 1 |
| Height | 90 mm |
| Maximum cable distance between devices | unshielded cable: <1 m for analog input, unshielded cable: <30 m for digital input, unshielded cable: <30 m for output, shielded cable: <10 m for fast input |
| Permitted overload on inputs | +/- 13 V DC (permanent) for analog input, +/- 30 V DC for 5 min (maximum) for analog input |
| Discrete input current | 5 mA for fast input, 7 mA for discrete input |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Absolute accuracy error | +/- 1 % of full scale for analog input |
| Mechanical durability | 20000000 cycles for relay output |
| Sensor power supply | 24-24 V DC at 250 mA supplied by the controller |
| Execution time per instruction | 0.2 µs Boolean |
| Integrated connection type | non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface , non isolated serial link serial 1 with RJ45 connector and RS485 interface , USB port with mini B USB 2.0 connector |
| Voltage state 1 guaranteed | >= 15 V for input |
| Net weight | 0.346 kg |
| Maximum number of I/O expansion module | 11 (remote I/O-Architecture), 4 (local I/O-Architecture) |
| Reset time | 1 s |
| Battery type | BR2032 or CR2032X lithium non-rechargeable |
| Discrete input voltage | 24 V |
| Exct time for event task | 60 µs response time |
| Discrete input logic | sink or source (positive/negative) |
| Supply | (serial)serial link supply: 5 V, <200 mA |
| Insulation | between supply and sensor power supply at 2300 V AC, between Ethernet terminal and internal logic at 500 V AC, between output and internal logic at 2300 V AC, between sensor power supply and internal logic at 500 V AC, between supply and internal logic at 2300 V AC, between output and ground at 1500 V AC, between input and ground at 500 V AC, between sensor power supply and ground at 500 V AC, between supply and ground at 1500 V AC, non-insulated between analogue inputs, non-insulated between analogue input and internal logic, between input and internal logic at 500 V AC |
| Realtime clock | with |
| Analogue input resolution | 10 bits |
| Conversion time | 1 ms per channel + 1 controller cycle time for analogue input analog input |
| Memory capacity | 256 kB for internal variables RAM, 256 kB for user application and data RAM with 10000 instructions |
| Maximum size of object areas | 255 %TM timers, 8000 %MW memory words, 255 %C counters, 512 %M memory bits, 512 %KW constant words |
| Voltage state 0 guaranteed | <= 5 V for input |
| Backup time | 1 year at 25 °C (by interruption of power supply) |
| Marking | CE |
| Protection type | without protection at 5 A |
| Transmission rate | 480 Mbit/s for USB, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485 |
| Electrical connection | mini B USB 2.0 connector for a programming terminal, connector, 4 terminal(s) for analogue inputs, terminal block, 3 terminal(s) for connecting the 24 V DC power supply, removable screw terminal block for outputs, removable screw terminal block for inputs |
| Data backed up | 256 kB built-in flash memory for backup of application and data |
| Switching frequency | 20 switching operations/minute with maximum load |
| Counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Maximum power consumption in VA | 31 VA at 100...240 V without I/O expansion module, 46 VA at 100...240 V with max number of I/O expansion module |
| Depth | 70 mm |
| Width | 95 mm |
| LSB value | 10 mV |
| Response time | 100 µs turn-off, other terminals terminal(s) for input, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input, 35 µs turn-on, other terminals terminal(s) for input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input, 10 ms turn-off for output, 10 ms turn-on for output, 35 µs turn-off, I2...I5 terminal(s) for input |
| Local signalling | 1 LED per channel (green) for I/O state, 1 LED (green) for SL2, 1 LED (green) for SL1, 1 LED (red) for BAT, 1 LED (green) for SD card access (SD), 1 LED (red) for module error (ERR), 1 LED (green) for RUN, 1 LED (green) for PWR |
| Output voltage limits | 277 V AC, 125 V DC |
| Regulation loop | adjustable PID regulator up to 14 simultaneous loops |
| Clock drift | <= 30 s/month at 25-25 °C |
| Discrete input voltage type | DC |
| Inrush current | 40 A |
| Input impedance | 4.9 kOhm for fast input, 100 kOhm for analog input, 3.4 kOhm for discrete input |
| Network frequency | 50/60 Hz |
| Environment | |
| Resistance to fast transients | 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4, 2 kV (relay output) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4 |
| Surge withstand | 0.5 kV power lines (DC) common mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 1 kV I/O common mode conforming to IEC 61000-4-5, 2 kV relay output common mode conforming to IEC 61000-4-5, 2 kV power lines (AC) common mode conforming to IEC 61000-4-5 |
| Resistance to electrostatic discharge | 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -25-70 °C |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to IEC 61000-4-8 |
| Immunity to microbreaks | 10 ms |
| Resistance to conducted disturbances | 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0-3000 m |
| Product certifications | cULus HazLoc, UKCA, CE, cULus, EAC, DNV-GL, LR, ABS, RCM |
| IP degree of protection | IP20 with protective cover in place |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Environmental characteristic | ordinary and hazardous location |
| Ambient air temperature for operation | -10-35 °C (vertical installation), -10-55 °C (horizontal installation) |
| Pollution degree | <= 2 |
| Resistance to electromagnetic fields | 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Electromagnetic emission | radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011, conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011 |
| Vibration resistance | 1 gn at 8.4-150 Hz on panel mounting, 1 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on panel mounting, 3.5 mm at 5-8.4 Hz on symmetrical rail |
| Shock resistance | 98 m/s² for 11 ms |
| Standards | ANSI/ISA 12-12-01, IACS E10, CAN/CSA C22.2 No. 213, UL 508, IEC 61131-2 |
Only registered users can write reviews
Related products

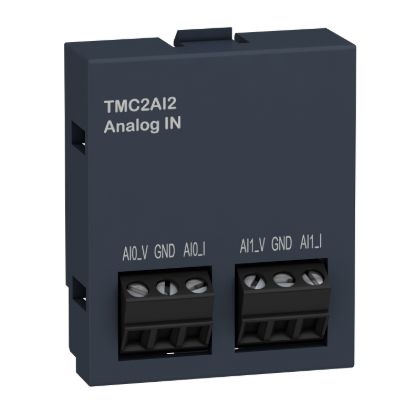

Analogue input cartridge, Modicon M221, 2 analog inputs, I/O extension
TMC2AI2
Analogue input cartridge, Modicon M221, 2 analog inputs, I/O extension
$191.84 inc GST
$232.13 inc GST
$142.78 inc GST
$172.76 inc GST

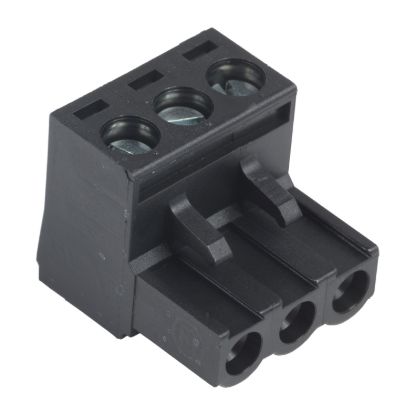

Connector set, Modicon M221, for M2X1 power supply
