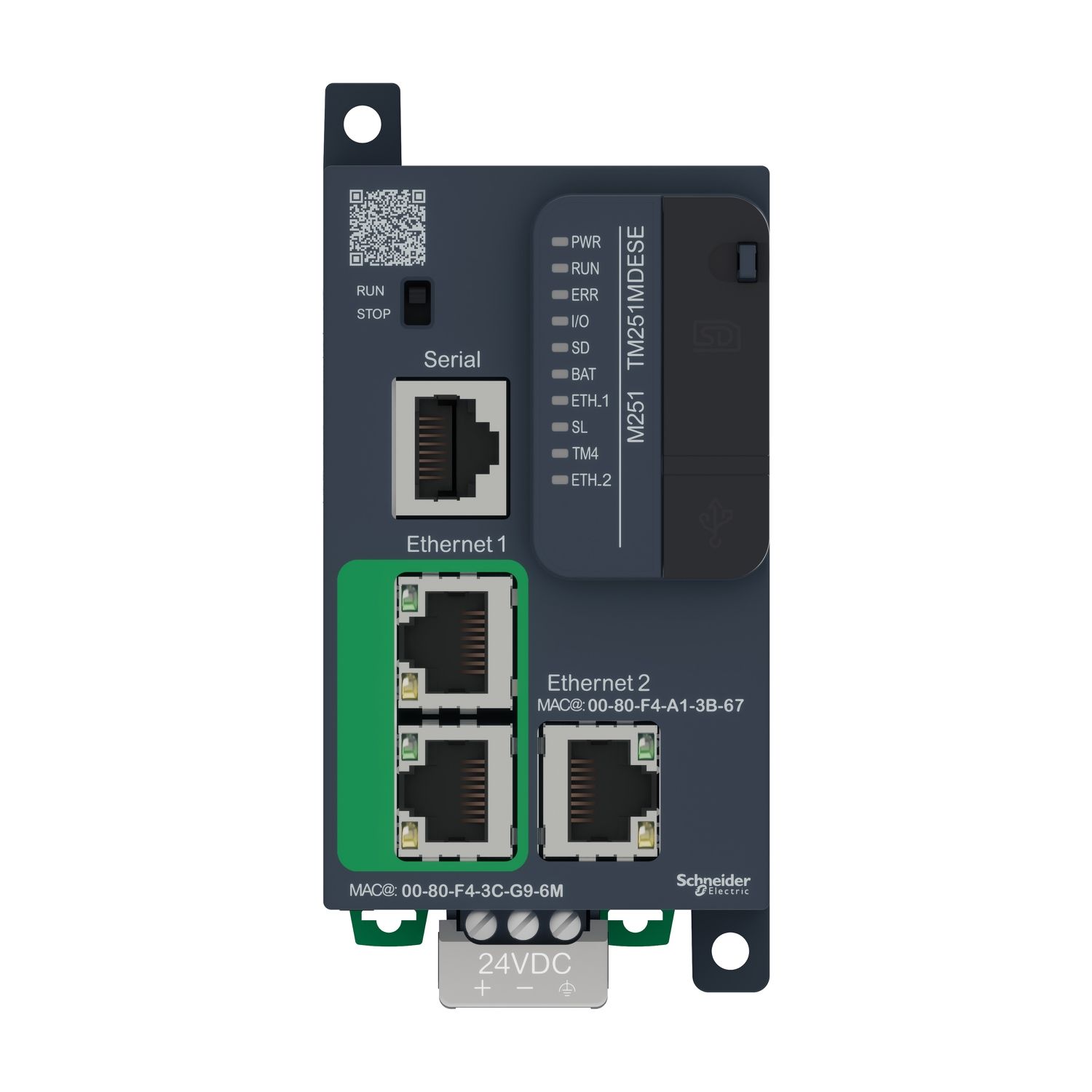

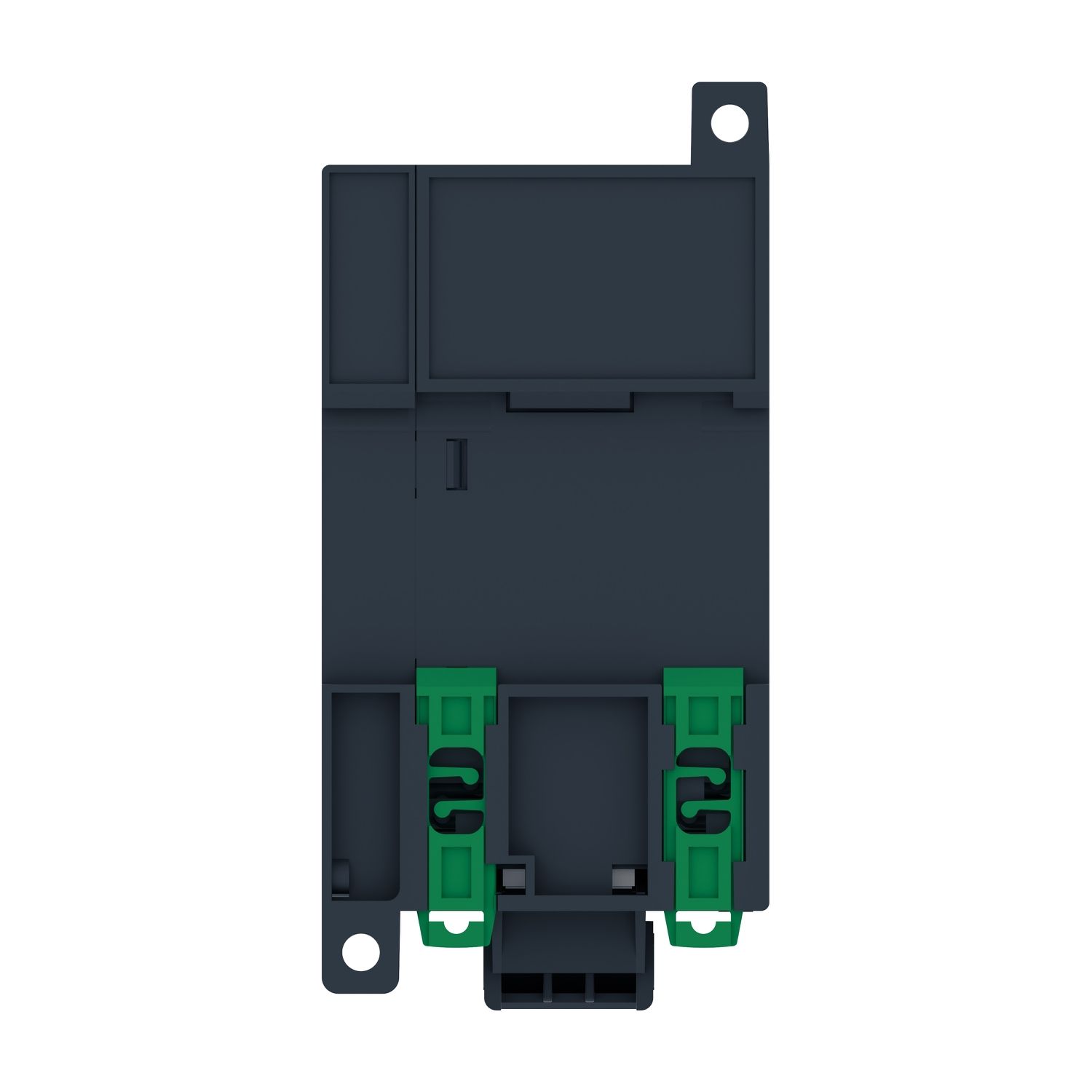

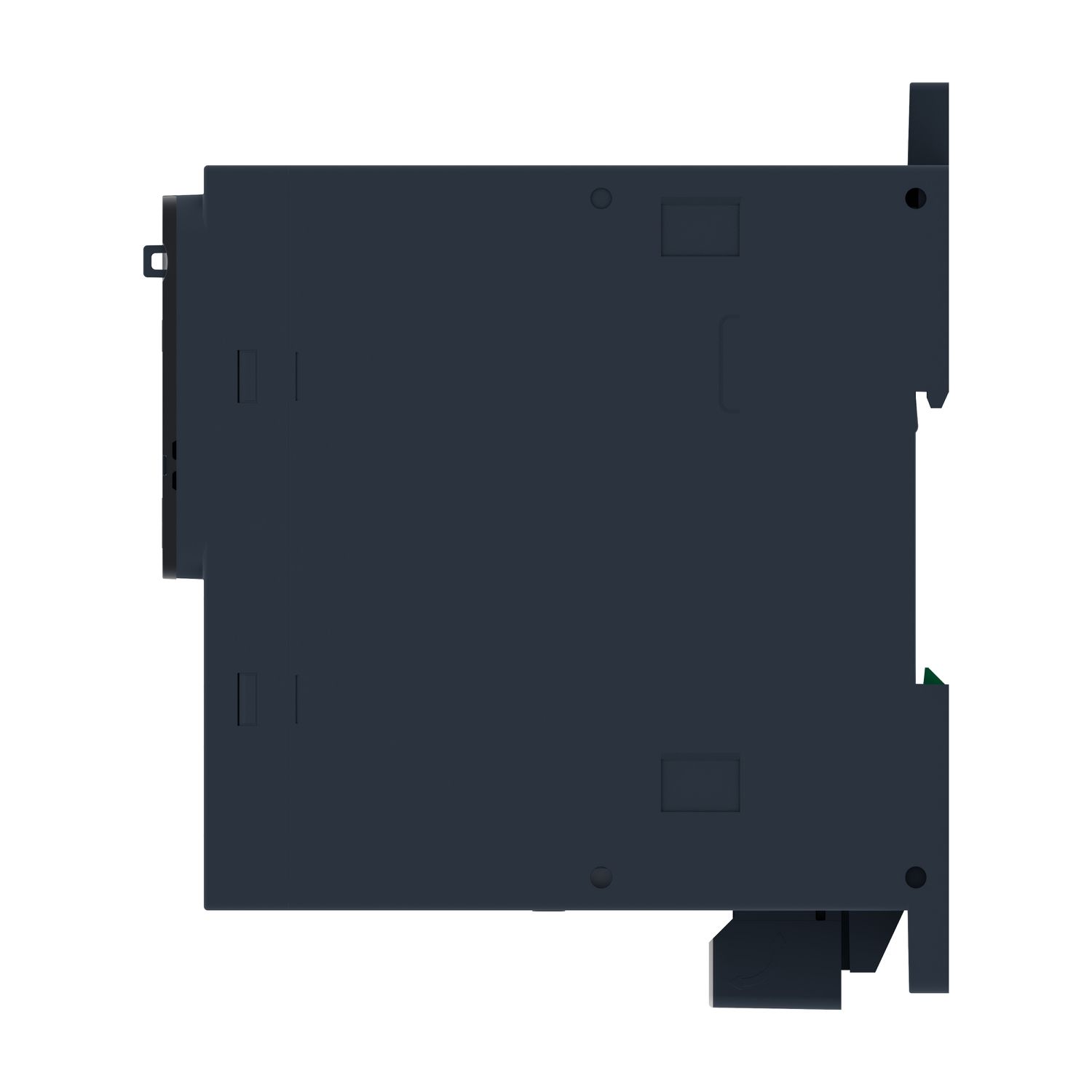

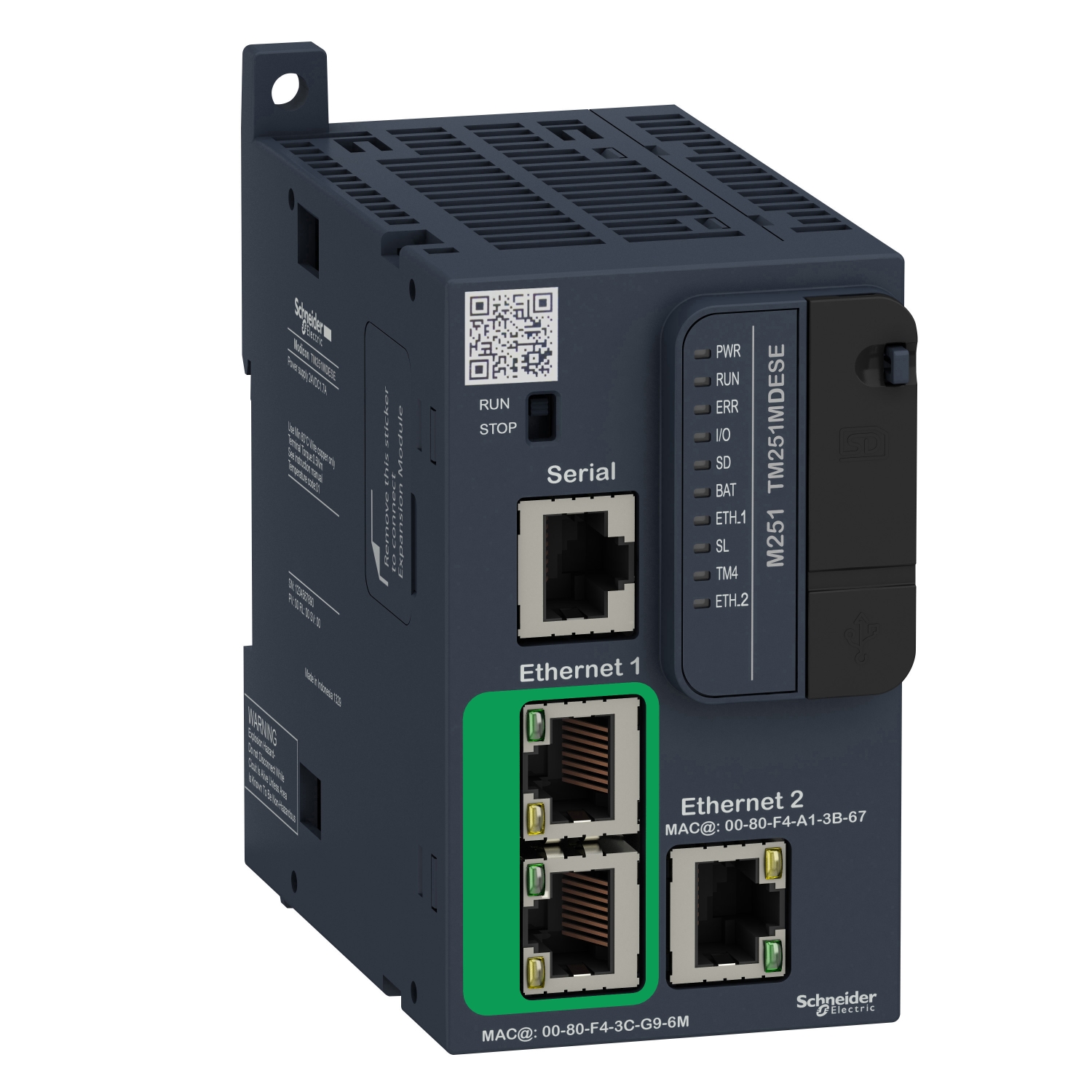

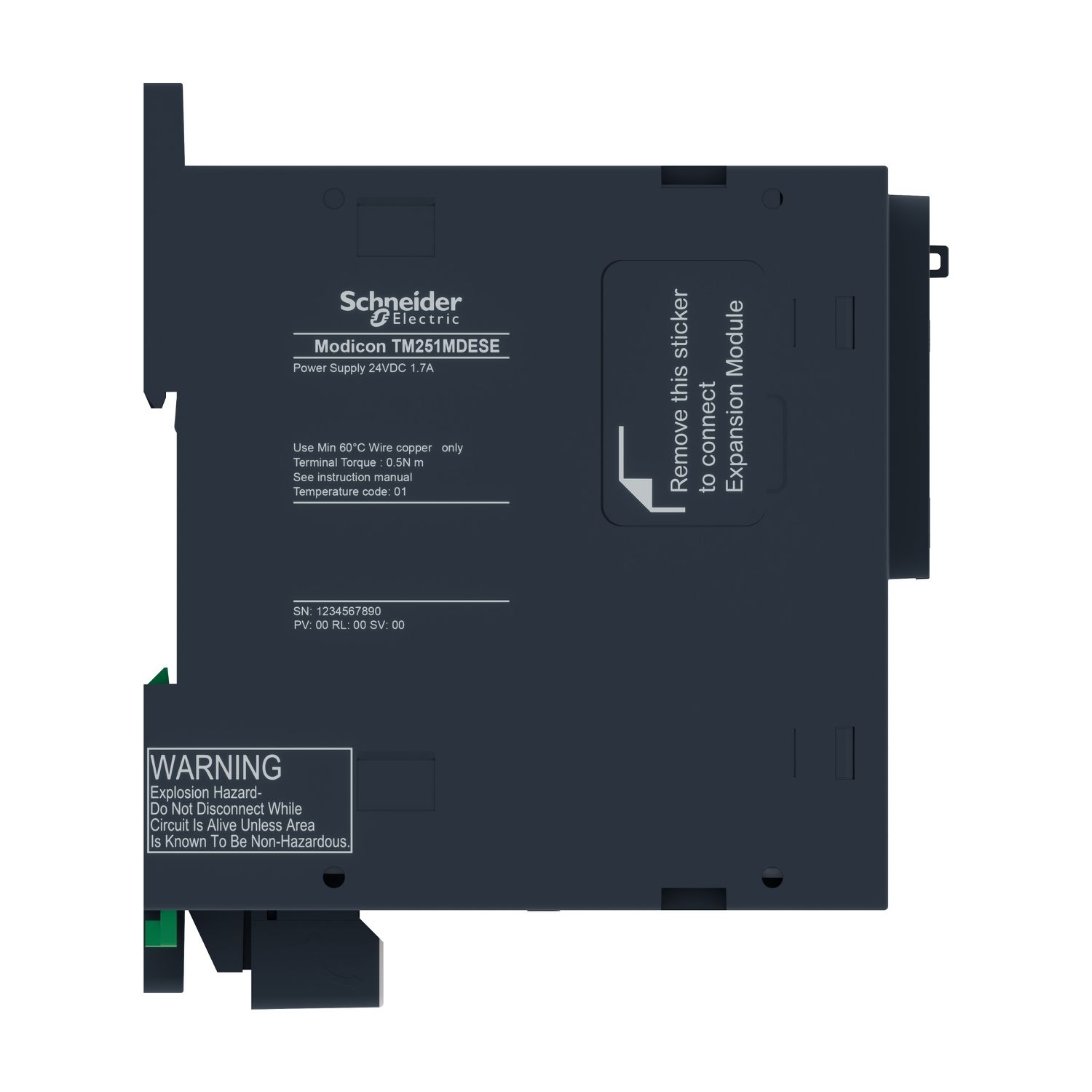

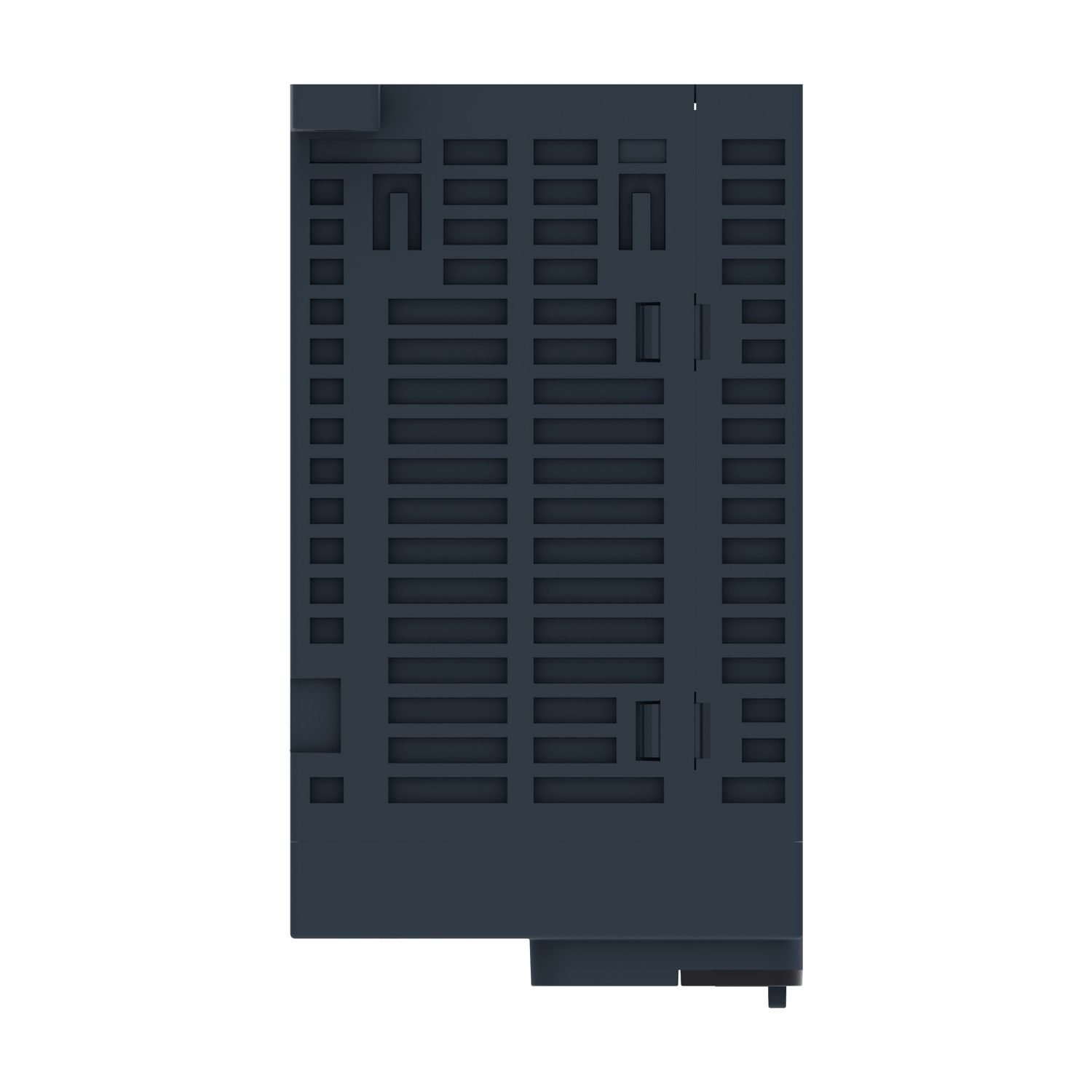

The Modicon M251 dPAC is part of the EcoStructure Automation Expert hardware controller range. It is an optimised dPAC controller that supports Modicon TM3 I/O catalog. The controller carries up to 488 discrete I/O channels, 114 analog I/O channels and 14 (7 local + 7 remote) Modicon TM3 expansion modules. It is a cost-optimized, low-footprint distributed controller based on the machine-specialized Modicon M251 PAC platform. It includes a 1GB/s Ethernet port, a dual port Ethernet field bus and supports Modbus/TCP, OPC UA and auto discovery. The controler is compatible with most Modicon TM3 I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 (Edition 2 2007), UL508 (UL61010-2-201), ANSI/ISA 12.12.01-2007, CSA C22.2 No. 213, No. 142, E61131-2 and IACS E10 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 24 V DC |
| Range of product | Modicon M251 |
| Product or component type | processor module |
| Complementary | |
| Data storage equipment | <= 16 GB SD card (optional) |
| Realtime clock | with |
| Surge withstand | 0.5 kV power lines differential mode conforming to EN/IEC 61000-4-5, 1 kV power lines common mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5 |
| Communication service | NTP client, OPC UA server, Modbus TCP server, Modbus TCP client |
| Supply voltage limits | 19.2-28.8 V |
| Memory capacity | 64 MB for system memory RAM |
| Backup time | 2 years at 25 °C |
| Marking | CE |
| Power consumption in W | 45-45 W (with max number of I/O expansion module) |
| Height | 90 mm |
| Electrical connection | removable screw terminal blockpower supply (pitch 3.81 mm) |
| Data backed up | 128 MB built-in flash memory for backup of user programs |
| Depth | 90 mm |
| Width | 54 mm |
| Local signalling | 1 LED (red) for bus fault on TM4 (TM4), 1 LED (green) for SL, 1 LED (red) for BAT, 1 LED (green) for SD card access (SD), 1 LED (red) for I/O error (I/O), 1 LED (red) for module error (ERR), 1 LED (green) for RUN, 1 LED (green) for PWR |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Integrated connection type | Ethernet port Ethernet 2 with RJ45 connector, dual-port Ethernet 1 with 2 RJ45 connector, non isolated serial link serial with RJ45 connector and RS232/RS485 interface , USB port with mini B USB 2.0 connector |
| Net weight | 0.22 kg |
| Maximum number of I/O expansion module | 14 (remote I/O-Architecture), 7 (local I/O-Architecture) |
| Battery type | BR2032 lithium non-rechargeable, battery life: 4 year(s) |
| Clock drift | <= 60 s/month at -10-50 °C |
| Port Ethernet | Ethernet marking 10BASE-T/100BASE-TX - 2 copper cable |
| Environment | |
| Resistance to fast transients | 1 kV (serial link) conforming to EN/IEC 61000-4-4, 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4, 2 kV (power lines) conforming to EN/IEC 61000-4-4 |
| Resistance to electrostatic discharge | 4 kV on contact conforming to EN/IEC 61000-4-2, 8 kV in air conforming to EN/IEC 61000-4-2 |
| IP degree of protection | IP20 with protective cover in place |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -10-55 °C (horizontal installation), -10-35 °C (vertical installation) |
| Pollution degree | 2 |
| Standards | UL 508, EN/IEC 61131-2, CSA C22.2 No 213, CSA C22.2 No 142, ANSI/ISA 12-12-01 |
| Immunity to microbreaks | 10 ms |
| Resistance to electromagnetic fields | 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to conducted disturbances | 1 V 2 GHz...3 GHz conforming to EN/IEC 61000-4-3, 3 V 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 10 V 80...1000 MHz conforming to EN/IEC 61000-4-3 |
| Electromagnetic emission | radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 61000-6-4, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 61000-6-4, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 61000-6-4, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 61000-6-4, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 61000-6-4 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 3 gn at 8.7-150 Hz on panel mounting, 1 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on symmetrical rail |
| Shock resistance | 15 gn for 11 ms |
| Storage altitude | 0-3000 m |
| Product certifications | UKCA, Achilles, CE, RCM, CSA, cULus |
