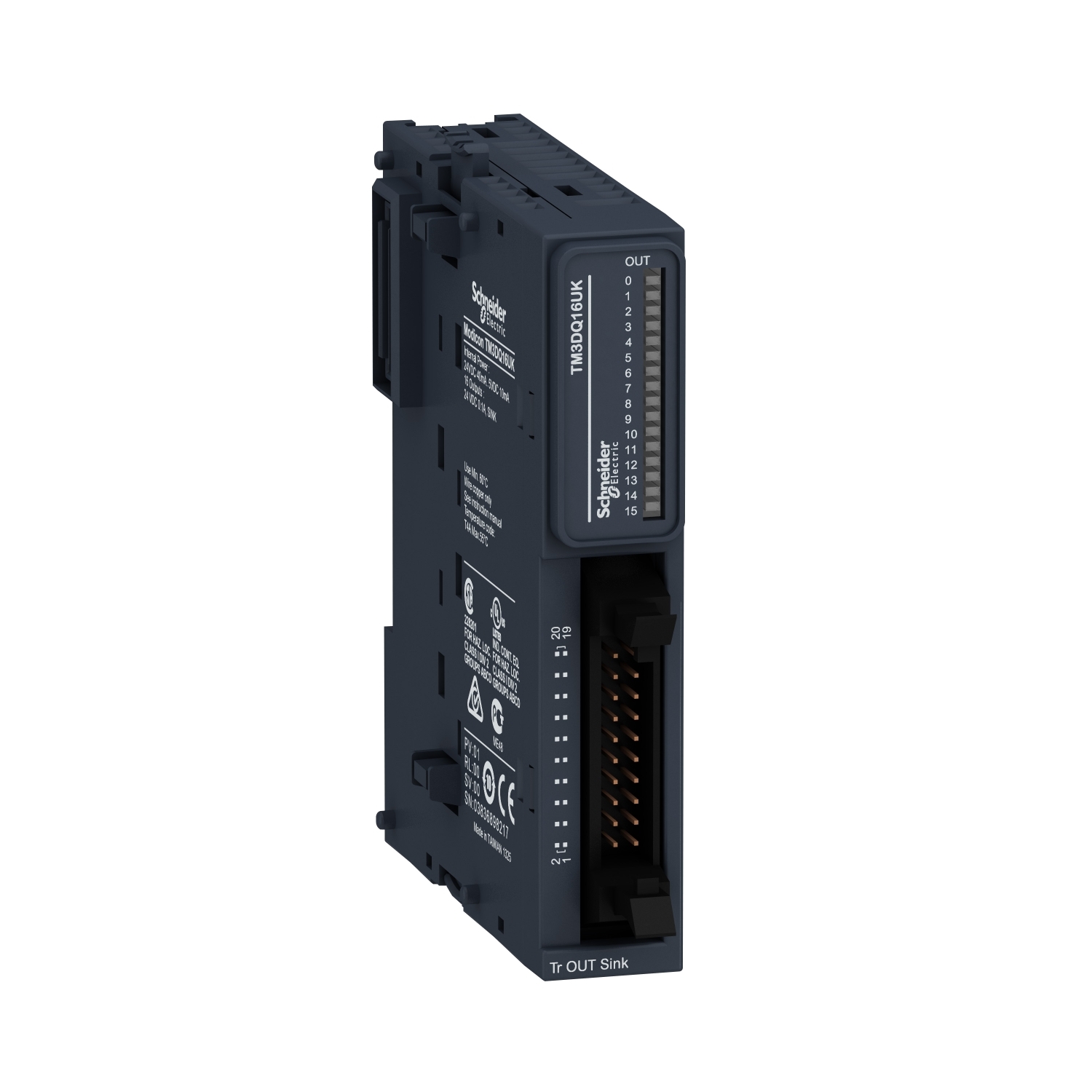

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output voltage | 24 V DC for transistor output |
| Discrete output current | 100 mA for transistor output |
| Discrete output number | 16 |
| Discrete output logic | negative logic (sink) |
| Range of product | Modicon TM3 |
| Discrete output type | transistor |
| Range compatibility | Modicon M262, Modicon M221, Modicon M251, Modicon M241 |
| Product or component type | discrete output module |
| Complementary | |
| Insulation | non-insulated between outputs, between output and internal logic at 500 V AC |
| Discrete I/O number | 16 |
| Marking | CE |
| Height | 90 mm |
| Maximum cable distance between devices | unshielded cable: <5 m for transistor output |
| Electrical connection | HE-10 connectorfor outputs |
| Maximum leakage current | 0.1 mA for transistor output |
| Depth | 81.3 mm |
| Width | 21.4 mm |
| Local signalling | 1 LED per channel (green) for output status |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Current consumption | 20 mA at 24 V DC via bus connector (at state on), 15 mA at 5 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 5 mA at 5 V DC via bus connector (at state off) |
| Maximum voltage drop | <0.4 V |
| Net weight | 0.111 kg |
| Response time | 450 µs (turn-off), 450 µs (turn-on) |
| Environment | |
| Resistance to fast transients | 1 kV for I/O conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2 |
| IP degree of protection | IP20 with protective cover in place |
| Surge withstand | 1 kV I/O common mode conforming to IEC 61000-4-5 DC |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -25-70 °C |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to IEC 61000-4-8 |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10-55 °C horizontal installation, -10-35 °C vertical installation |
| Resistance to electromagnetic fields | 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Resistance to conducted disturbances | 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6 |
| Electromagnetic emission | radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Storage altitude | 0-3000 m |
| Standards | IEC 61131-2 |
| Product certifications | cULus HazLoc, EAC, RCM, UKCA, CE, cULus |
