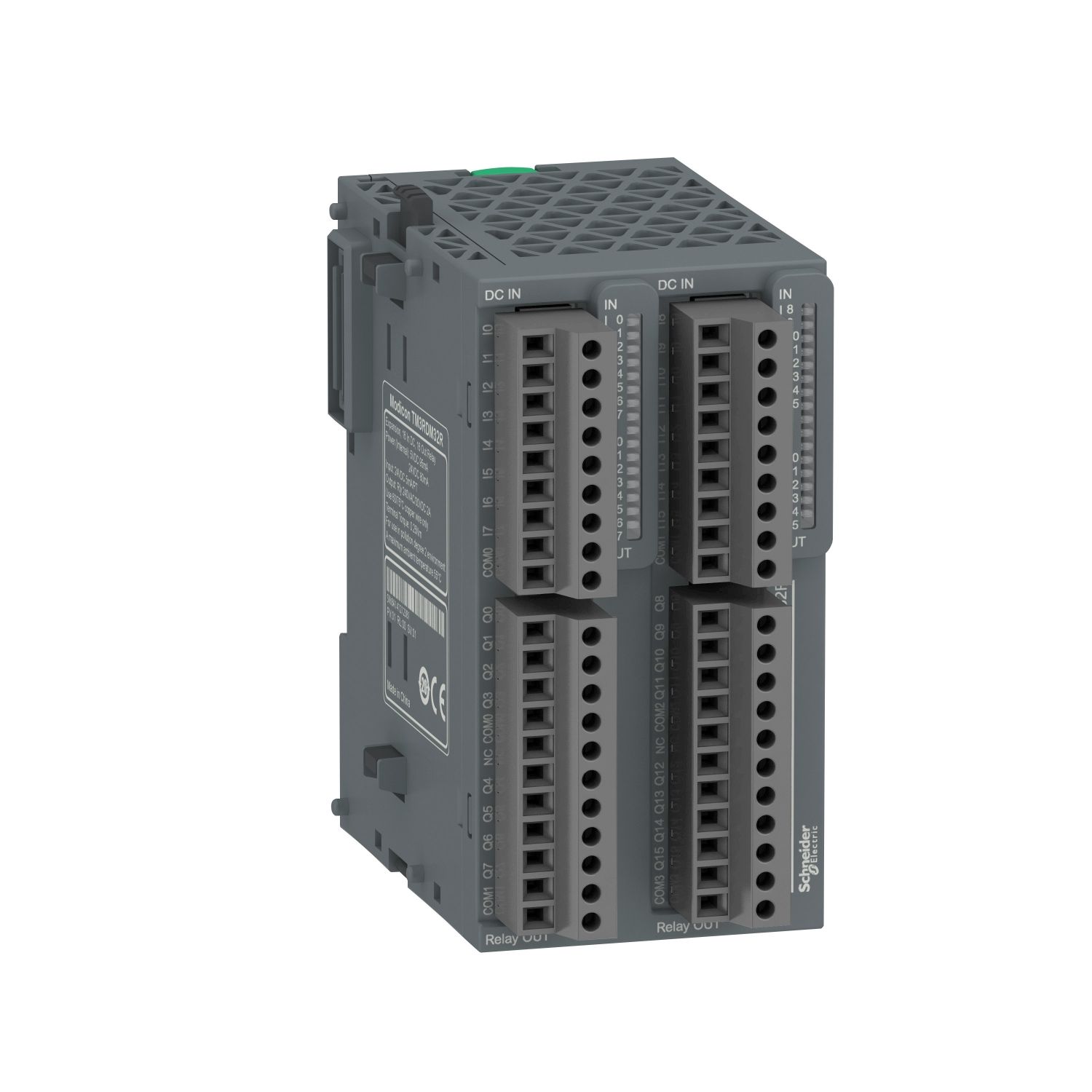

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This discrete IO module provides 16 digital inputs and 16 digital outputs. It manages 16 sink/source 24V DC inputs and 16 relay outputs. Digital IO modules can be used to create configurations with up to 196 digital IO. The IO response time is 4ms (turn-on), 4ms (turn-off). It is furnished with removable screw terminal block, 11x 1.5squaremm for outputs and 9x 1.5squaremm for inputs, with 3.81mm pitch adjustment. Its dimensions are 51mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.208kg. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This module is specially designed and only applicable for Modicon M200 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input number | 16 for input conforming to IEC 61131-2 Type 1 |
| Range compatibility | Modicon Easy M200 |
| Discrete input current | 5 mA for input |
| Discrete output voltage | 240 V AC for relay output, 24 V DC for relay output |
| Discrete output current | 2000 mA for relay output |
| Product or component type | discrete I/O module |
| Discrete output number | 16 |
| Discrete input voltage | 24 V |
| Discrete output logic | positive or negative |
| Range of product | Modicon TM3 |
| Discrete output type | relay normally open |
| Discrete input logic | sink or source (positive/negative) |
| Complementary | |
| Insulation | non-insulated between outputs, between output and internal logic at 500 V AC, between open contact at 750 V AC, between input groups and output groups at 1500 V AC, non-insulated between inputs, between input and internal logic at 500 V AC |
| Minimum load | 10 mA at 5 V DC for relay output |
| Depth | 84.6 mm |
| Width | 51 mm |
| Local signalling | 1 LED per channel (green) for I/O state |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Mechanical durability | 20000000 cycles |
| Current state 0 guaranteed | <= 1 mA (input) |
| Voltage state 1 guaranteed | 15...28.8 V for input |
| Current consumption | 95 mA at 5 V DC via bus connector (at state on), 80 mA at 24 V DC via bus connector (at state on) |
| Voltage state 0 guaranteed | 0...5 V for input |
| Net weight | 0.208 kg |
| Discrete I/O number | 32 |
| Response time | 4 ms (turn-off), 4 ms (turn-on) |
| Marking | CE |
| Current state 1 guaranteed | >= 2.5 mA (input) |
| Discrete input voltage type | DC |
| Maximum current per output common | 4 A |
| Height | 90 mm |
| Maximum cable distance between devices | unshielded cable: <150 m for output, unshielded cable: <50 m for input |
| Electrical connection | 9 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, 11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Input impedance | 4.7 kOhm |
| Environment | |
| Electromagnetic emission | radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011 |
| Resistance to fast transients | 1 kV for input conforming to IEC 61000-4-4, 2 kV for relay output conforming to IEC 61000-4-4 |
| Operating altitude | 0...2000 m |
| Resistance to electrostatic discharge | 6 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2 |
| IP degree of protection | IP20 with protective cover in place |
| Surge withstand | 1 kV input common mode conforming to IEC 61000-4-5, 2 kV output common mode conforming to IEC 61000-4-5 |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -25-70 °C |
| Vibration resistance | 2 gn at 8.7-150 Hz on panel, 3.5 mm at 5-8.7 Hz on panel, 1 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to IEC 61000-4-8 |
| Shock resistance | 15 gn for 11 ms |
| Pollution degree | 2 |
| Storage altitude | 0-3000 m |
| Ambient air temperature for operation | 0-55 °C horizontal installation |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to IEC 61000-4-6 |
