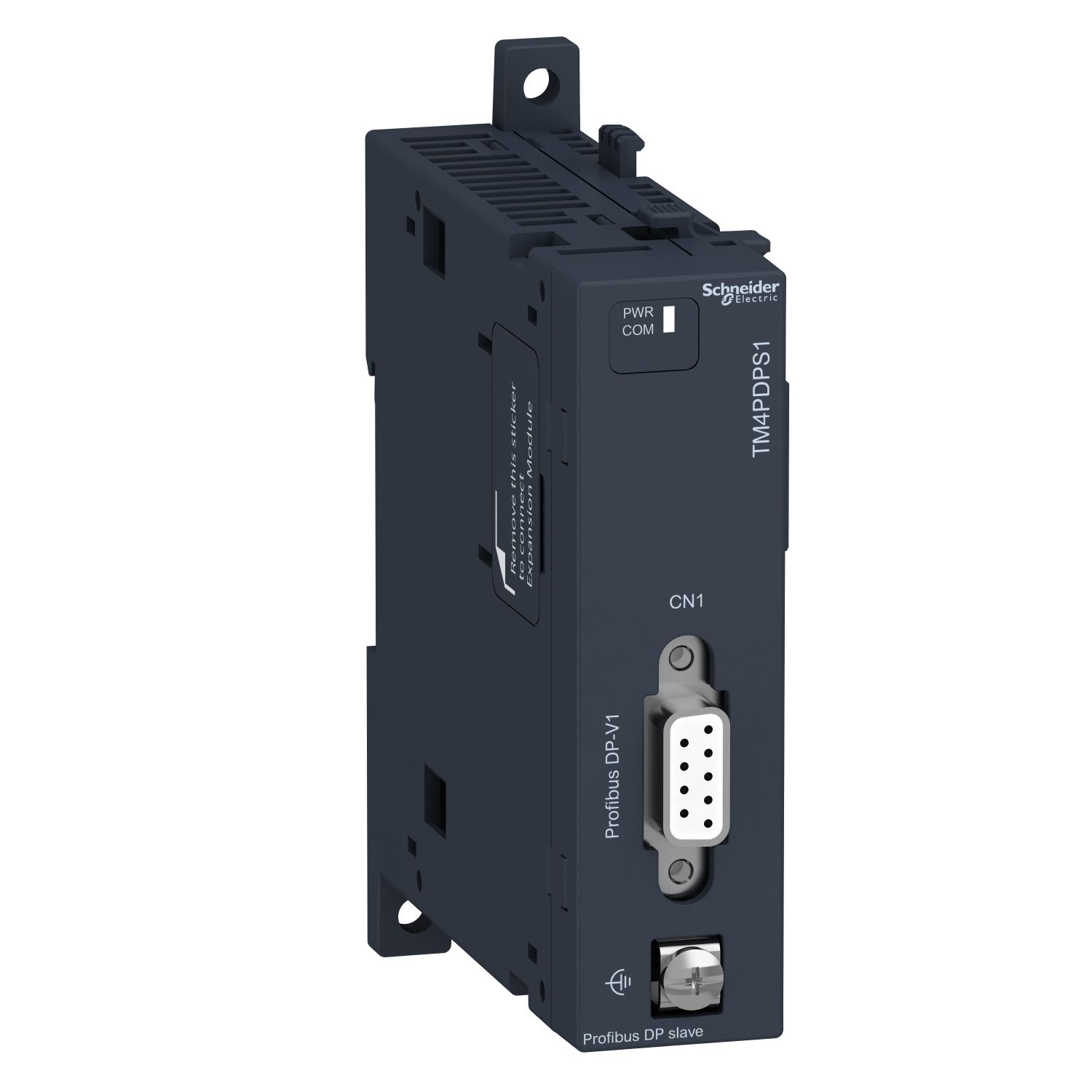

This communication module is proposed as an option Modicon M241/251 controllers. This module provides slave Profibus DP. It is equipped with a 9-way SUB-D connector.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | Profibus DP communication module |
| Complementary | |
| Insulation | between bus and internal logic at 1000 V DC |
| Surge withstand | 0.5 kV I/O differential mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 1 kV I/O common mode conforming to IEC 61000-4-5, 2 kV relay output common mode conforming to IEC 61000-4-5, 2 kV power lines (AC) common mode conforming to IEC 61000-4-5, 1 kV power lines (DC) common mode conforming to IEC 61000-4-5 |
| Power dissipation in W | 1.5 W |
| Marking | CE |
| Transmission rate | 3...12 Mbit/s for bus length of 100-100 m, 9.6...93.75 kbit/s for bus length of 1200-1200 m, 187.5 kbit/s for bus length of 1000-1000 m, 500 kbit/s for bus length of 400-400 m, 1.5 Mbit/s for bus length of 200-200 m |
| Height | 90 mm |
| Electrical connection | SUB-D 9 1 female connector for connecting Profibus, screw connector terminal for connecting the functional ground |
| Depth | 90 mm |
| Width | 25 mm |
| Range compatibility | Modicon M241, Modicon M251 |
| Local signalling | 1 LED (green/red) for communication, 1 LED (green/yellow) for power supply |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Product compatibility | Modicon M251 logic controller, Modicon M241 logic controller |
| Communication port protocol | Profibus DP V1, Profibus DP V0 |
| Current consumption | 290 mA at 5 V DC for communication bus |
| Net weight | 0.1 kg |
| Integrated connection type | Profibus DP: female SUB-D 9 connector |
| Environment | |
| Resistance to fast transients | 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 1.5 kV (I/O) conforming to IEC 61000-4-4, 2 kV (relay output) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL), 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL), 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2 |
| IP degree of protection | IP20 with protective cover in place |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10-50 °C vertical installation, -10-55 °C horizontal installation |
| Resistance to electromagnetic fields | 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Resistance to conducted disturbances | 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6 |
| Electromagnetic emission | radiated emissions - test level: 54 dBμV/m QP at 100-2000 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 80...50 dμV/m QP at 150-30000 kHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 47 dBμV/m QP class A at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 24 dBμV/m QP at 156-165 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 60...54 dBμV/m QP at 30-100 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 40 dBμV/m QP class A at 30-230 MHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011, conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 0.7 gn at 13.2-100 Hz on panel mounting, 1 mm at 5-13.2 Hz on panel mounting, 3 gn at 8.7-150 Hz on symmetrical rail, 1 mm at 5-13.2 Hz on symmetrical rail |
| Shock resistance | 15 gn for 11 ms |
| Storage altitude | 0-3000 m |
| Standards | EIA-485, UL 508, IEC 61131-2 |
| Product certifications | cULus, C-Tick |
