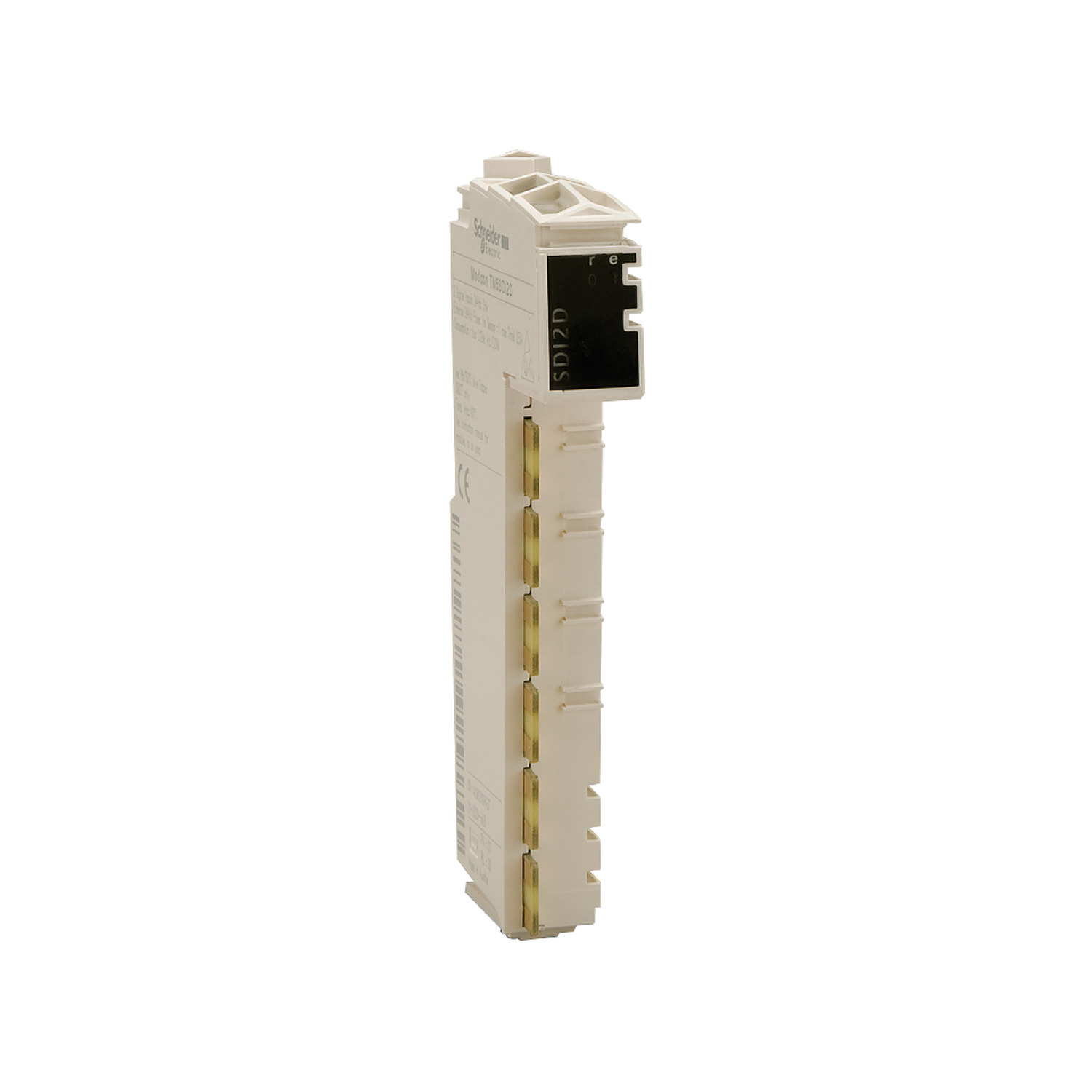

This product is part of the Modicon TM5 range, an offer of IP20 modular I/O systems. This dummy module is suitable for programmable logic controllers (PLC) and programmable automation controllers (PAC). It is an IP20 rated product. It is suitable for packaging, material working, material handling and machine control solution applications. This product is certified by CE, C-Tick, CULus, CSA and GOST-R. It meets IEC 61131-2, CSA C22.2 No 213, UL 508 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 range of products such as logic controller and motion controller. It is suitable for DIN rail mount. This IP20 modular IO system offers a flexible and scalable configuration of expansions by direct connection with the Modicon controllers. Flexible and scalable, designed for complex machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | dummy module |
| Range of product | Modicon TM5 |
| Complementary | |
| Product compatibility | motion controller, logic controller |
| Range compatibility | Modicon LMC058, Modicon M258 |
| Marking | CE |
| Environment | |
| Operating altitude | 0...2000 m |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 2 conforming to IEC 60664 |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -10-50 °C (vertical installation), -10-60 °C with derating factor (horizontal installation), -10-55 °C without derating (horizontal installation) |
| Electromagnetic compatibility | conducted and radiated emissions conforming to CISPR 11, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5, electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2, electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2 |
| Storage altitude | 0-3000 m |
| Standards | UL 508, CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213 |
| Product certifications | cULus, CSA, C-Tick, GOST-R |
