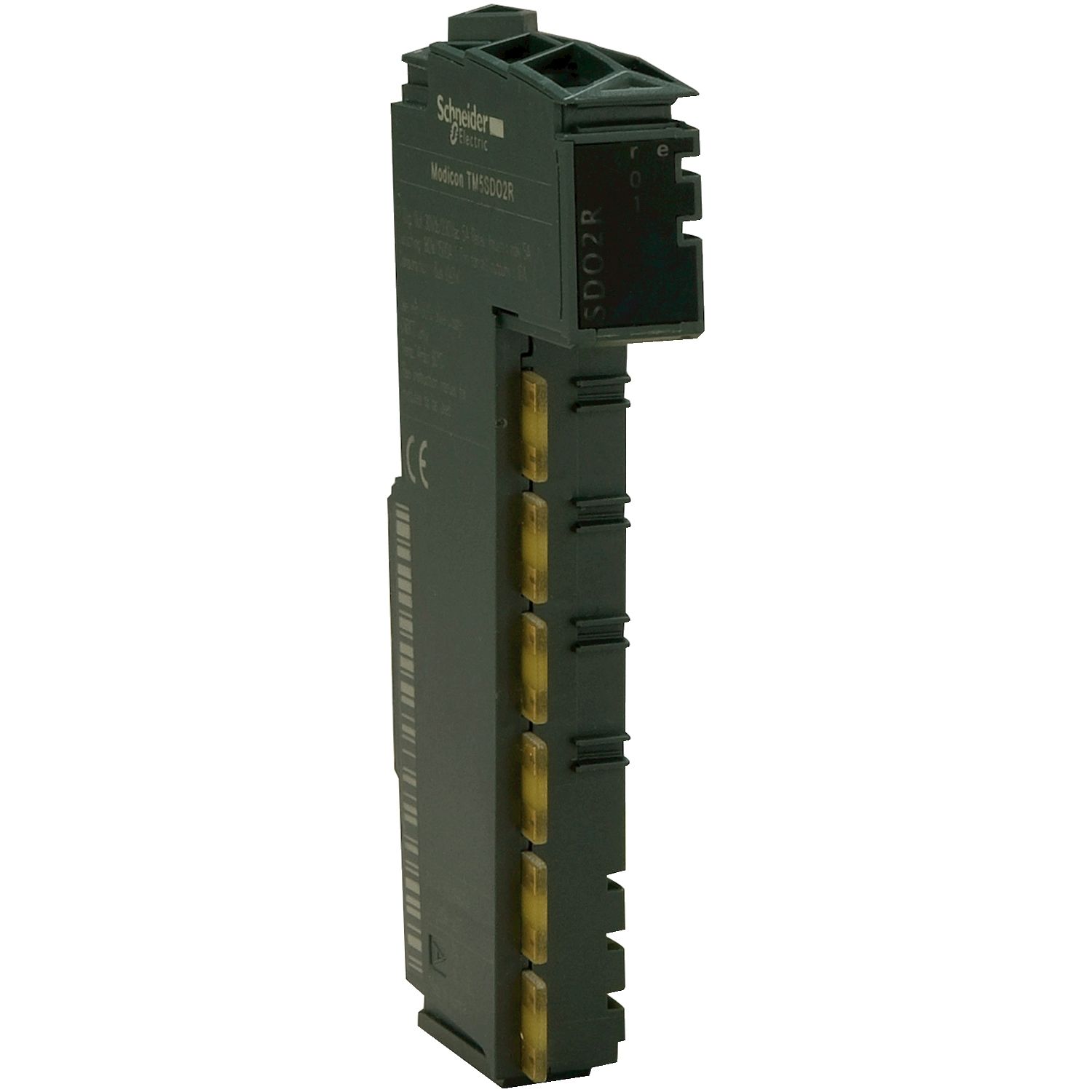

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete output module provides 2 discrete outputs with relay discrete output. Its output voltage limits are 100 to 240V AC, its nominal output voltage is 1A. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. It is equipped with NO/NC contact. It is an IP20 rated product. Its housing colour is black.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output number | 2 |
| Product or component type | discrete output module |
| Range of product | Modicon TM5 |
| Discrete output type | relay |
| Complementary | |
| Product compatibility | logic controller, PacDrive LMC Pro, PacDrive LMC Eco, PacDrive LMC Pro 2, motion controller |
| Range compatibility | PacDrive LMC motion controller, Modicon LMC058, Modicon M258 |
| Colour | black |
| Electrical connection | 3 wires |
| Marking | CE |
| Output voltage | 100...240 V AC |
| Current per channel | 1 A |
| Environment | |
| Operating altitude | 0...2000 m |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 2 conforming to IEC 60664 |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -10-50 °C (vertical installation), -10-60 °C with derating factor (horizontal installation), -10-55 °C without derating (horizontal installation) |
| Electromagnetic compatibility | conducted and radiated emissions conforming to CISPR 11, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5, electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2, electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2 |
| Storage altitude | 0-3000 m |
| Standards | UL 508, CSA C22.2 No 213, IEC 61131-2, CSA C22.2 No 142 |
| Product certifications | C-Tick, cULus, GOST-R, CSA |
