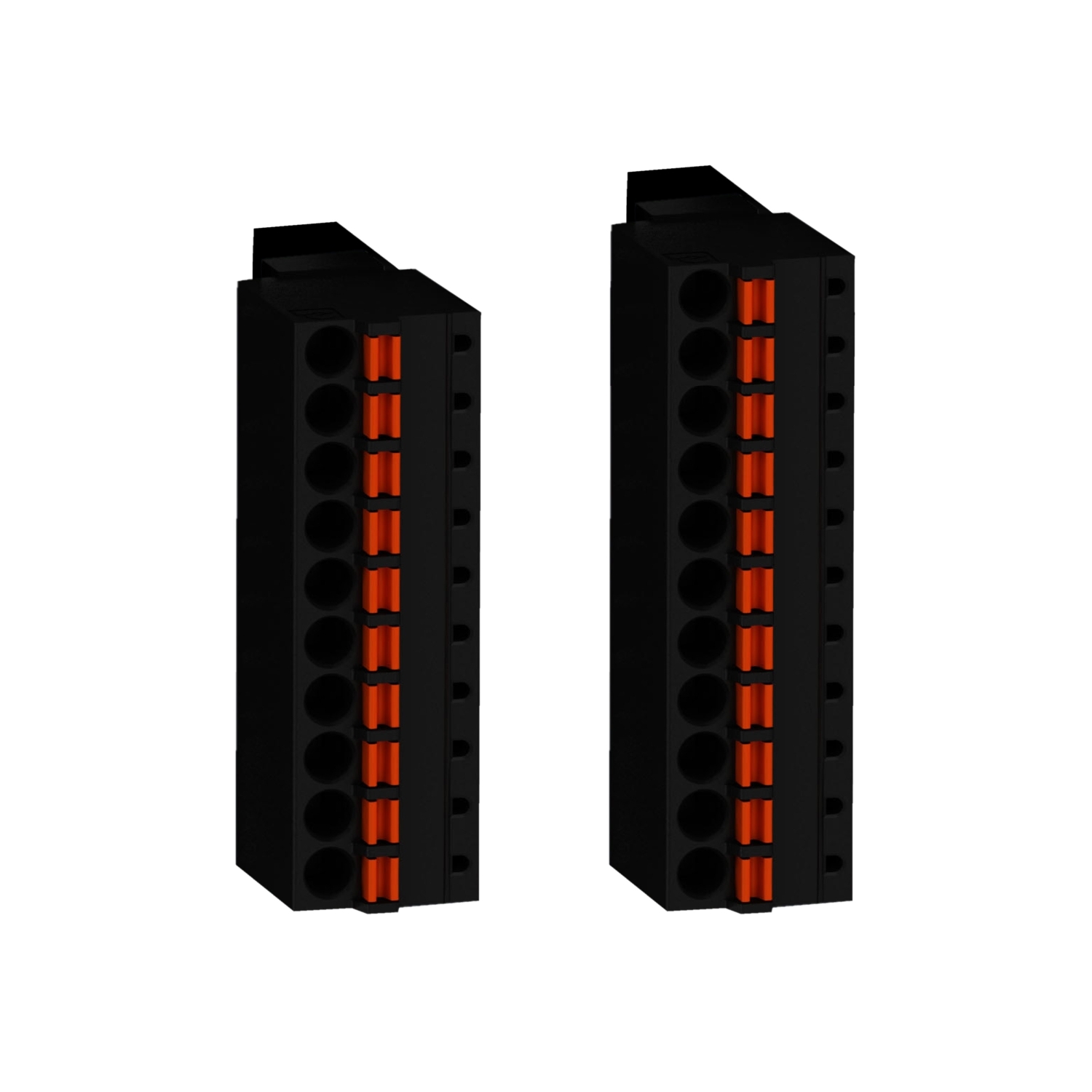

connector set for M221M and TM3 - IO Spring This connector set is proposed as a spare part available for Modicon M221 Book logic controllers and Modicon TM3 I/O expansion modules. It is used to connect the inputs/outputs of Modicon M221 Book logic controllers and Modicon TM3 I/O expansion modules. It is composed of 8 removable connectors with spring terminals used to equip a Modicon M221 Book logic controller and the digital I/O of Modicon TM3 I/O expansion modules. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part type | spring terminal block |
| Product or component type | terminal block |
| Accessory / separate part category | connection accessories |
| Complementary | |
| Accessory / separate part destination | Modicon M221, Modicon TM3 |
| Product compatibility | discrete I/O module, logic controller |
| Number of connectors | 8 terminal block connector(s) |
| Range compatibility | Modicon M221, Modicon TM3 |
| Net weight | 0.127 kg |
| Electrical connection | removable spring terminal block, 11 terminal(s)for inputs/outputs (pitch 3.81 mm), removable spring terminal block, 10 terminal(s)for inputs/outputs (pitch 3.81 mm) |
