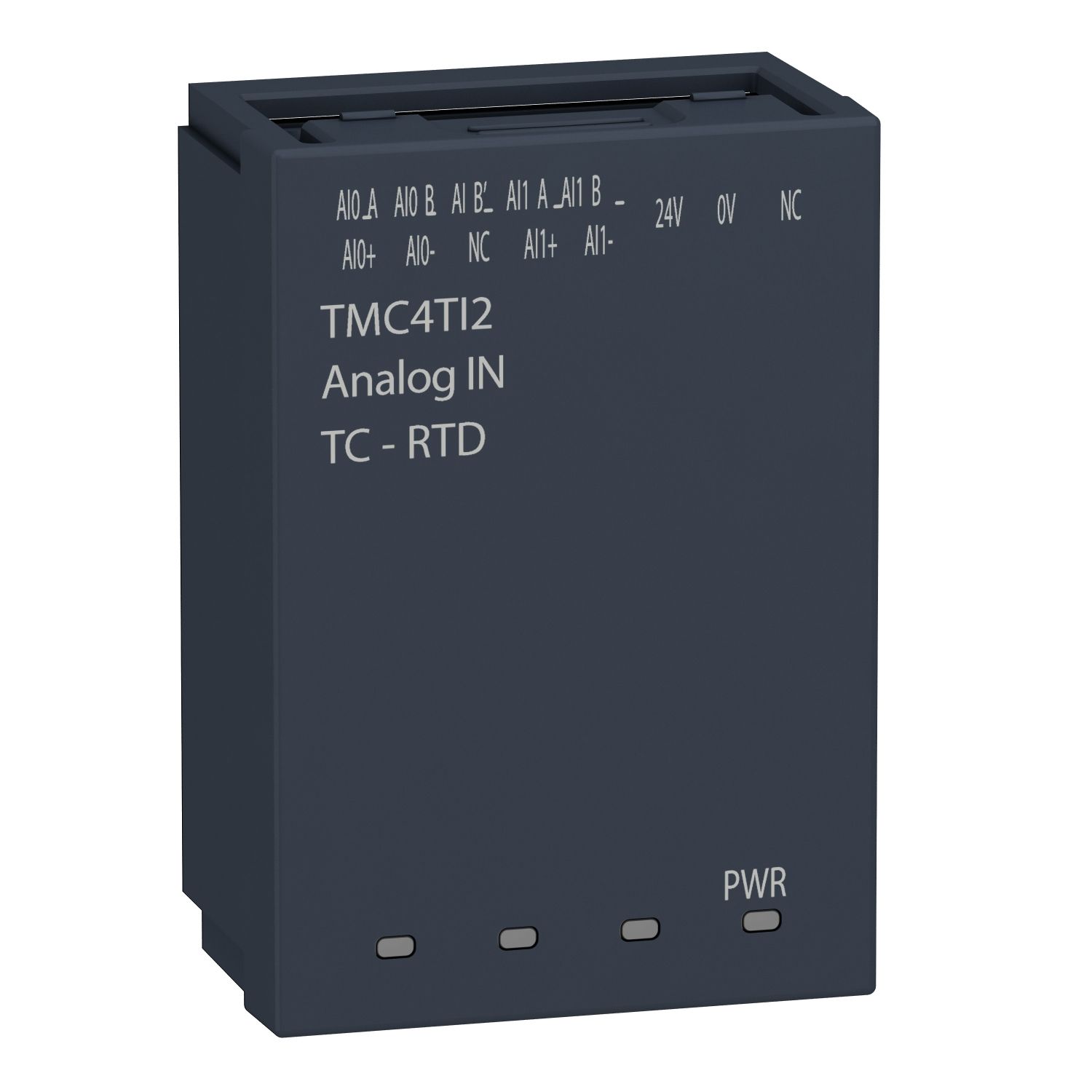

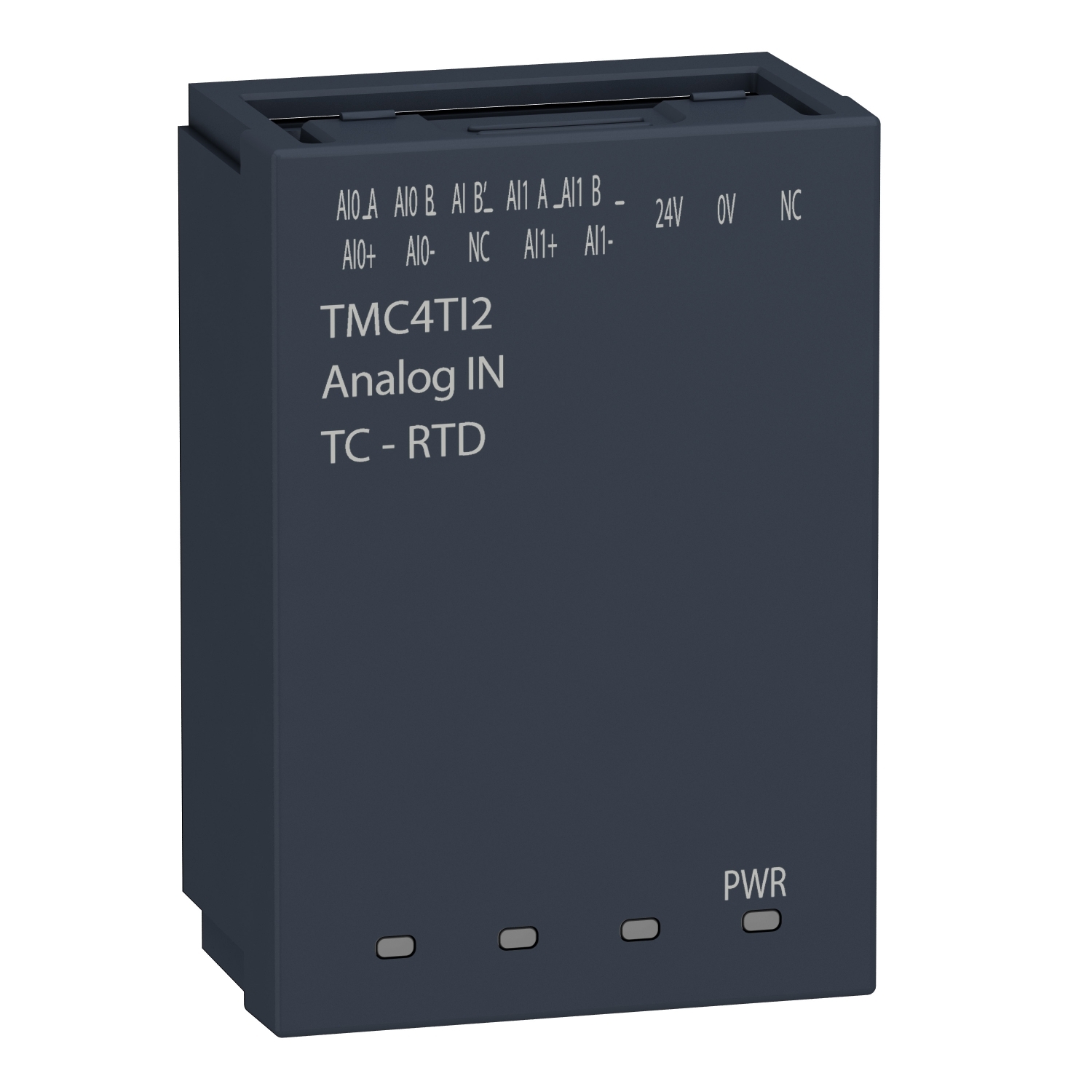

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 temperature inputs with 14bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | Modicon M241C |
| Analogue input number | 2 |
| Product or component type | analogue input cartridge |
| Range of product | Modicon M241 |
| Complementary | |
| Analogue input type | Ni 100/Ni 1000 temperature probe - 60...180 °C, thermocouple - 200...800 °C with thermocouple E, thermocouple - 200...1300 °C with thermocouple N, thermocouple - 200...400 °C with thermocouple T, thermocouple 0...1820 °C with thermocouple B, thermocouple 0...1760 °C with thermocouple S, thermocouple 0...1760 °C with thermocouple R, thermocouple - 200...1300 °C with thermocouple K, Pt 1000 temperature probe - 200...600 °C, Pt 100 temperature probe - 200...850 °C, thermocouple - 200...1000 °C with thermocouple J |
| Repeat accuracy | +/- 0.1 %FS |
| Sampling duration | 100 ms |
| Insulation | non-insulated between inputs, between input and internal logic at 500 V DC |
| Depth | 21 mm |
| Width | 34 mm |
| Cross talk | 80 dB |
| Local signalling | 1 LED (green) for PWR |
| Supply voltage limits | 20.4-28.8 V |
| Temperature drift | +/- 0.008 %FS/°C |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C for thermocouple R, S 0...1760°C, +/- 0.1 % of full scale at 25 °C for thermocouple B 400...1280 °C, +/- 0.2 % of full scale at 25 °C for thermocouple B 250...400 °C, +/- 0.2 % of full scale at 25 °C for thermocouple N - 200...1300 °C, +/- 0.2 % of full scale at 25 °C for thermocouple T - 200...400 °C, +/- 0.2 % of full scale at 25 °C for thermocouple E - 200...800 °C, +/- 0.2 % of full scale at 25 °C for thermocouple J - 200...1000 °C, +/- 0.2 % of full scale at 25 °C for thermocouple K - 200...1300 °C, +/- 0.5 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe |
| Type of cable | twisted shielded pairs cable |
| Net weight | 0.055 kg |
| Analogue input resolution | 14 bits |
| Permissible continuous overload | 6 V |
| LSB value | 0.1 °C |
| Non-linearity | +/- 0.05 %FS |
| Input impedance | >= 1 MOhm |
| Height | 50 mm |
| Maximum cable distance between devices | twisted shielded pairs cable: <30 m for input |
| Electrical connection | 1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for outputs and supply |
| Environment | |
| Immunity to microbreaks | 10 ms |
