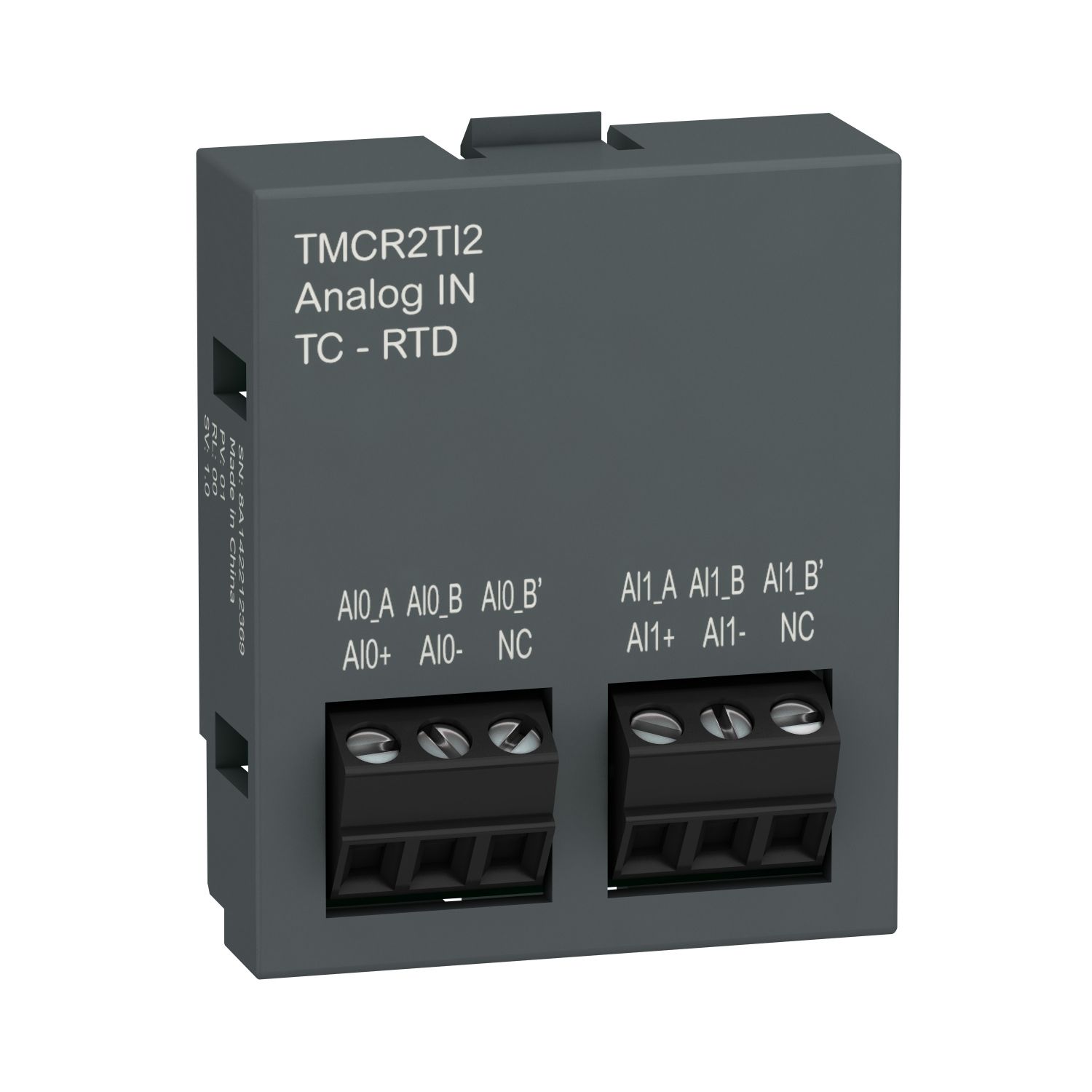

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides 2 additional temperature inputs to M200 controllers. This IO cartridge provides additional temperature inputs (14bits resolution) to the controller. Its sampling duration is 125ms for thermocouple input and 250ms for temperature probe input. The inputs are wired with twisted shielded pairs cable on the 2 screw terminal blocks of the cartridge. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.012kg. This optional cartridge provides 2 additional analog inputs to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | Easy Modicon M200 |
| Analogue input number | 2 |
| Product or component type | analogue input cartridge |
| Range of product | Easy Modicon M200 |
| Complementary | |
| Analogue input type | thermocouple 0...2315 °C with thermocouple C, thermocouple - 200...800 °C with thermocouple E, thermocouple - 200...1300 °C with thermocouple N, thermocouple - 200...400 °C with thermocouple T, thermocouple 0...1820 °C with thermocouple B, thermocouple 0...1760 °C with thermocouple S, thermocouple 0...1760 °C with thermocouple R, thermocouple - 200...1300 °C with thermocouple K, Pt 1000 temperature probe - 200...600 °C, Pt 100 temperature probe - 200...850 °C, Ni 100/Ni 1000 temperature probe - 60...180 °C, thermocouple - 200...1000 °C with thermocouple J |
| Repeat accuracy | +/- 0.5 %FS |
| Sampling duration | 250 ms, analogue input type: temperature probe, 125 ms, analogue input type: thermocouple |
| Insulation | non-insulated between analogue input and internal logic |
| Depth | 15 mm |
| Width | 35 mm |
| Cross talk | <= 1 LSB |
| Temperature drift | +/- 0.02 %FS/°C |
| Absolute accuracy error | +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C, +/- 0.1 % of full scale for thermocouple C, +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C, +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe |
| Type of cable | twisted shielded pairs cable |
| Net weight | 0.012 kg |
| Analogue input resolution | 14 bits |
| LSB value | 0.1 °C |
| Non-linearity | +/- 0.01 %FS |
| Input impedance | >= 1 MOhm |
| Height | 41 mm |
| Maximum cable distance between devices | twisted shielded pairs cable: <30 m for input |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs |
| Environment | |
| Immunity to microbreaks | 10 ms |
