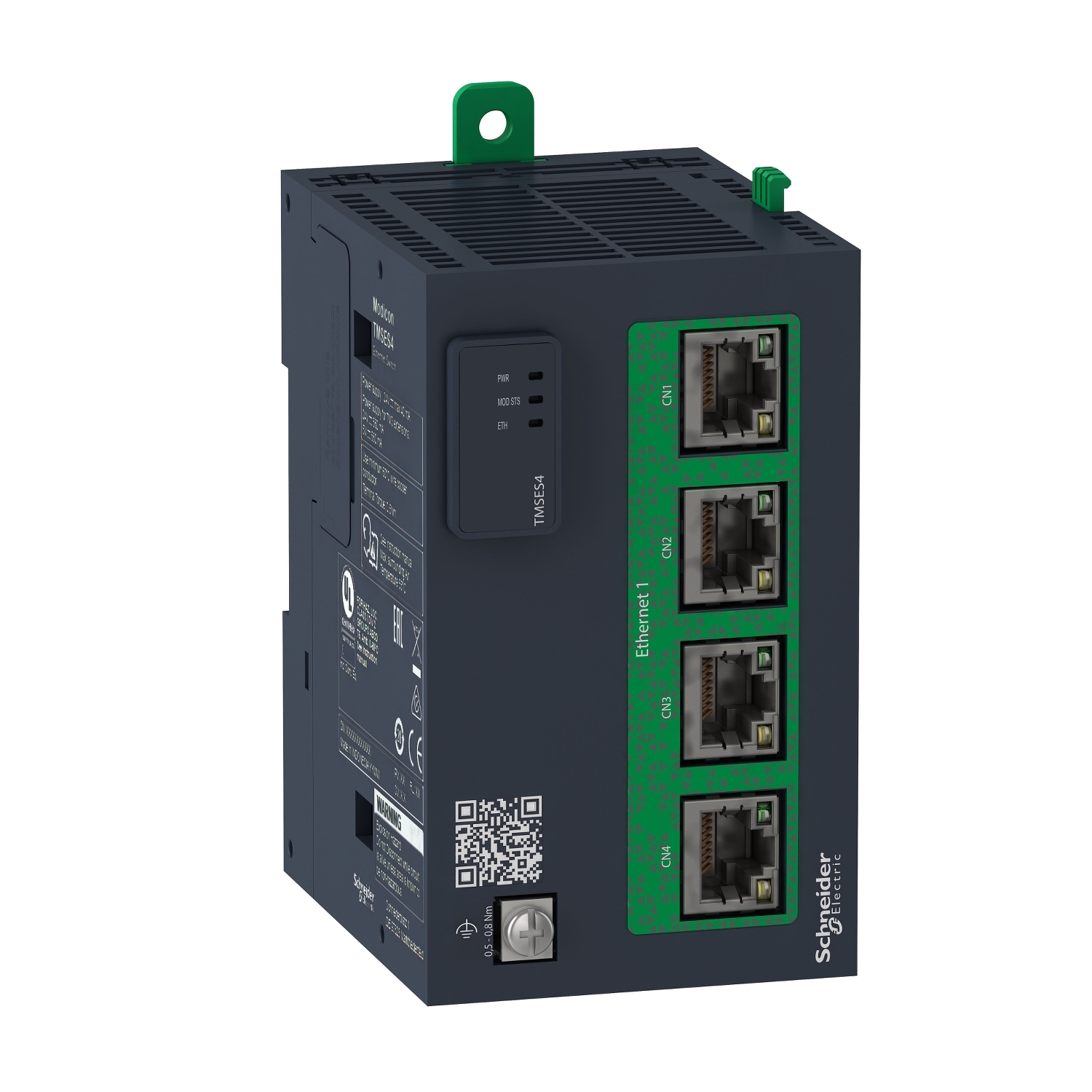

This smart communication module for Modicon M262 motion controllers is designed to provide 4 additional Ethernet accesses to the controllers. TMSES4 benefits from cloud apps, analytics, allows connection to other Schneider/third-party cloud platforms with MQTT/HTTP protocols, JSON, TLS encryption. It embeds 4 Ethernet based networks (Ethernet/IP adapter, DHCP client, IEC VAR ACCESS, Modbus TCP server, SNMP, FTP client/server, SQL client, Web server. Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. TMS4 smart communication module figures self speed adaptation (10, 100, 1000mbps), Half or full duplex service, and autocrossing (MDIO). It is possible to connect up to three Ethernet smart communication modules on a motion controller, the power supply is embedded on the communication bus. It measures 60mm width, 88mm depth, and 100mm height. It weighs 0.403kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This smart communication module is compatible with Modicon M262 logic/motion controllers. It is configured by EcoStruxure Machine Expert software. TMSES4 smart communication module installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon M262 |
| Product or component type | smart communication module |
| Complementary | |
| Web services | web server |
| Communication service | TLS, SNTP, MQTT, DNS client, OPC UA server, web server, send and receive email from the controller based on TCP/UDP library, SQL client, FTP client/server, SNMP client/server, Modbus TCP server, IEC VAR ACCESS, DHCP client, Ethernet/IP adapter |
| Height | 100 mm |
| Services | autocrossing (MDIO), half or full duplex, self speed adaptation (10-100-1000 Mbits) |
| Depth | 88.3 mm |
| Number of module per PLC | 1 maximum per motion controller, 1 maximum per logic controller |
| Width | 60 mm |
| Range compatibility | Modicon M262 |
| Local signalling | 1 LED for ETH, 1 LED for MOD STS, 1 LED (green) for PWR |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Communication port protocol | Ethernet |
| Current consumption | 200 mA at 24 V |
| Port Ethernet | 10/100/1000 BASE-TX - 4 port(s) RJ45 |
| Environment | |
| Resistance to fast transients | 1 kV (transistor output) conforming to IEC 61000-4-4, 1 kV (input) conforming to IEC 61000-4-4, 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2 |
| IP degree of protection | IP20 |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 |
| Standards | -, IEC 61131-2, ANSI/ISA 12-12-01, CSA C22.2 No 213, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1, UL 61010-2-201, UL 61010-1 |
| Ambient air temperature for operation | -20-50 °C vertical installation, -20-60 °C horizontal installation |
| Resistance to electromagnetic fields | 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Resistance to conducted disturbances | 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-4 |
| Electromagnetic emission | radiated emissions - test level: 47 dBµV/m A at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 40 dBµV/m A at 30-230 kHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 1 gn at 8.4-200 Hz on panel mounting, 3.5 mm at 2-8.4 Hz on panel mounting, 1 gn at 8.4-200 Hz on symmetrical rail, 3.5 mm at 2-8.4 Hz on symmetrical rail |
| Shock resistance | 15 gn for 11 ms |
| Storage altitude | 0-3000 m |
| Product certifications | Achilles, EAC (pending), RCM, cULus, CE |
