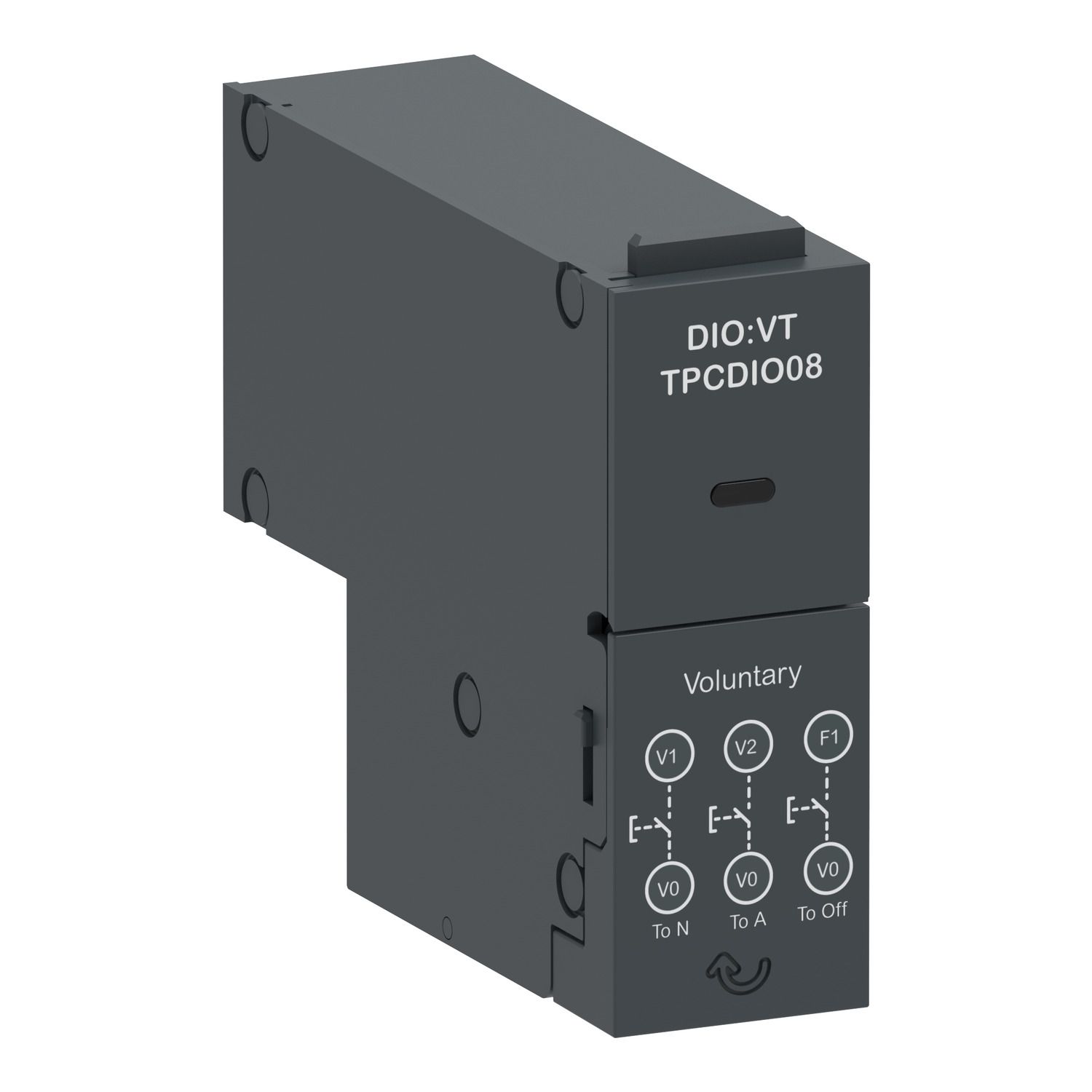

function module, TransferPacT, voluntary remote control, input signal

Manufacturer: Schneider Electric

SKU: TPCDIO08

GTIN: 3606481066008

User guide

Environmental Disclosure

Instruction sheet

Circularity Profile

Declaration of conformity

Old price: $136.84 inc GST

Price: $87.58 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TPCDIO08 is input module as signalling accessory. This functional module has 3 dry contact input for voluntary transfer (remote control) to either source or force to off. The voluntary transfer signal can transfer the ATSE to Normal or alternate source according to requirements. It will be bypassed if target source loses power. The force to off signal can transfer ATSE to off position.

Products specifications

Attribute name	Attribute value
Main
Device application	signalling
Product or component type	Dry contact, I/O module
Range of product	TransferPacT
Complementary
[Ui] rated insulation voltage	30 V DC
Depth	69 mm
Width	20 mm
Mounting position	left-bottom
Mounting mode	plug-in
Accessory / separate part category	signalling accessory
Net weight	40 g
Input current	5 mA
Auxiliary connection terminal	screw clamp terminal 0.05-2.6 mm²
Tightening torque	0.6 N.m +/- 0.1 N.m
Auxiliary contact composition	3 NO
Height	56.5 mm
Signalling function	force to off position, Voluntary to N source/Voluntary to A source
Environment
IP degree of protection	IP20
Pollution degree	3
