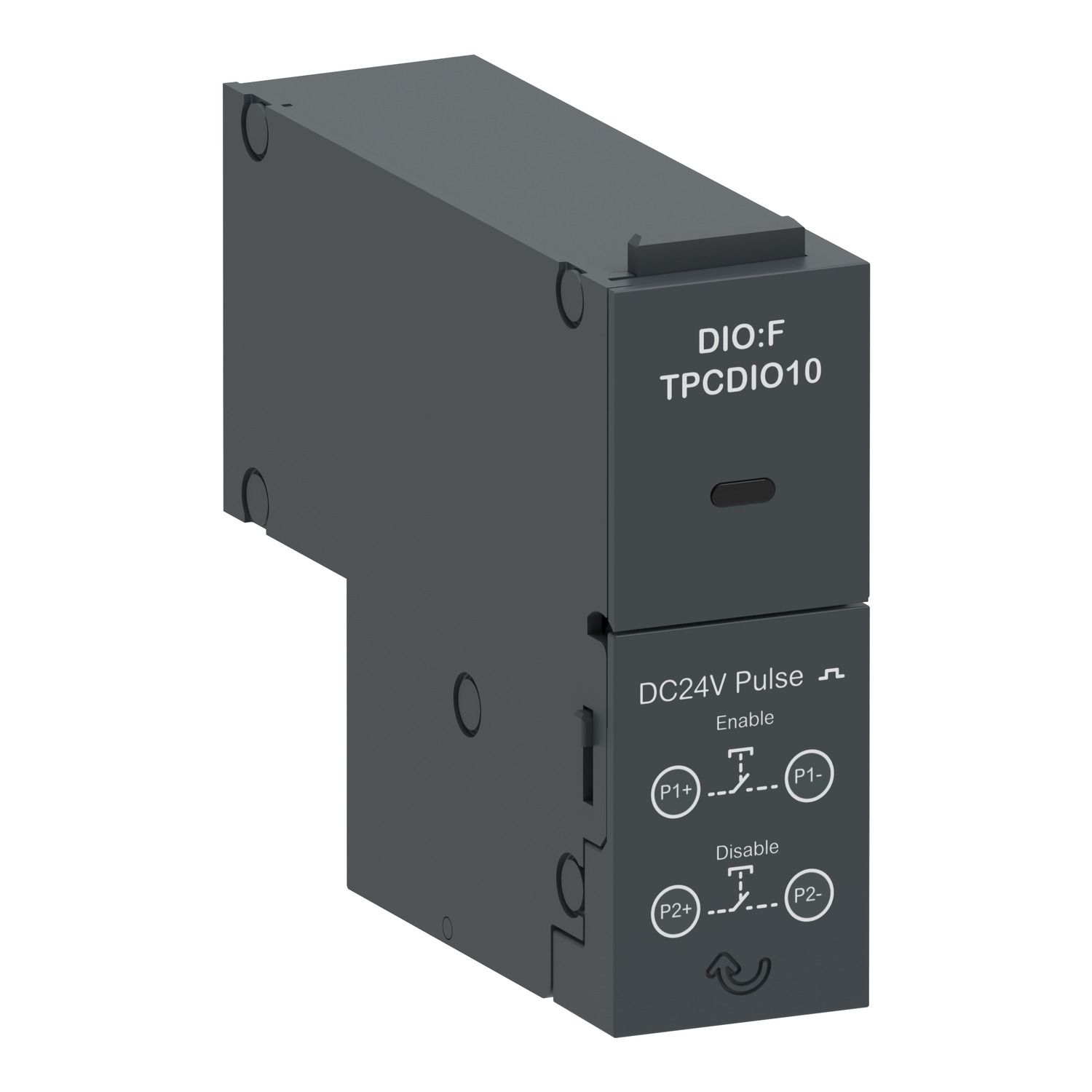

TPCDIO10 is input module as signalling accessory. It is provided 24VDC pulse signal for fire protection,with maximum input current 10mA. The fire protection signal can transfer ATSE to off position when there is fire emergency and protect power continuity for critical loads as well.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | signalling |
| Product or component type | I/O module |
| Range of product | TransferPacT |
| Complementary | |
| [Ui] rated insulation voltage | 30 V DC |
| Depth | 69 mm |
| Width | 20 mm |
| Mounting position | left-bottom |
| Mounting mode | plug-in |
| Accessory / separate part category | signalling accessory |
| Net weight | 40 g |
| Auxiliary connection terminal | screw clamp terminal 0.05-2.6 mm² |
| Input current | 10 mA 24 V DC +/- 20 % |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Auxiliary contact composition | 2 NO |
| Height | 56.5 mm |
| Signalling function | fire protection (transfer to off position) |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
