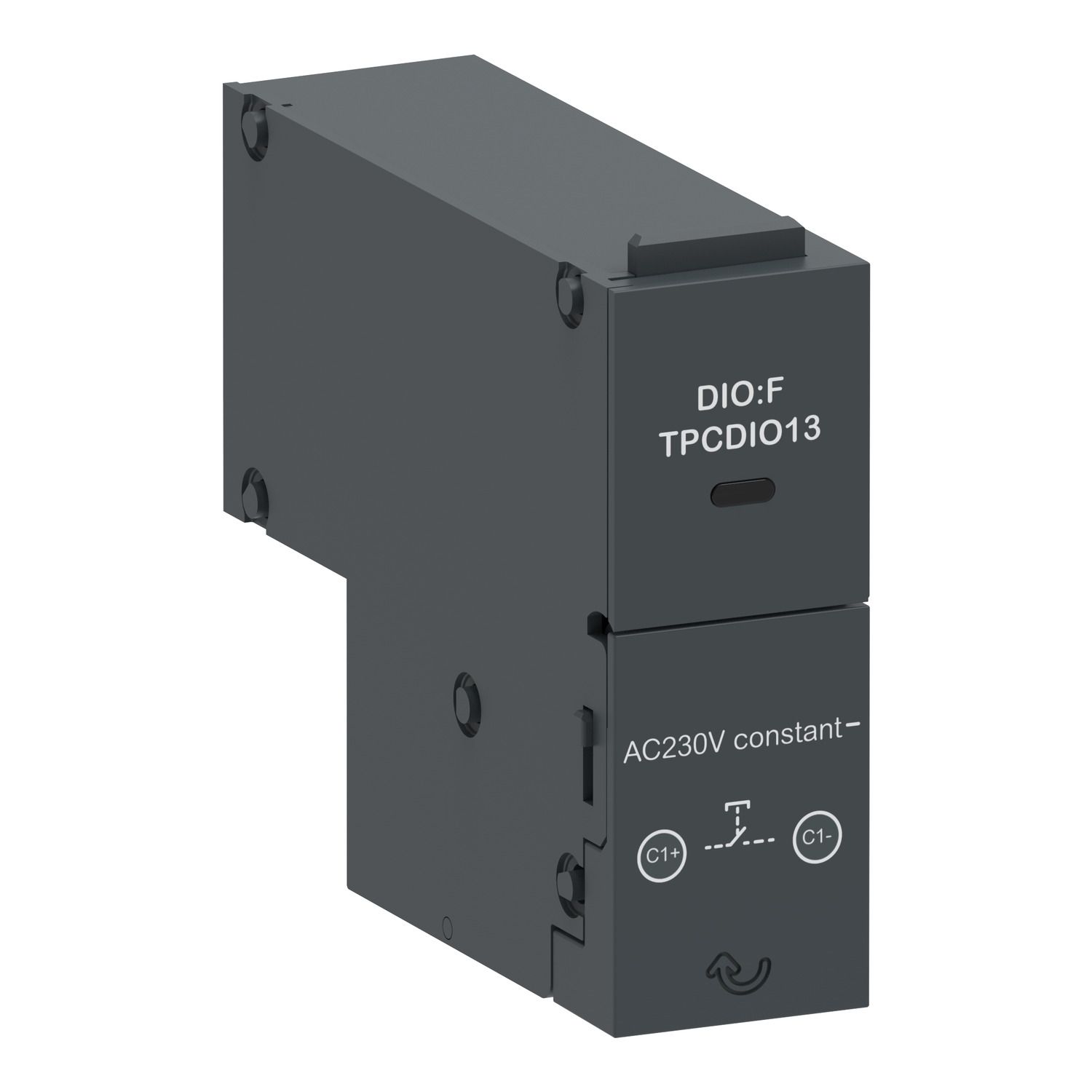

TPCDIO13 is input module as signalling accessory. It is provided 230VAC @50/60Hz with maximum input current 10mA,constant signal for fire protection The fire protection signal can transfer ATSE to off position when there is fire emergency and protect power continuity for crtical loads as well.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | signalling |
| Product or component type | I/O module |
| Range of product | TransferPacT |
| Complementary | |
| [Ui] rated insulation voltage | 300 V AC |
| Depth | 69 mm |
| Width | 20 mm |
| Mounting position | left-bottom |
| Mounting mode | plug-in |
| Accessory / separate part category | signalling accessory |
| Net weight | 40 g |
| Auxiliary connection terminal | screw clamp terminal 0.05-2.6 mm² |
| Input current | 10 mA 230 V AC +/- 20 % |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Auxiliary contact composition | 1 NO |
| Height | 56.5 mm |
| Signalling function | fire protection (transfer to off position) |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
Only registered users can write reviews
Related products
active automatic transfer switch, TransferPacT Active automatic, 100A, 2P, LCD, frame 100A
TA10D2L1003TPE
active automatic transfer switch, TransferPacT Active automatic, 100A, 2P, LCD, frame 100A
$2,974.40 inc GST
$1,903.62 inc GST
active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 100A
TA10D4L1004TPE
active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 100A
$3,546.40 inc GST
$2,269.70 inc GST
active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 160A
TA16D4L1004TPE
active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 160A
$4,633.20 inc GST
$2,965.25 inc GST

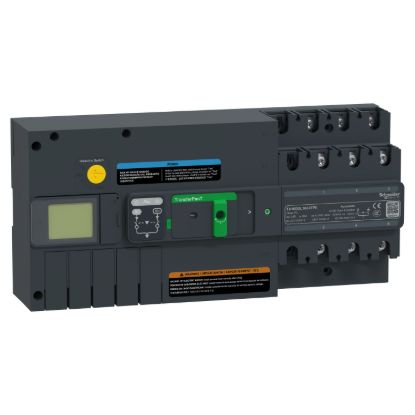

active automatic transfer switch, TransferPacT Active automatic, 160A, 3P, LCD, frame 160A
TA16D3L1604TPE
active automatic transfer switch, TransferPacT Active automatic, 160A, 3P, LCD, frame 160A
$4,690.40 inc GST
$3,001.86 inc GST
active automatic transfer switch, TransferPacT Active automatic, 160A, 4P, LCD, frame 160A
TA16D4L1604TPE
active automatic transfer switch, TransferPacT Active automatic, 160A, 4P, LCD, frame 160A
$5,148.00 inc GST
$3,294.72 inc GST

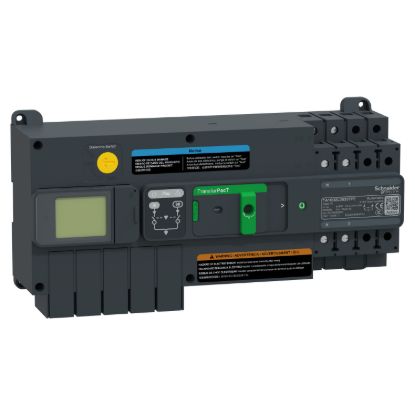

active automatic transfer switch, TransferPacT Active automatic, 63A, 2P, LCD, frame 100A
