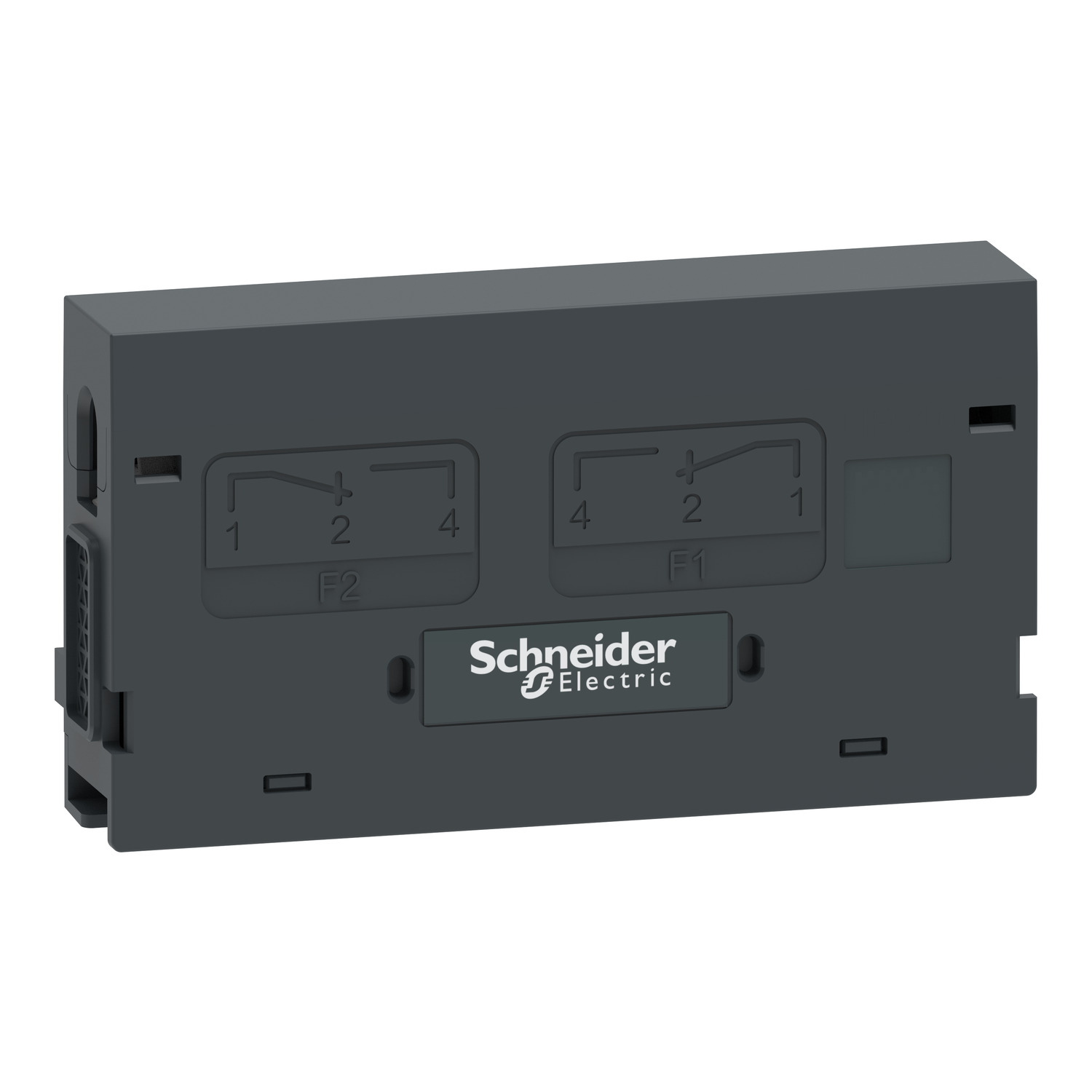

TPSAUX32 is auxilary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on source 1 or source 2 for TransferPacT transfer switch. This contact compostion of signalling is 2NC+2NO. The rated operational current(Ie) is provided 2A@250VAC. It is mounted mode "clip-on" side by side on the right of transfer switch. This wiring capacity is 0.75-2.5 mm²(18-14 AWG) with PZ2 screw driver.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | signalling |
| Product or component type | Auxiliary Contact Module |
| Range of product | TransferPacT |
| Complementary | |
| Depth | 49.5 mm |
| Width | 17.5 mm |
| Mounting position | right-angled |
| [Ie] rated operational current | 2 A at 250 V AC |
| Mounting mode | clip-on |
| Accessory / separate part category | signalling accessory |
| Net weight | 60 g |
| Auxiliary connection terminal | screw clamp terminal |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Auxiliary contact composition | 2 NO + 2 NC |
| Height | 90 mm |
| Signalling function | switch position (SI and SII) |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
Only registered users can write reviews
Related products
active automatic transfer switch, TransferPacT Active automatic, 100A, 2P, LCD, frame 100A
TA10D2L1003TPE
active automatic transfer switch, TransferPacT Active automatic, 100A, 2P, LCD, frame 100A
$2,974.40 inc GST
$1,903.62 inc GST
active automatic transfer switch, TransferPacT Active automatic, 100A, 3P, LCD, frame 100A
TA10D3L1004TPE
active automatic transfer switch, TransferPacT Active automatic, 100A, 3P, LCD, frame 100A
$3,203.20 inc GST
$2,050.05 inc GST

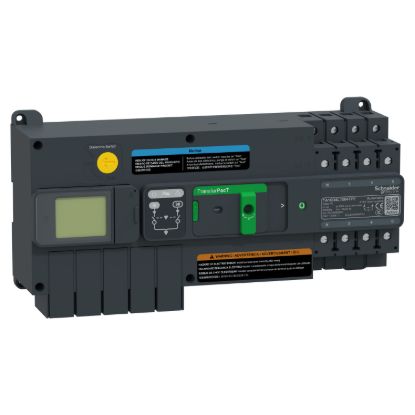

active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 100A
TA10D4L1004TPE
active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 100A
$3,546.40 inc GST
$2,269.70 inc GST

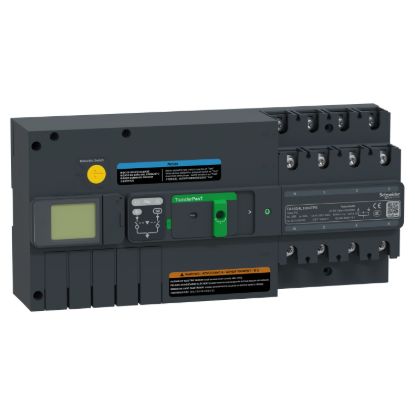

active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 160A
