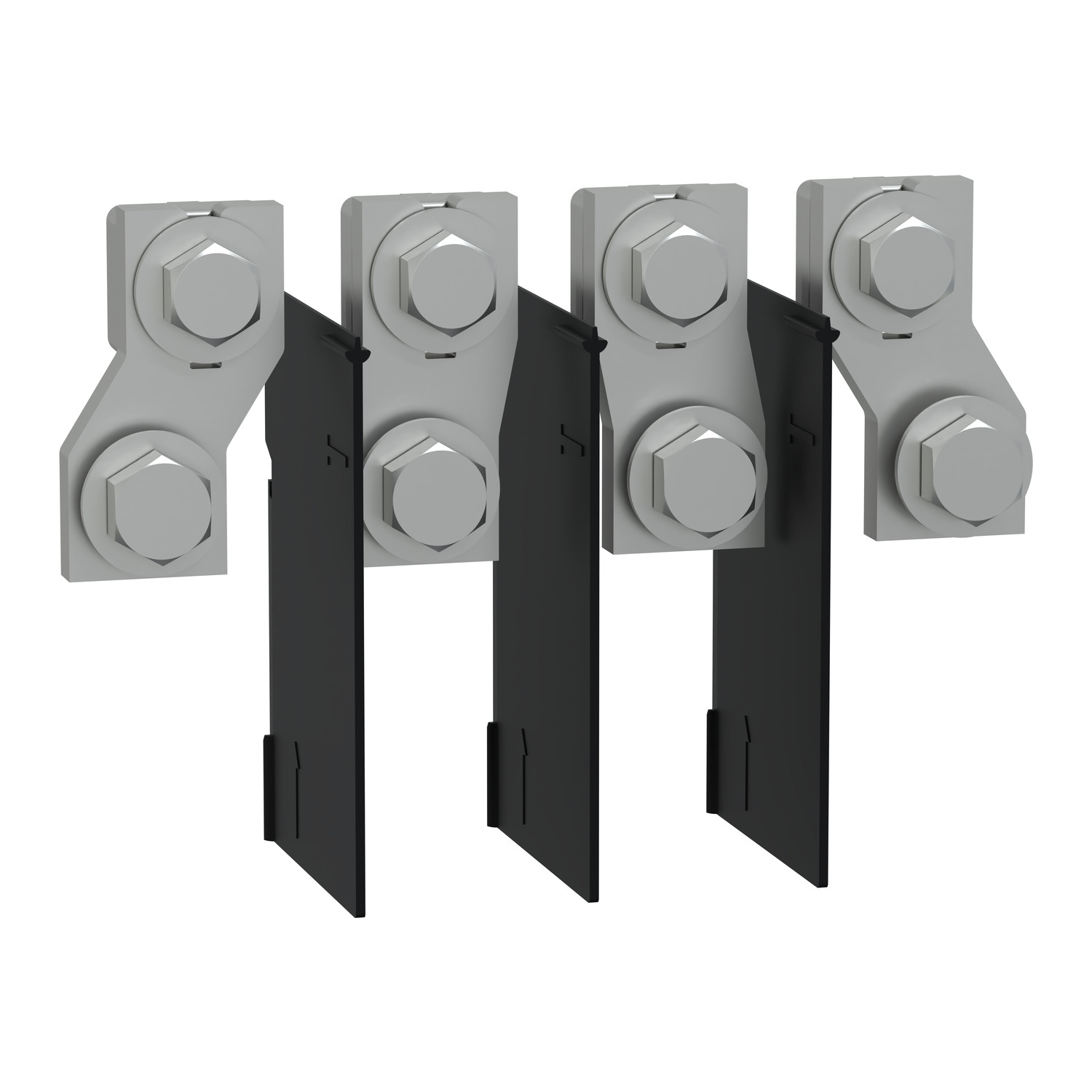

TPSCON68 is set of spreaders with interphase barriers, used for 4 poles TransferPacT switches. The accessories are fitted with 630A frame transer switch. They can be connected to load side only. The connection pitch is extend to 52.5mm between phases.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting position | straight |
| Quantity per set | 4 |
| Poles description | 4P |
| Product or component type | spreader |
| Accessory / separate part category | connection accessories |
| Range compatibility | TransferPacT |
| Range of product | TransferPacT |
| Complementary | |
| Product compatibility | TR63, TA63 |
| Mounting mode | fixed |
| [In] rated current | 630-630 A |
| Connections - terminals | 1 cable(s) |
| Load current | 320-630 A |
| Connection pitch | 52.5 mm |
